System Diagram

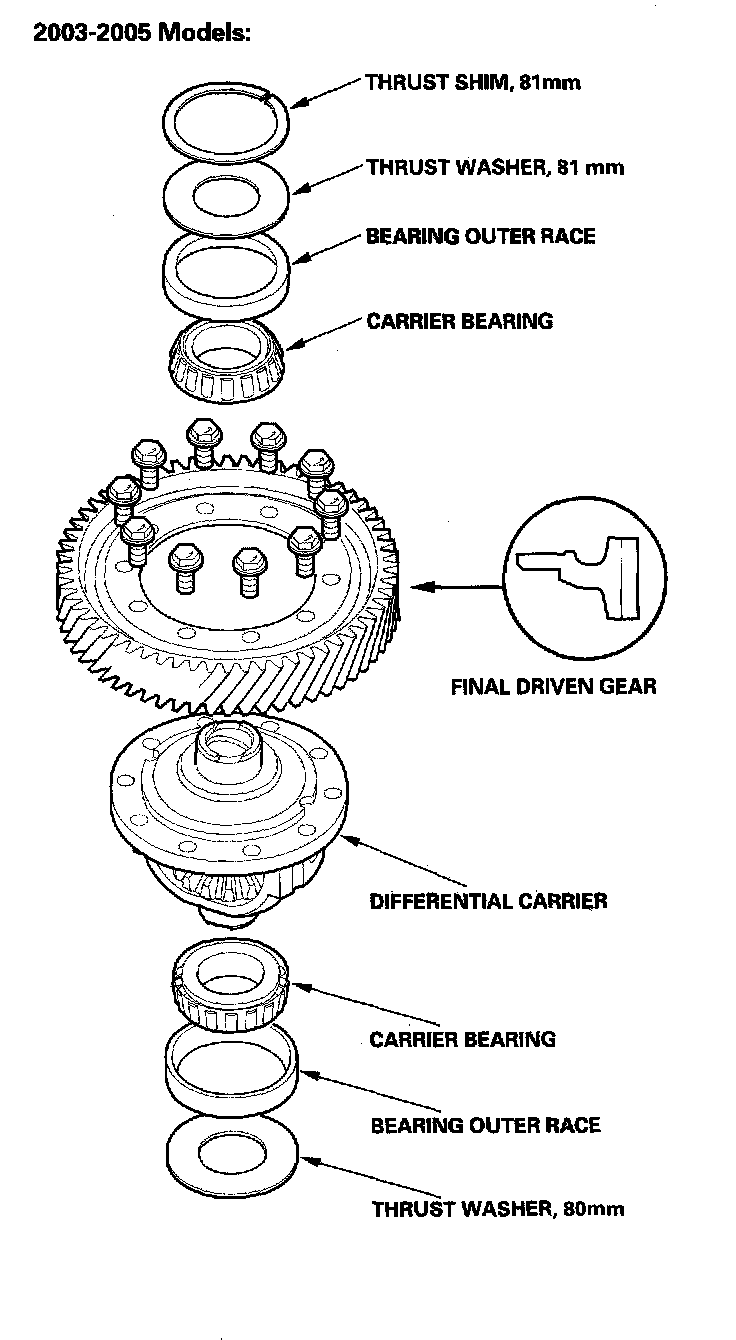

A/T Differential Component Location Index 2003-2005 Model:

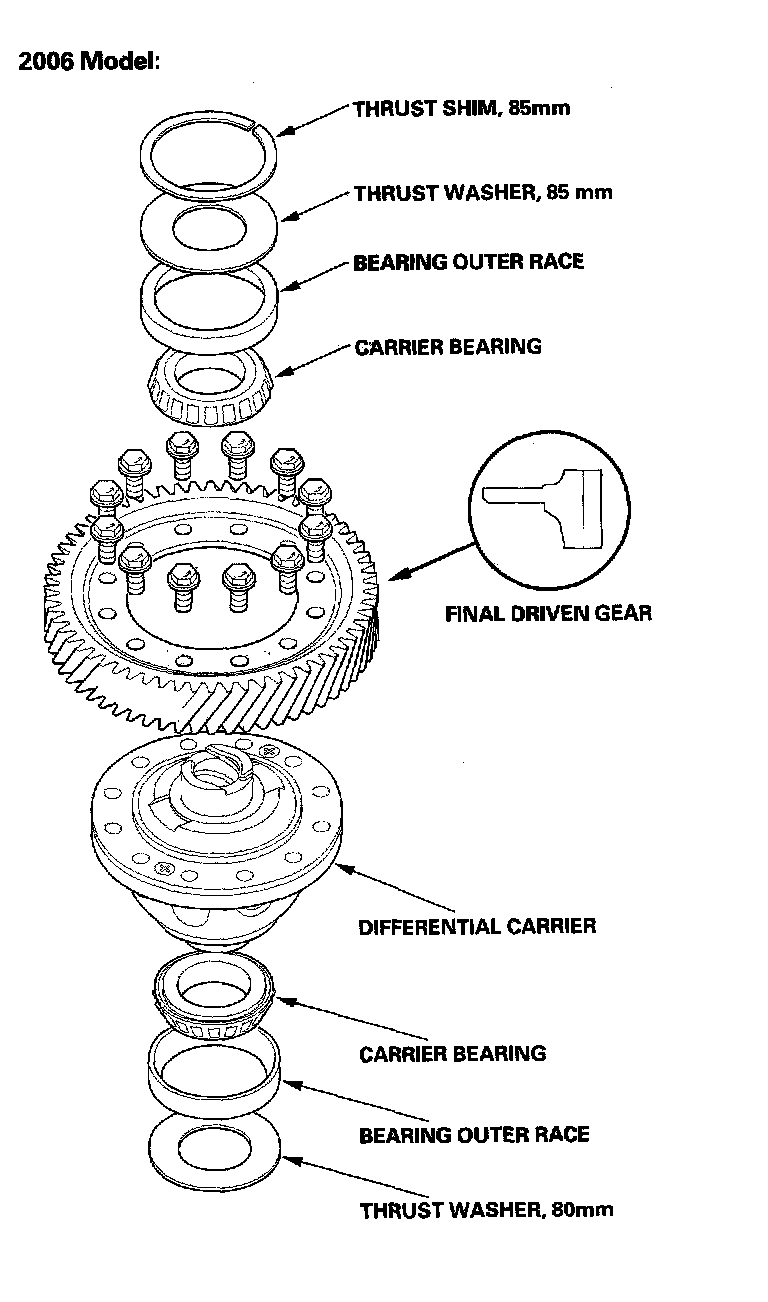

A/T Differential Component Location Index 2006 Model:
