Information Bus: Locations

148. Driver's Door (2-door):

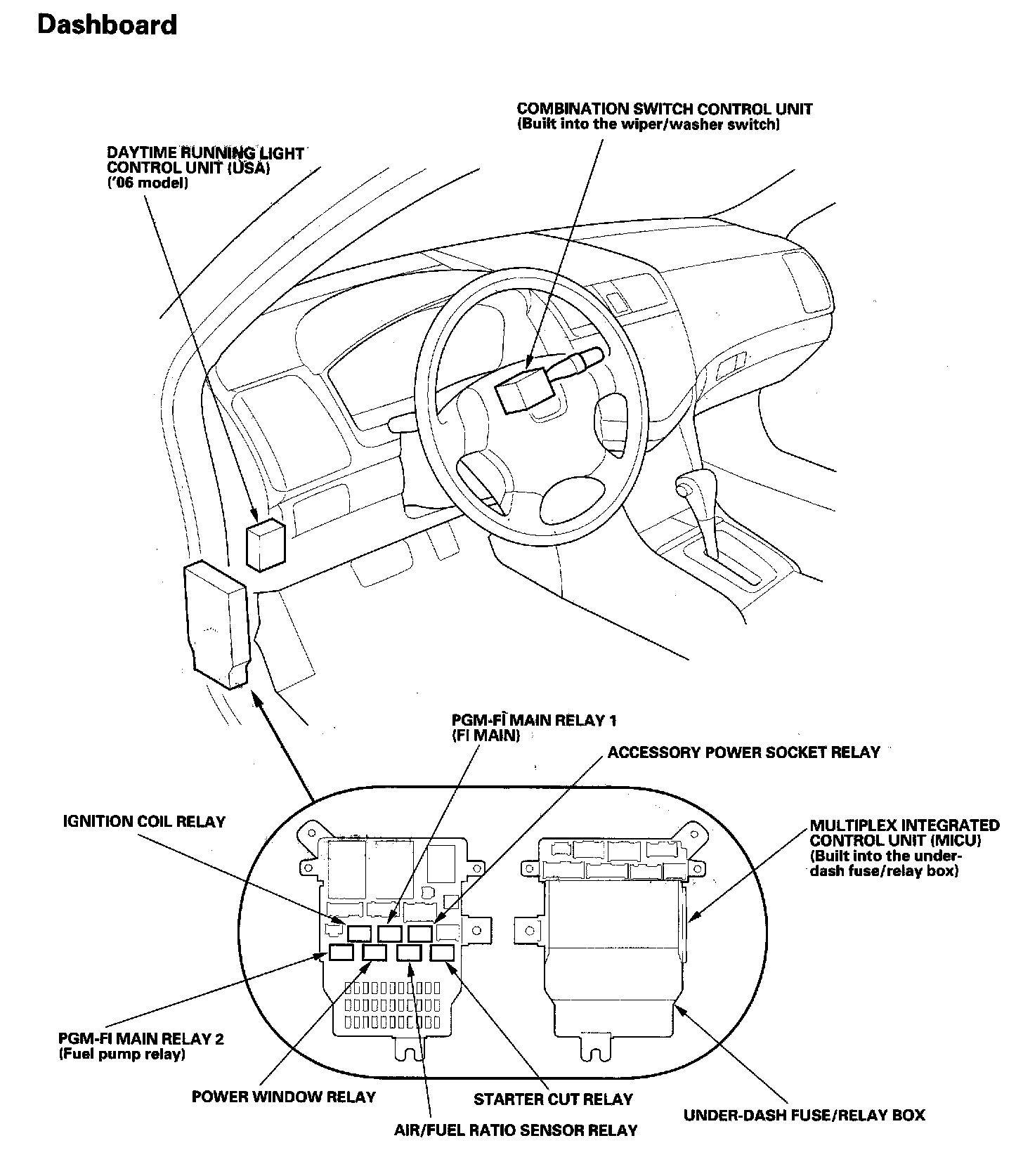

Relays And Control Unit Locations - Dashboard:

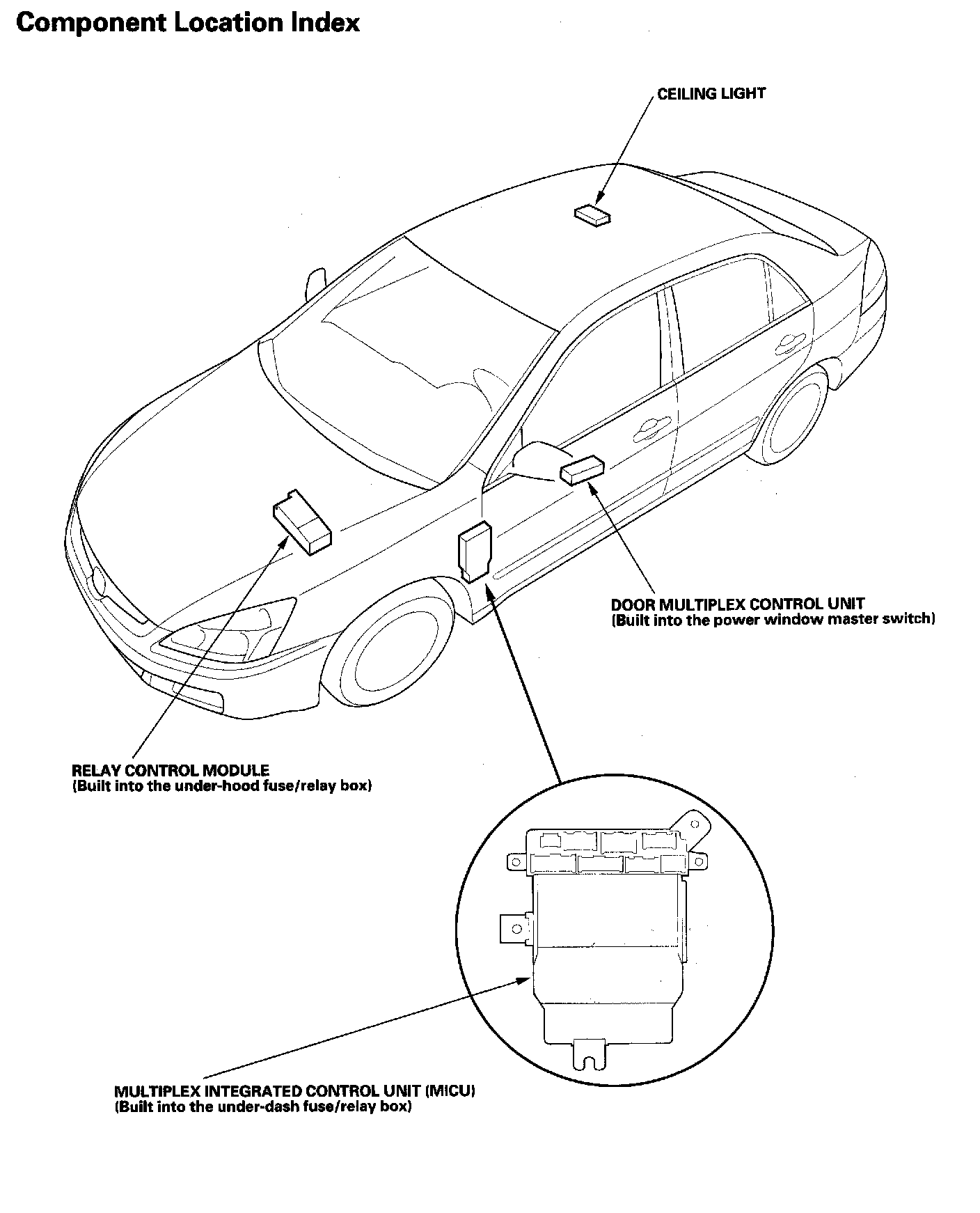

Multiplex Integrated Control System (MICS) - Component Location Index:



Multiplex Integrated Control System (MICS) - Component Location Index:
