Radiator Cooling Fan Control Module Relay: Locations

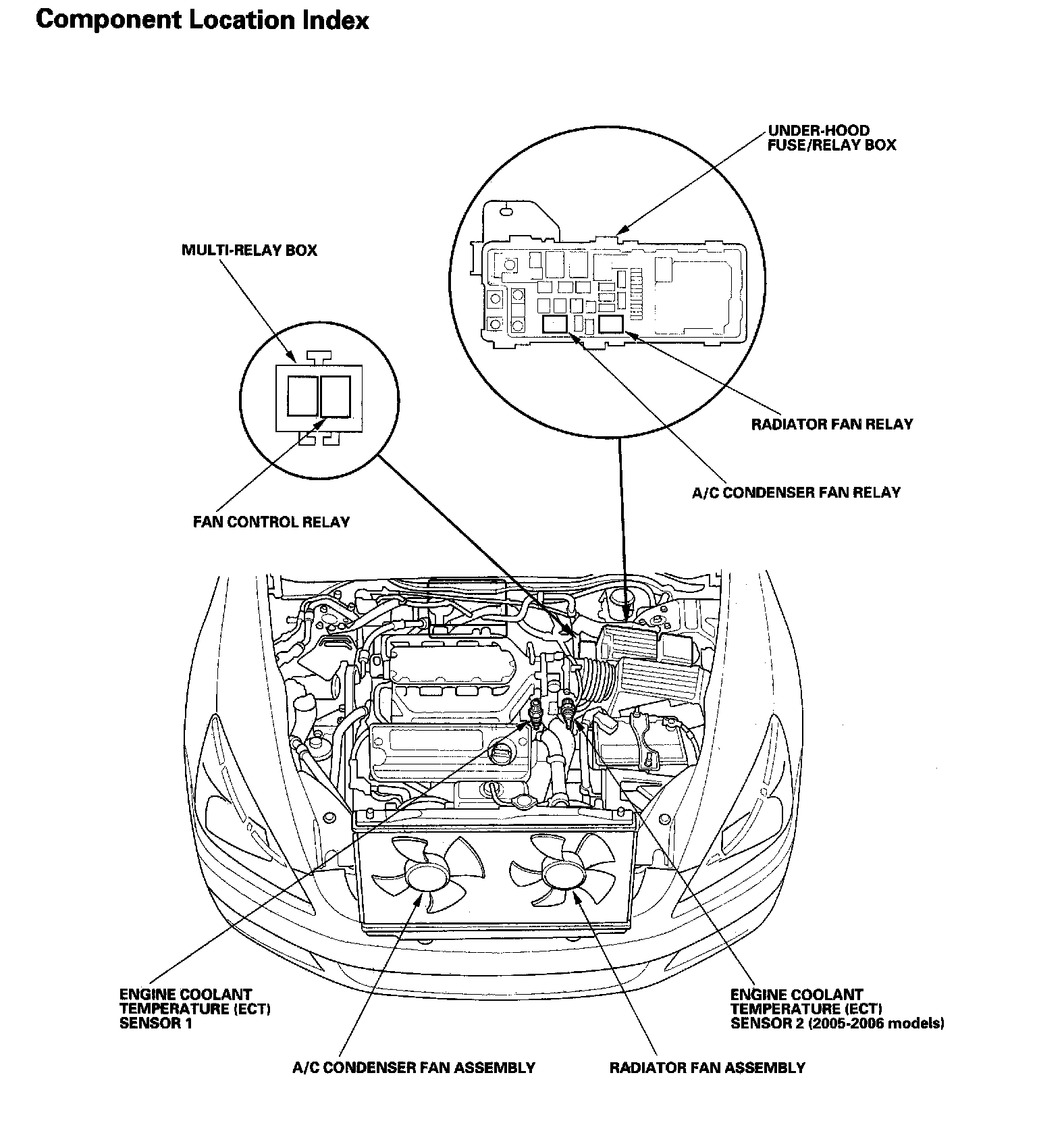

Fan Controls Component Location Index:

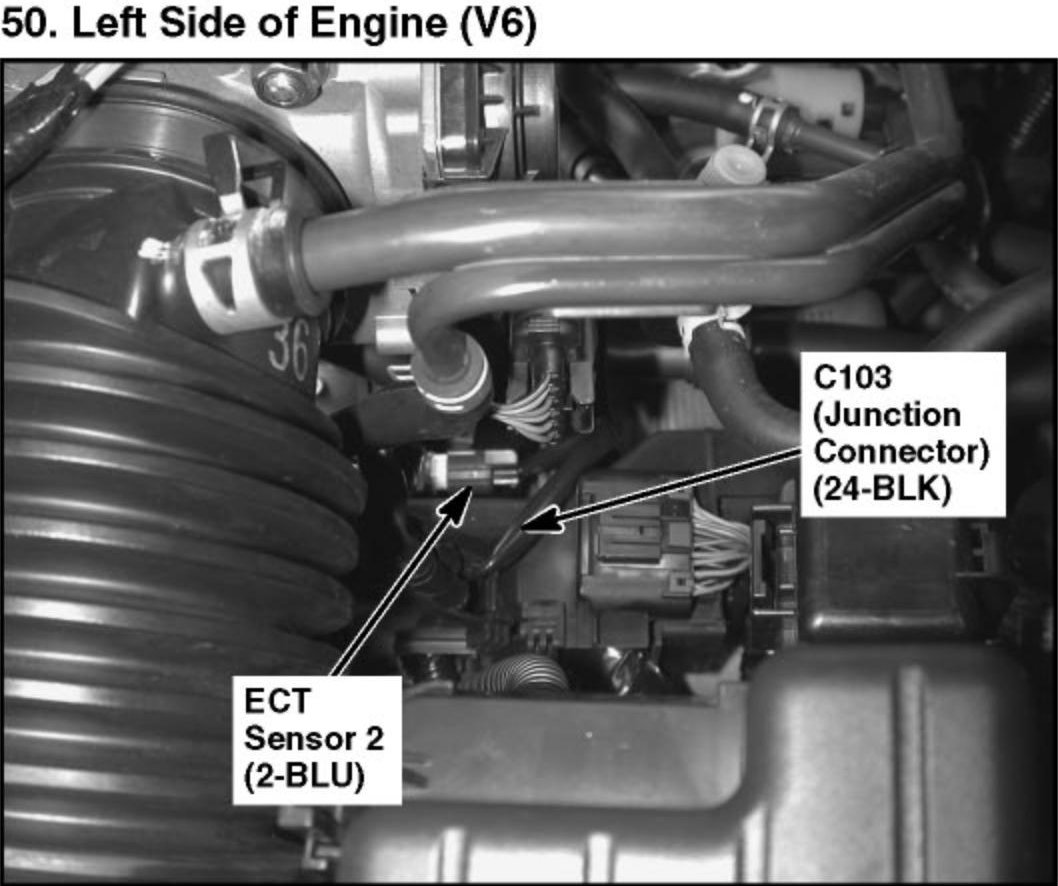

50. Left Side of Engine (V6):

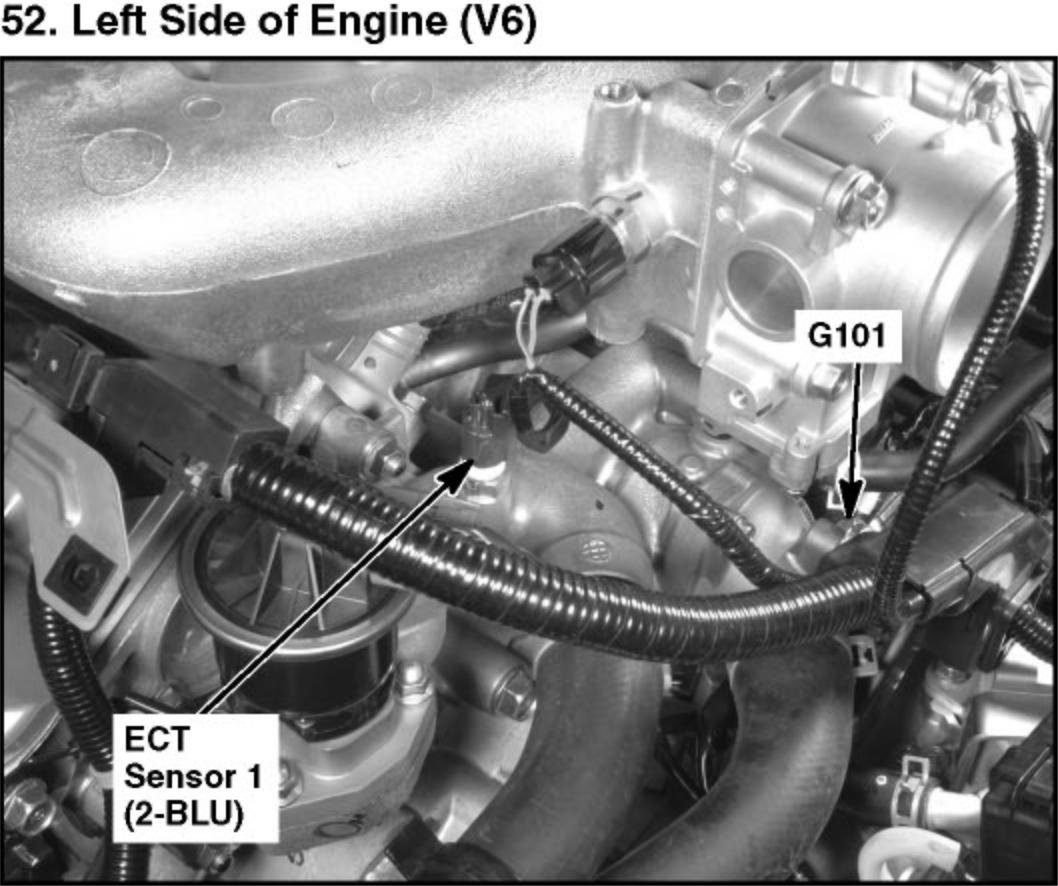

52. Left Side Of Engine (V6):
