Oil Pressure Switch Replacement

  1. Disconnect the oil pressure switch connector, then remove the oil pressure switch.

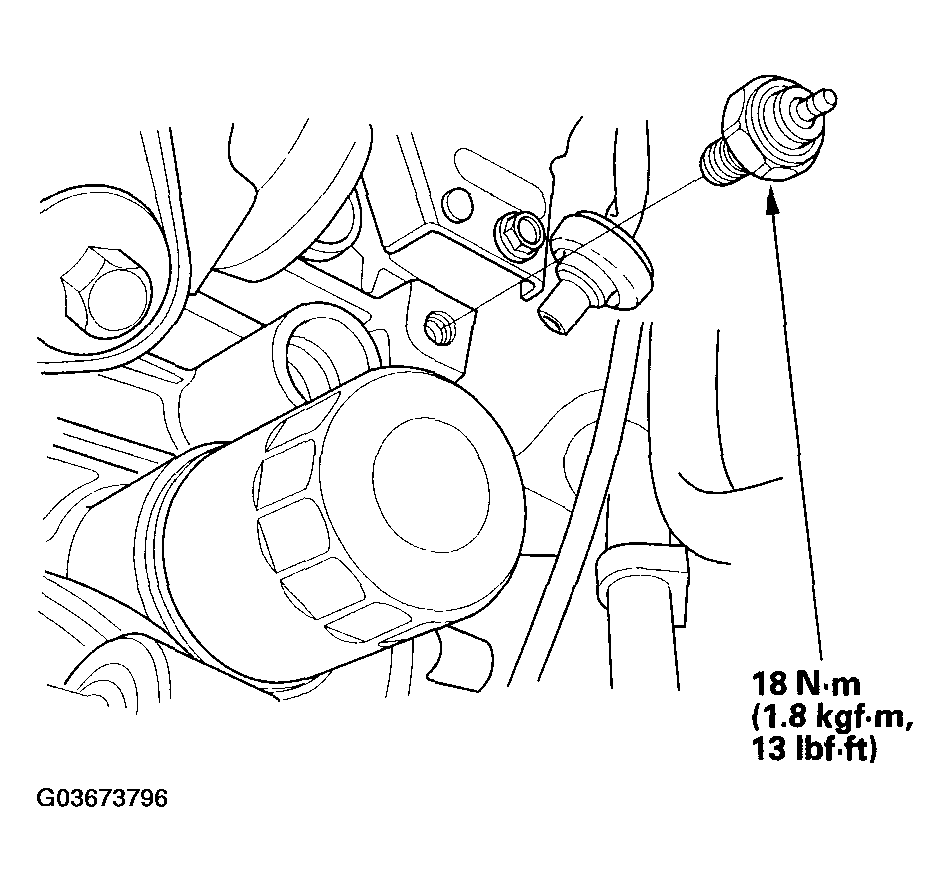

    Fig 1: Removing Oil Pressure Switch With Torque Specifications
    G03673796Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Apply liquid gasket to the oil pressure switch threads, then install the oil pressure switch.
    NOTE: Using too much liquid gasket may cause liquid gasket to enter the oil passage or the end of the new oil pressure switch.
