DTC P0721: Problem in Countershaft Speed Sensor Circuit
>>
Notes
April 5, 2026:
LEMON Manuals is launched!
Read the announcement.
DTC P0721: Problem in Countershaft Speed Sensor Circuit: Notes

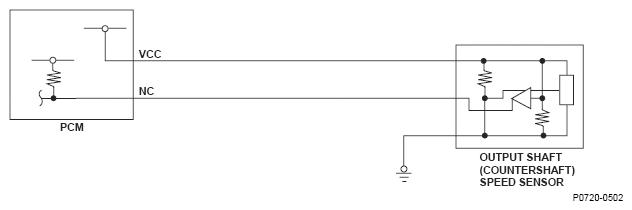

Fig 1: Countershaft Speed Sensor Circuit - Wiring Diagram

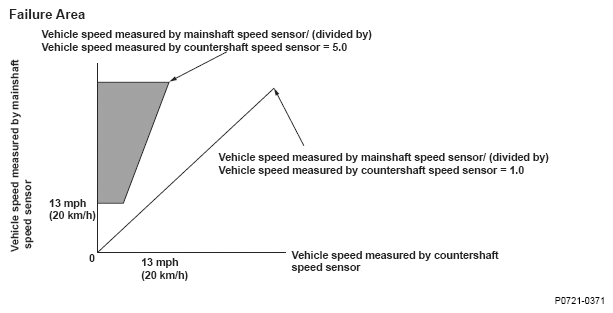

Fig 2: Countershaft Speed Sensor Failure Area - Graph
