Shift Lock Solenoid Replacement

  1. Remove the shift lever assembly (see SHIFT LEVER REMOVAL  ).

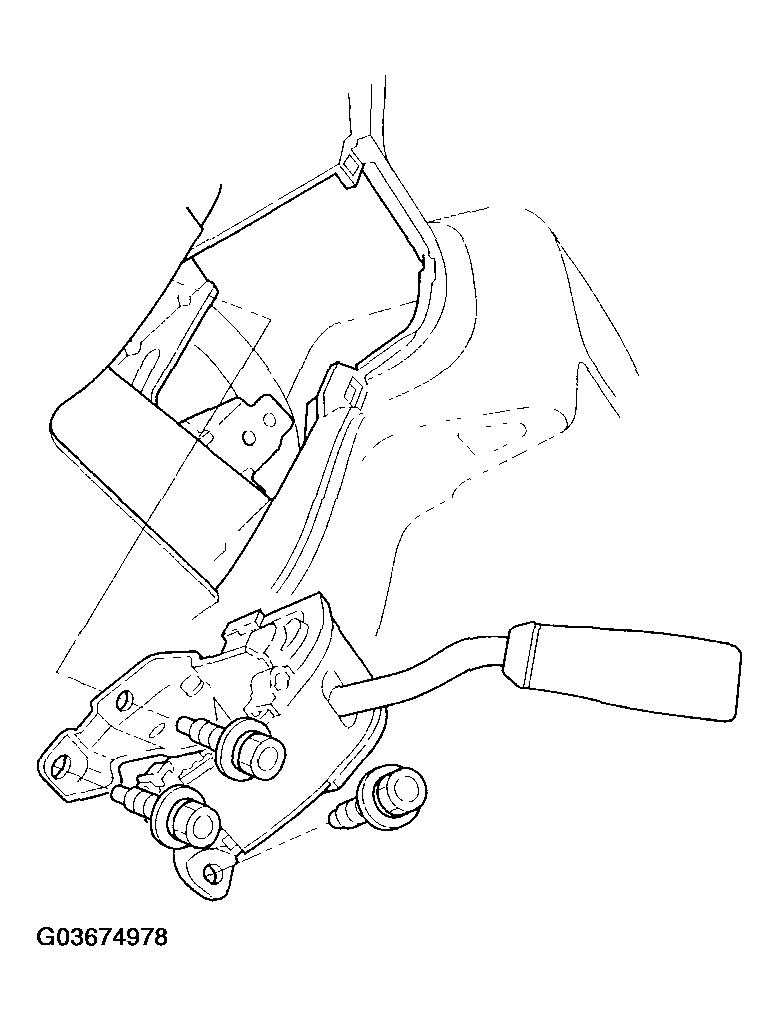

    Fig 1: Removing Shift Lever Assembly
    G03674978Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the harness from the harness clamp on the shift lever bracket base, and remove the harness band from the harness.
  3. Pry the lock tabs on the D3 switch/shift lock solenoid/park pin switch connector (A) to release the lock (B).

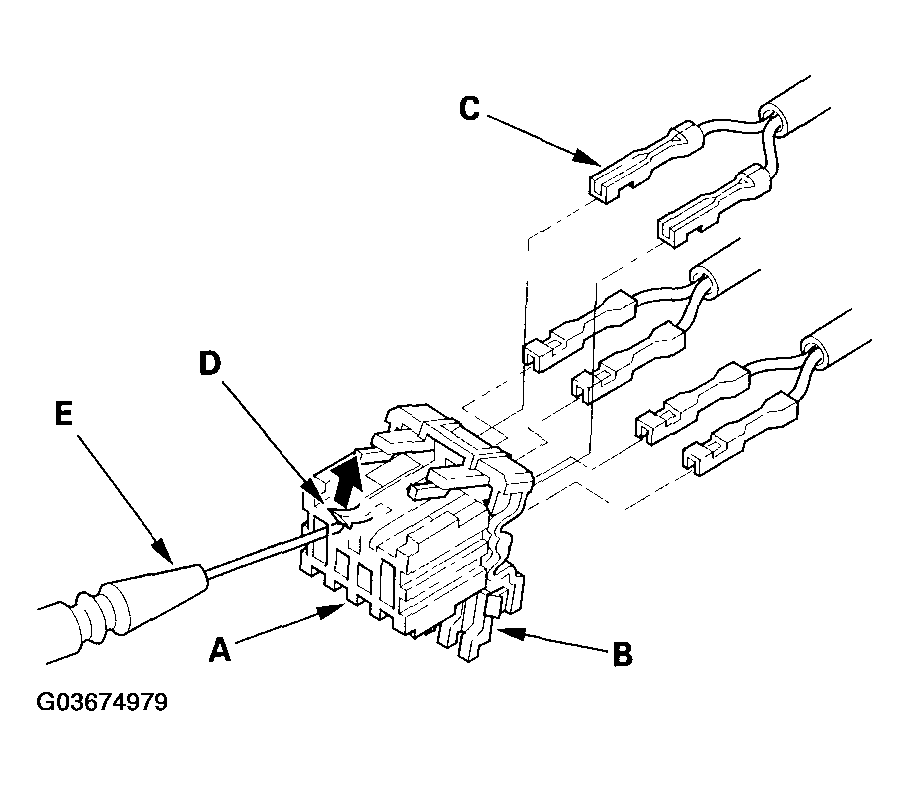

    Fig 2: Prying Lock Tabs On D3 Switch/Shift Lock Solenoid/Park Pin Switch Connector
    G03674979Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the terminal (C) from the connector by pushing the lock tab (D) up in the connector using a thin blade screwdriver (E). Remove all six terminals.
  5. Remove the shift lever cover.
  6. Remove the shift lock solenoid.
  7. Install the shift lock solenoid plunger (A) and plunger spring (B) in the new shift lock solenoid (C).

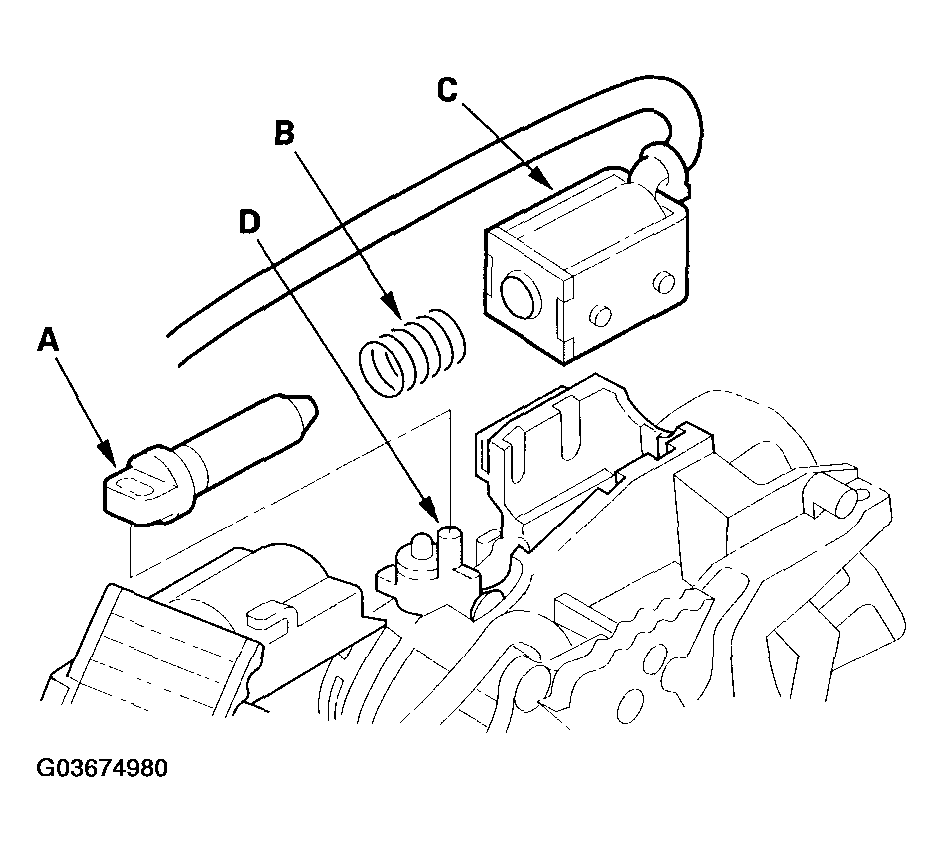

    Fig 3: Installing Shift Lock Solenoid Plunger And Plunger Spring In Shift Lock Solenoid
    G03674980Courtesy of AMERICAN HONDA MOTOR CO., INC.
  8. Install the shift lock solenoid by aligning the joint of the shift lock solenoid plunger with the tip of the shift lock stop (D).
  9. Route the harnesses, and clamp them as shown.

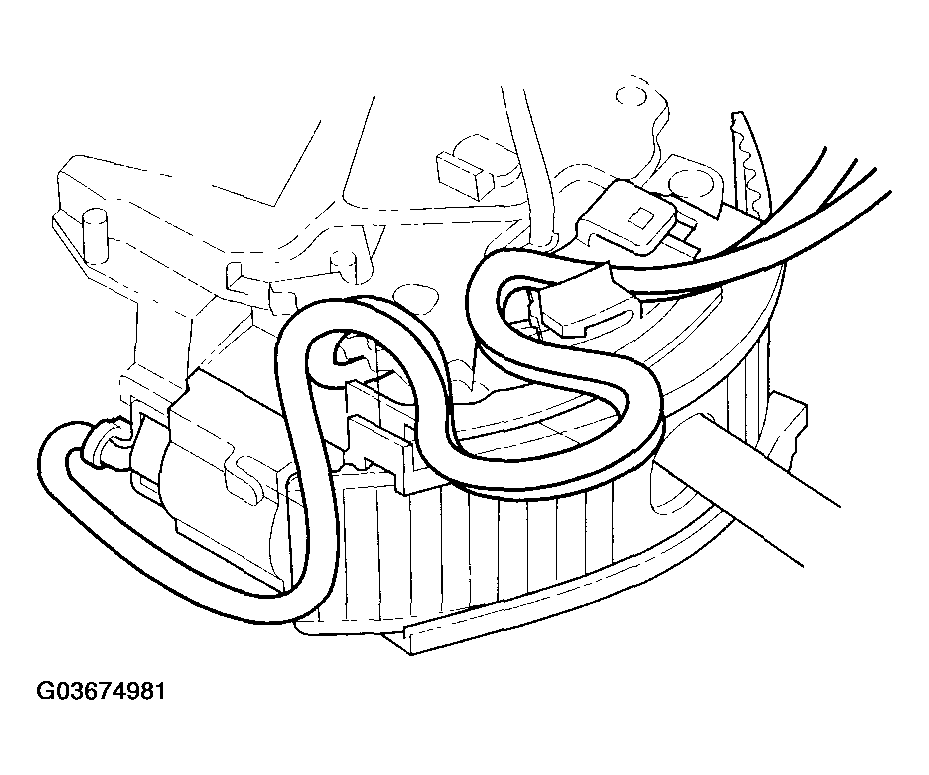

    Fig 4: Routing And Clamping Harnesses
    G03674981Courtesy of AMERICAN HONDA MOTOR CO., INC.

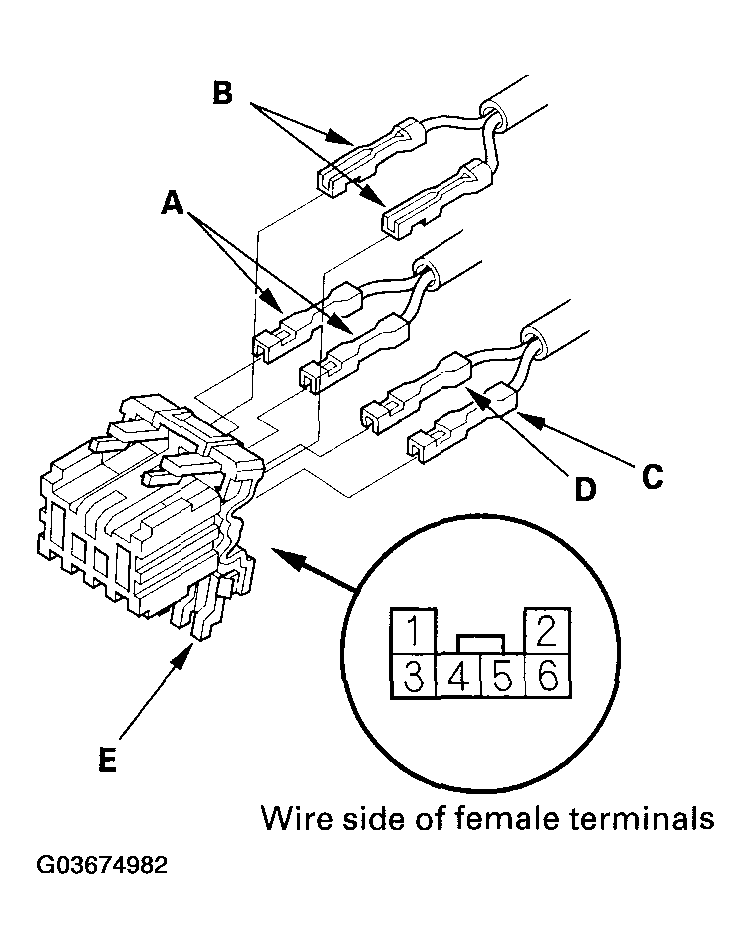

  10. Install the D3 switch harness terminals (A) in the No. 5 and No. 6 cavities. Either D3 switch harness terminal can be installed in the No. 5 and No. 6 cavities.
    Fig 5: Installing D3 Switch Harness Terminals
    G03674982Courtesy of AMERICAN HONDA MOTOR CO., INC.
  11. Install the park pin switch harness terminals (B) in the No. 1 and No. 2 cavities. Either park pin switch harness terminal can be installed in the No. 1 and No. 2 cavities.
  12. Install the BLK harness terminal (C) of the shift lock solenoid in the No. 3 cavity and the RED harness terminal (D) in the No. 4 cavity. Make sure that all six terminals lock securely, then install the lock (E) securely.
  13. Align the marks (A) on the harnesses, and tie the harness band (B) over the marks. Clamp the D3 switch harness (C) 15 mm (0.6 in.) (D) from the harness band.

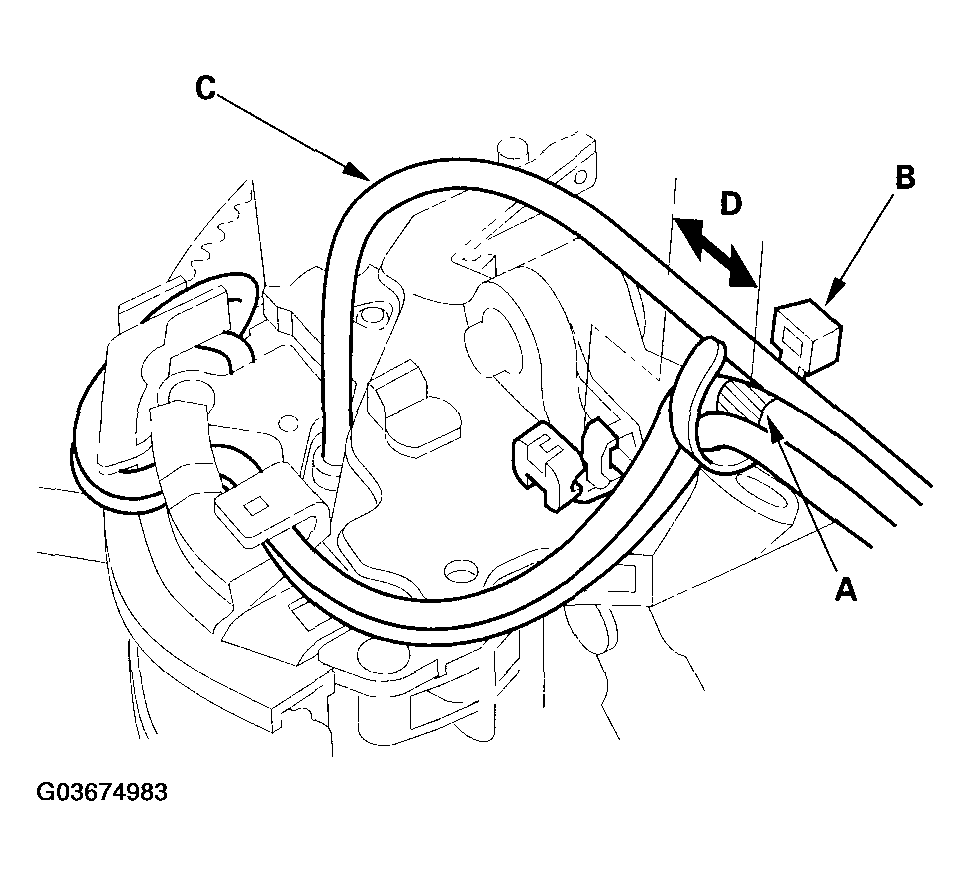

    Fig 6: Fixing Harness Band
    G03674983Courtesy of AMERICAN HONDA MOTOR CO., INC.
  14. Install the shift lever cover.
  15. Install the shift lever assembly (see SHIFT LEVER INSTALLATION  ).
  16. Check that the shift lock solenoid operates.
