Ignition System: Locations

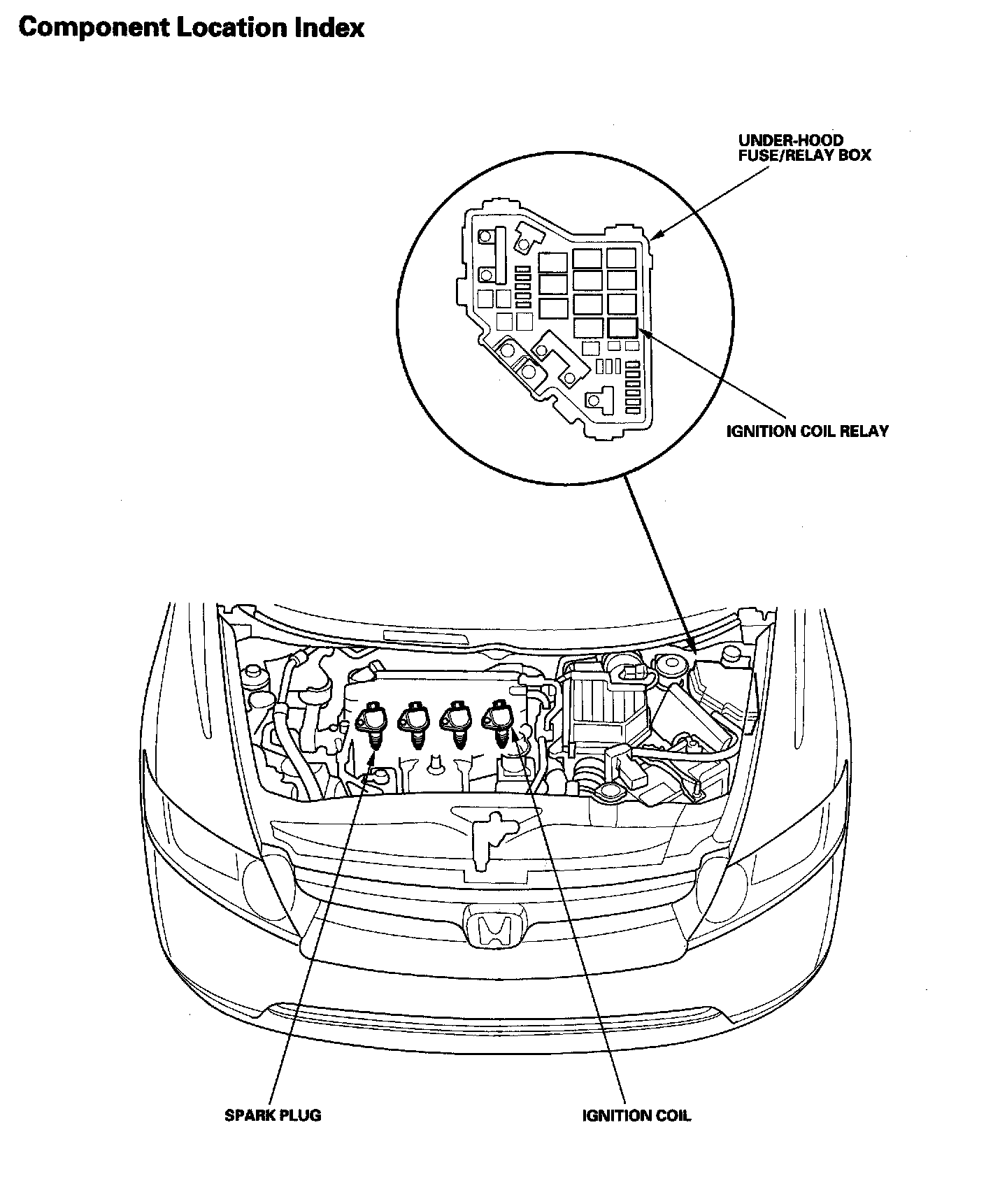

Ignition System - Component Location Index:



Dashboard - Component Location Index Part 1:

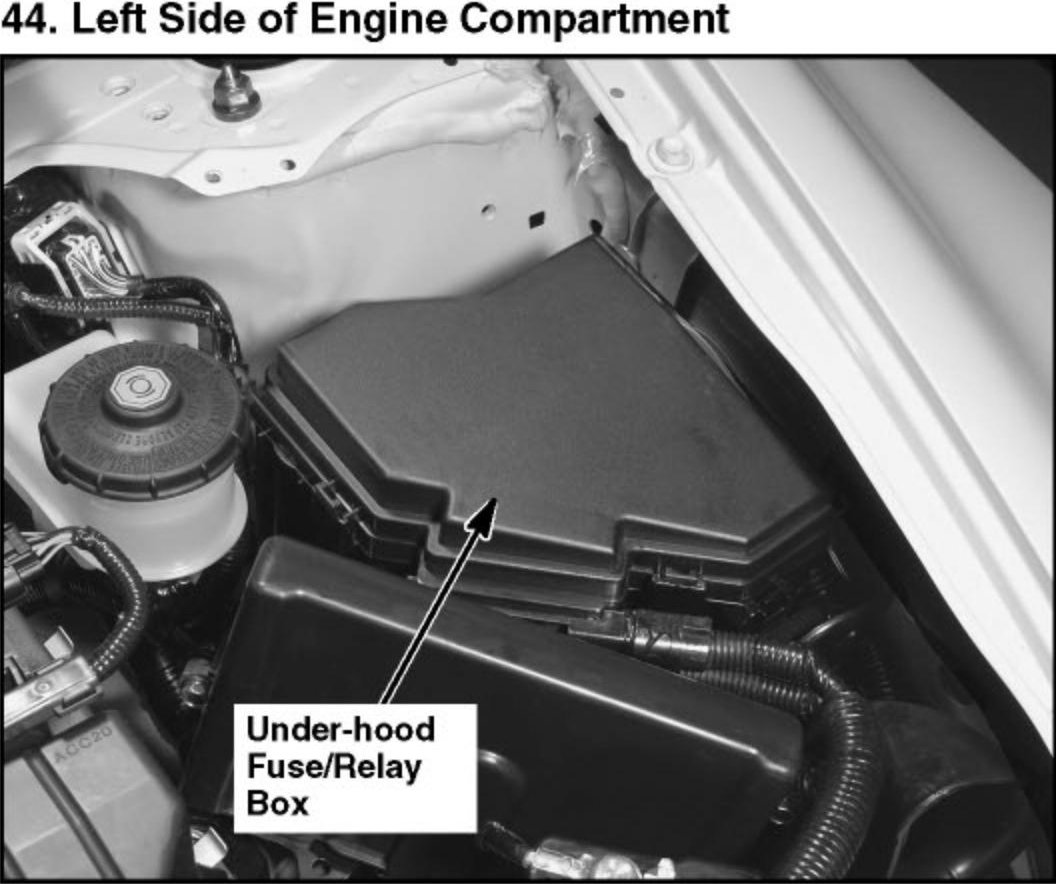

44. Left Side of Engine Compartment:

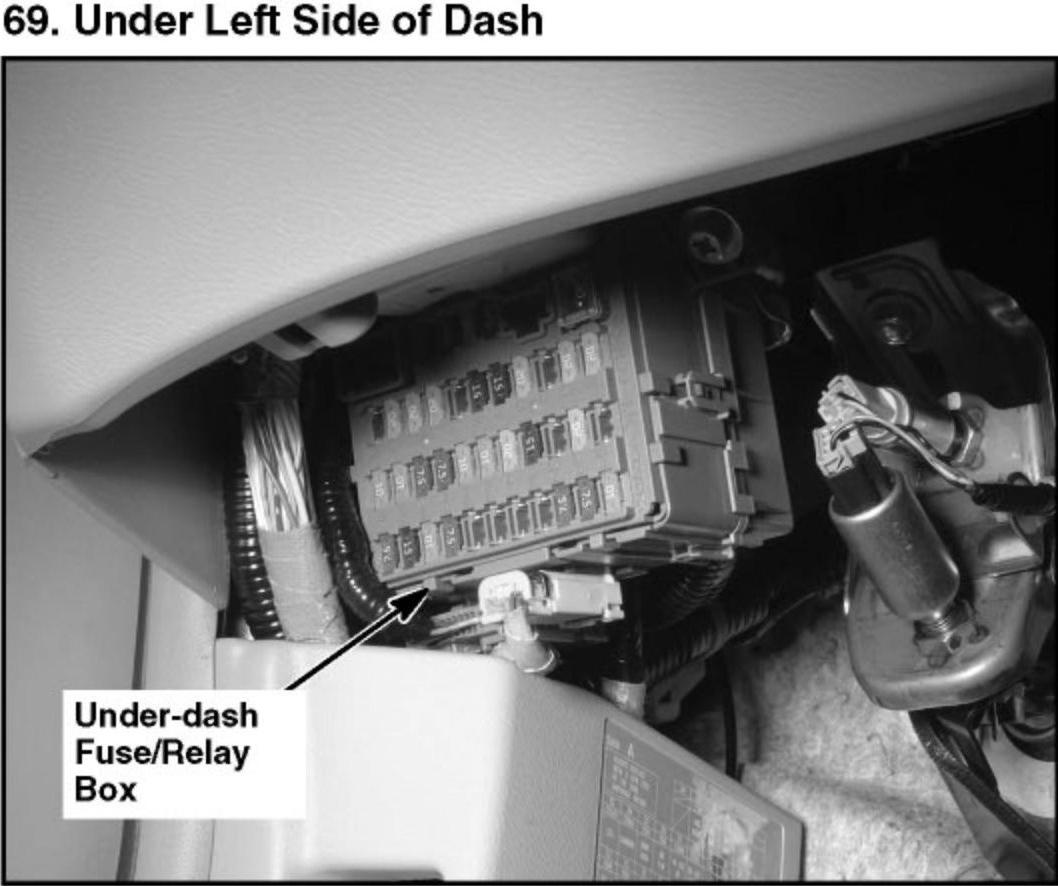

69. Under Left Side of Dash:
