Power Steering Pressure Switch: Locations

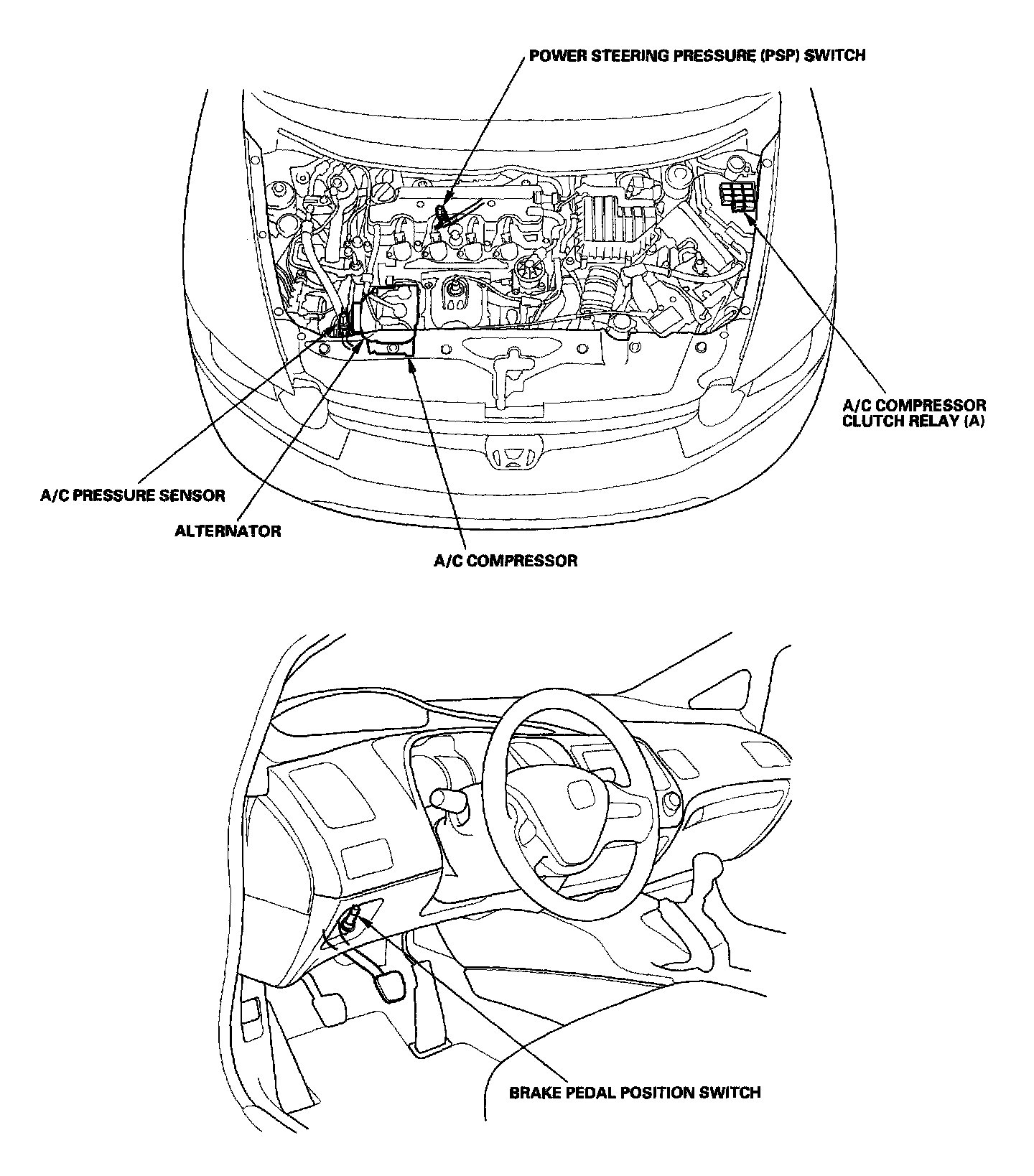

Idle Control System - Component Location Index:

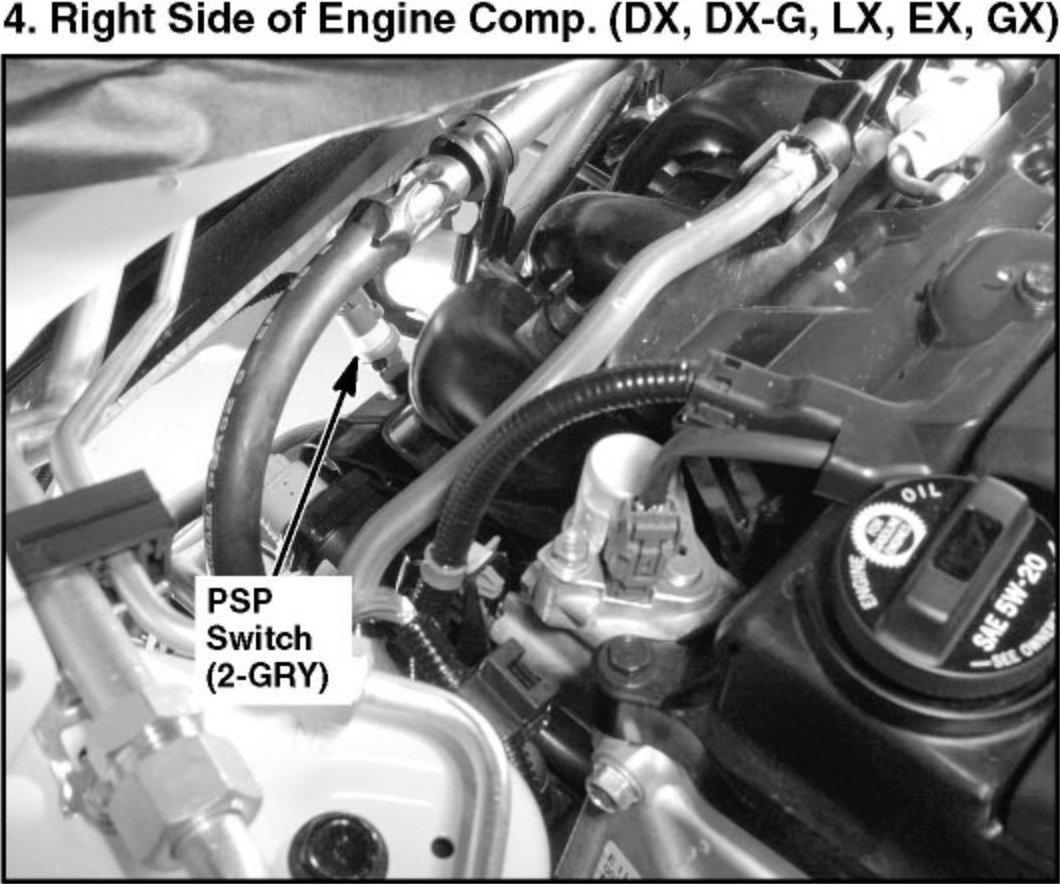

4. Right Side of Engine Comp. (DX, DX-G, LX, EX, GX):
