Overhaul Specifications

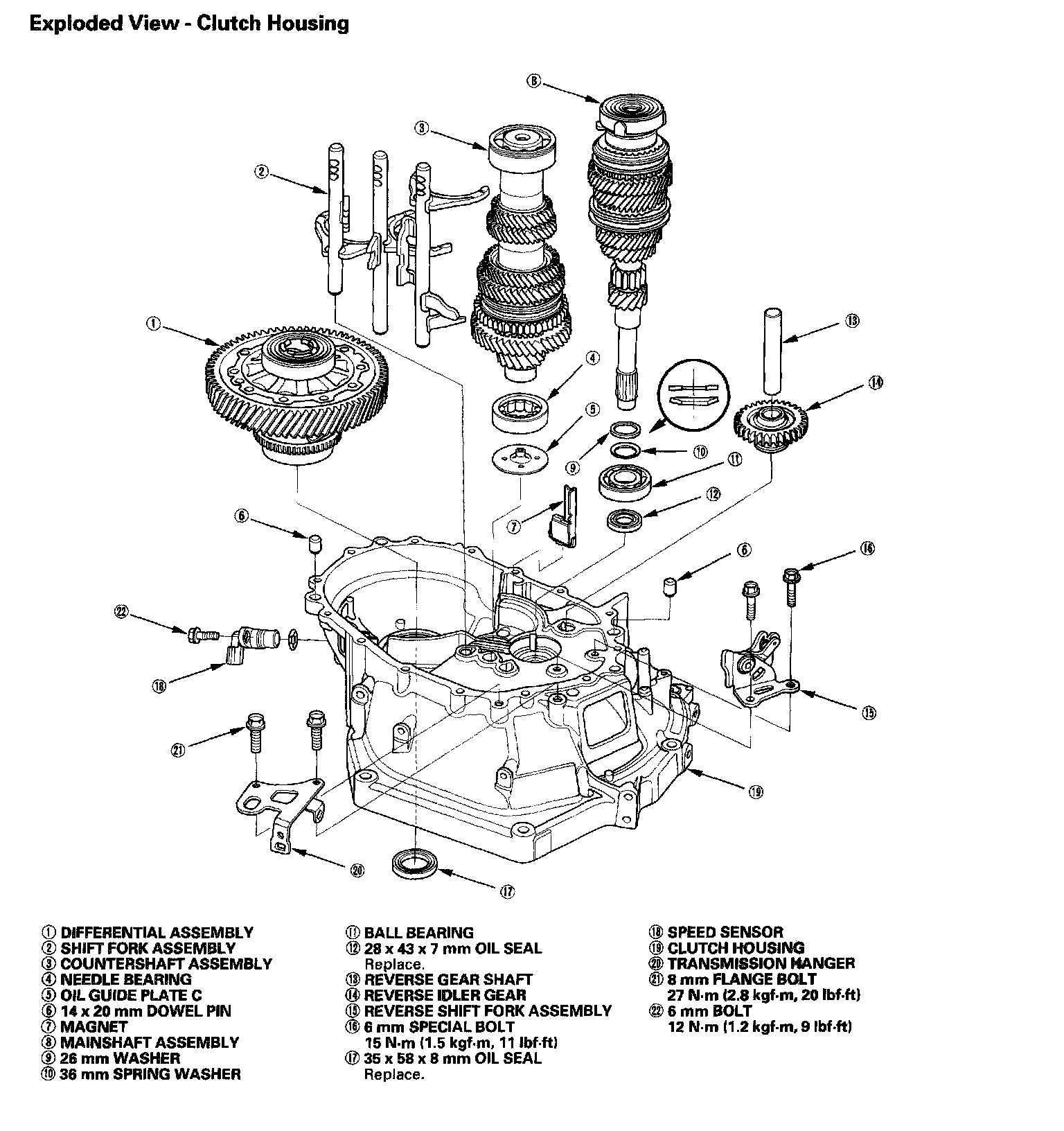

Clutch Housing:

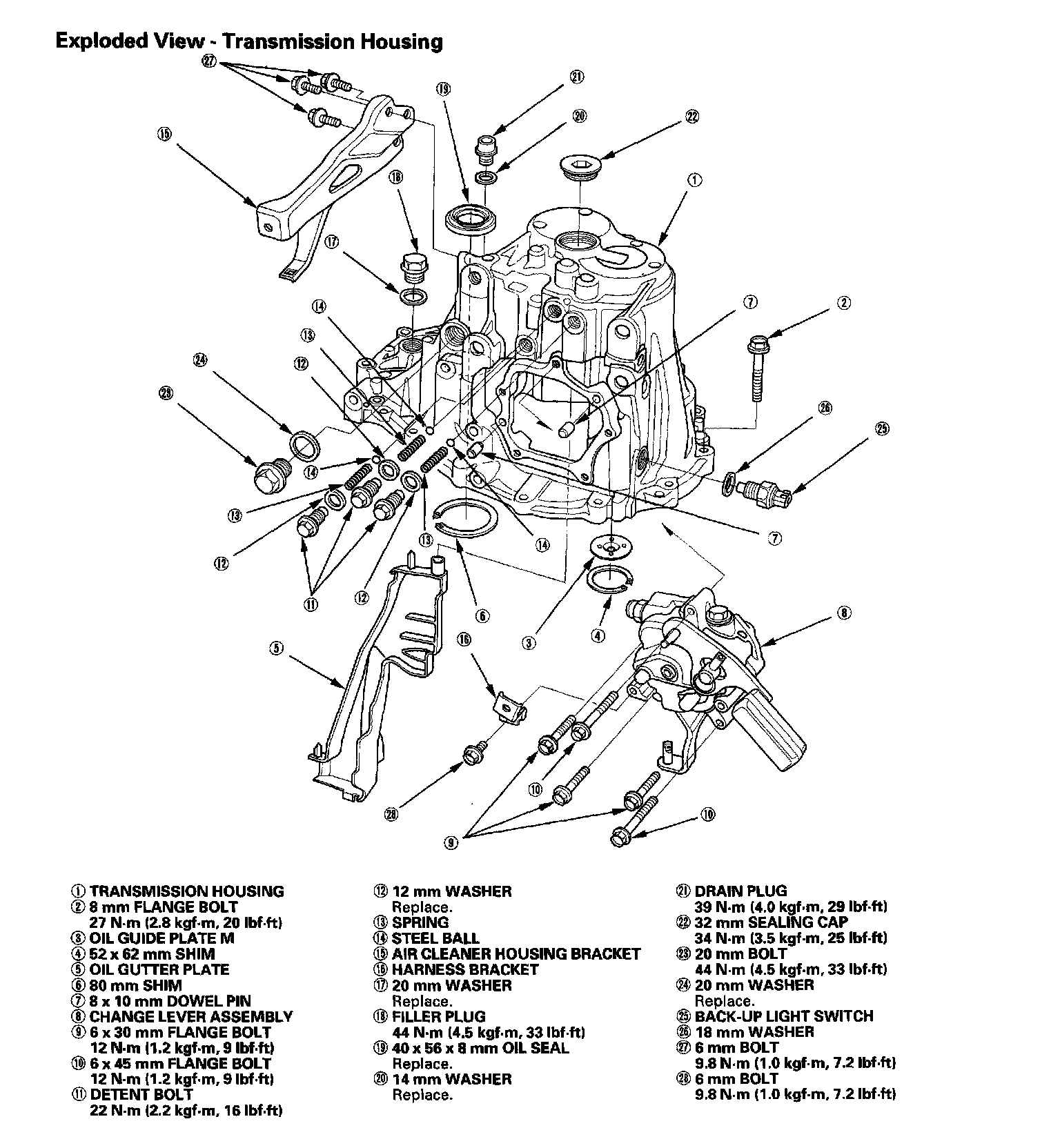

Transmission Housing:




Countershaft:




Flywheel:






For information regarding Transmission Overhaul Specifications, refer to Service and Repair Procedures. Service and Repair
