Engine Compartment

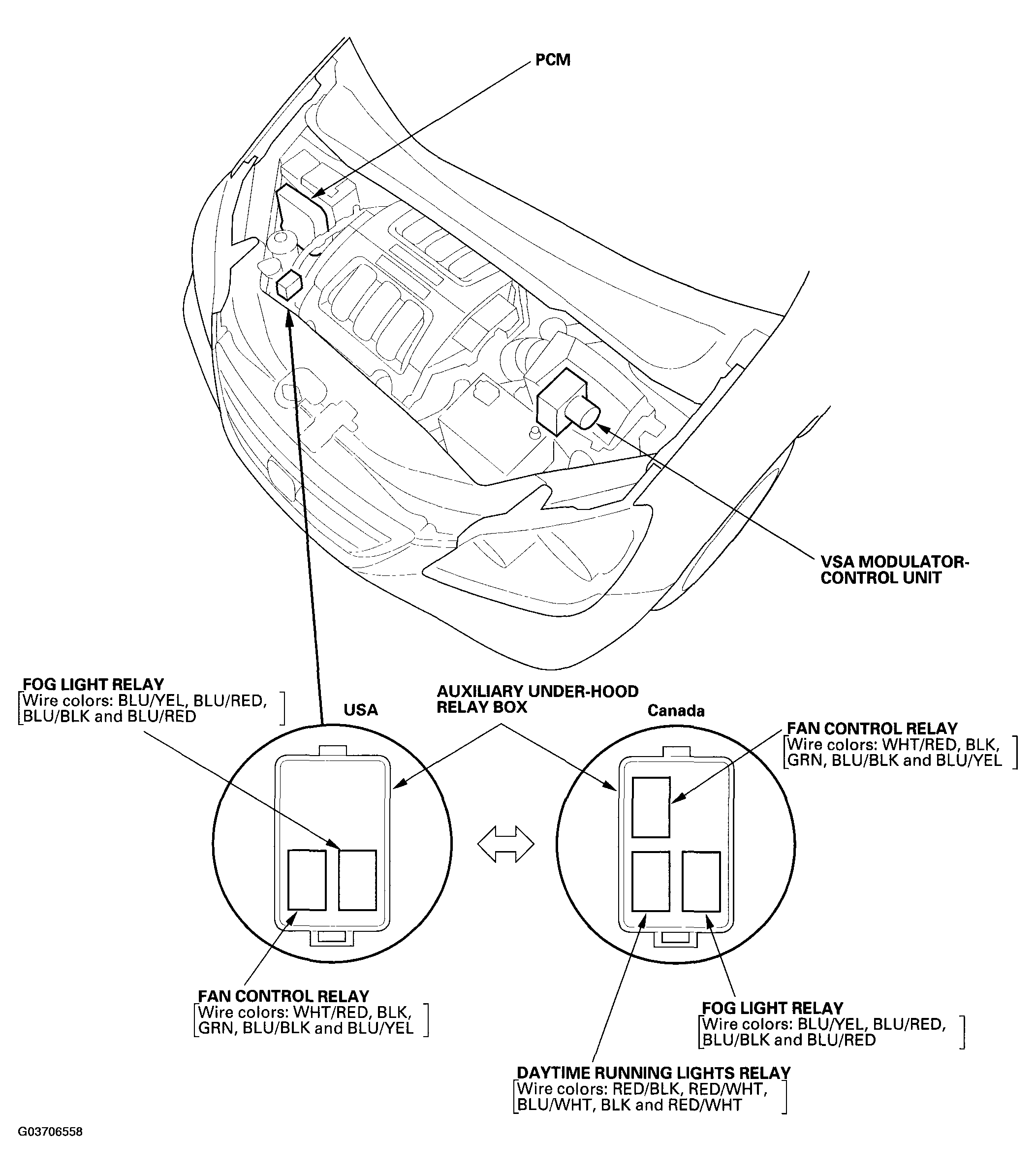

Fig 1: Identifying Relay And Control Unit Locations (Engine Compartment - 1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Fig 2: Identifying Relay And Control Unit Locations (Engine Compartment - 2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
