Master Switch Replacement

Remove the driver's door panel (see FRONT DOOR PANEL REMOVAL/INSTALLATION ).

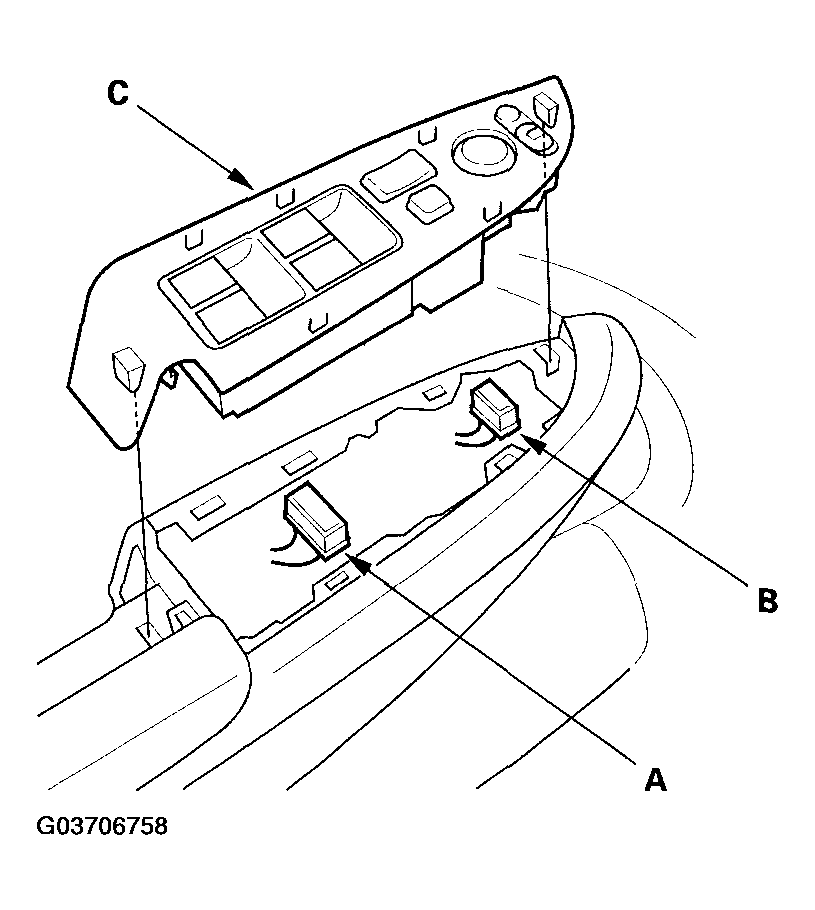

Remove the screw and disconnect the 23P connector (A) and 13P connector (B) from the master switch panel (C), then remove the switch assembly from the door panel.

Fig 1: Disconnecting 23P And 13P Connector From Master Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.

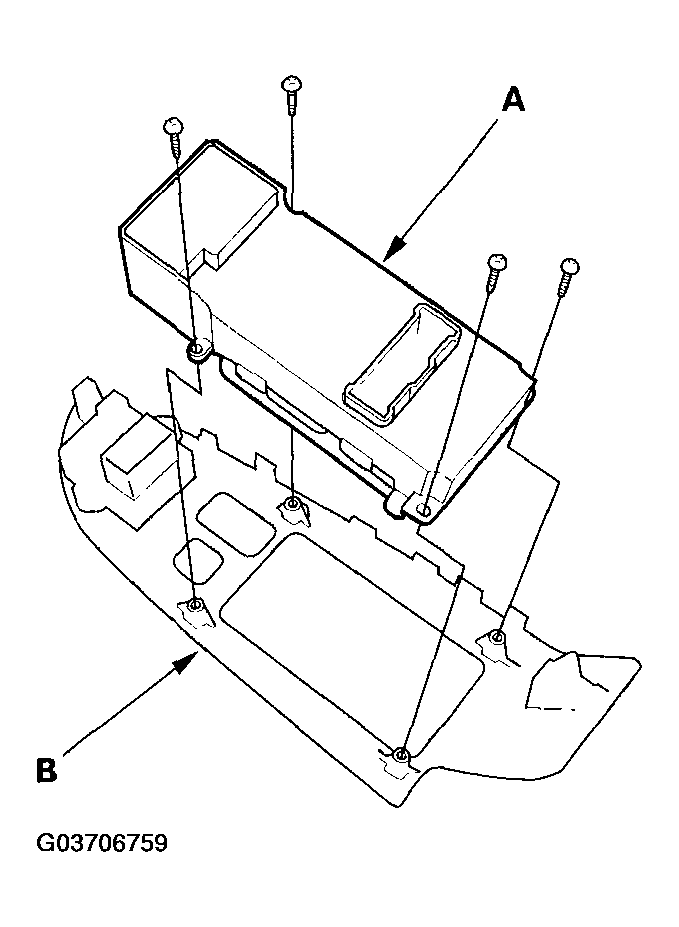

Remove the four mounting screws, then remove the master switch (A) from the switch panel (B).

Fig 2: Removing Master Switch From Switch Panel
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install in the reverse order of removal.
Reset the power window control unit (see RESETTING THE POWER WINDOW CONTROL UNIT ).
