Navigation Module: Locations

115. Behind Navigation Unit:

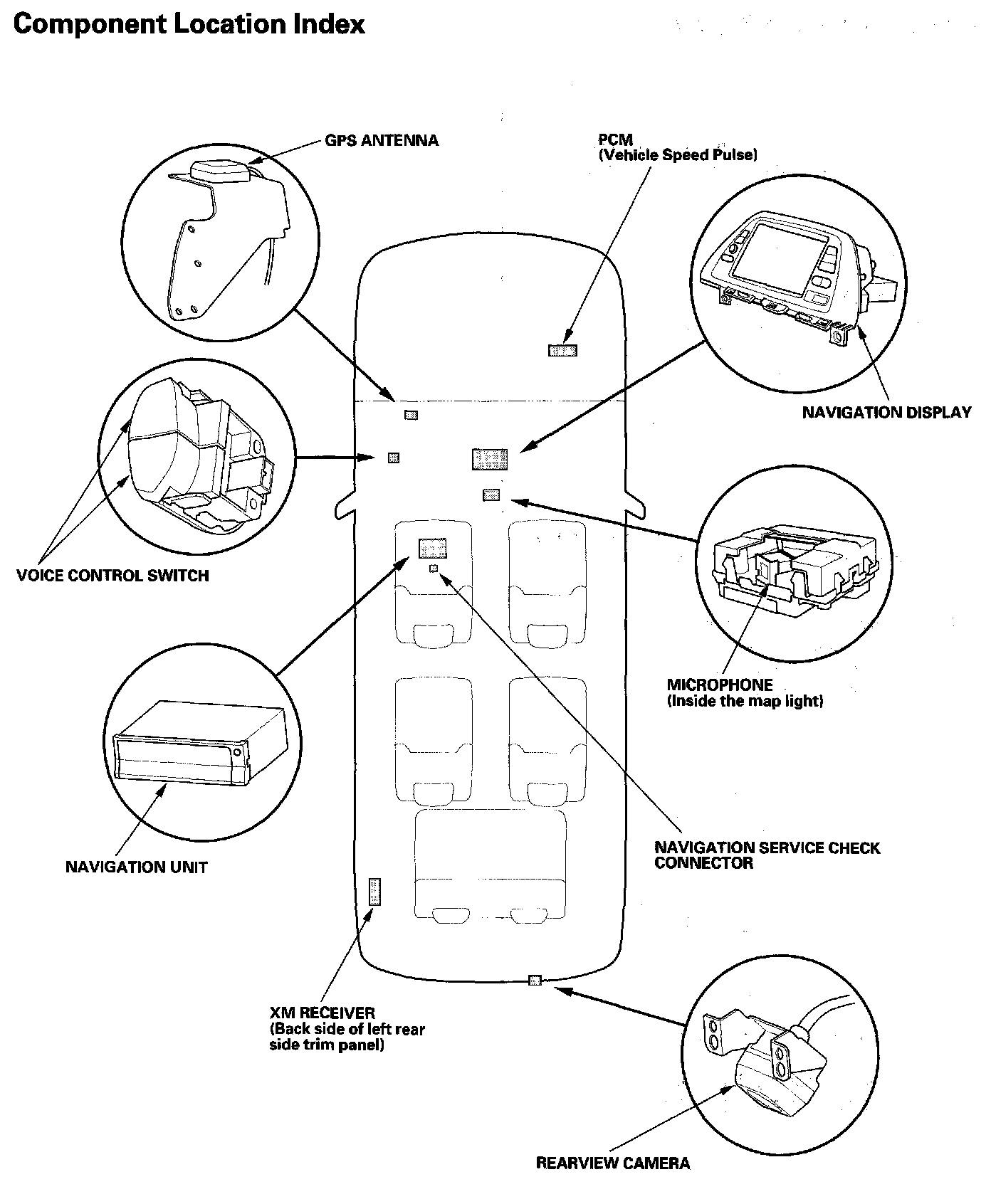

Navigation System - Component Location Index:

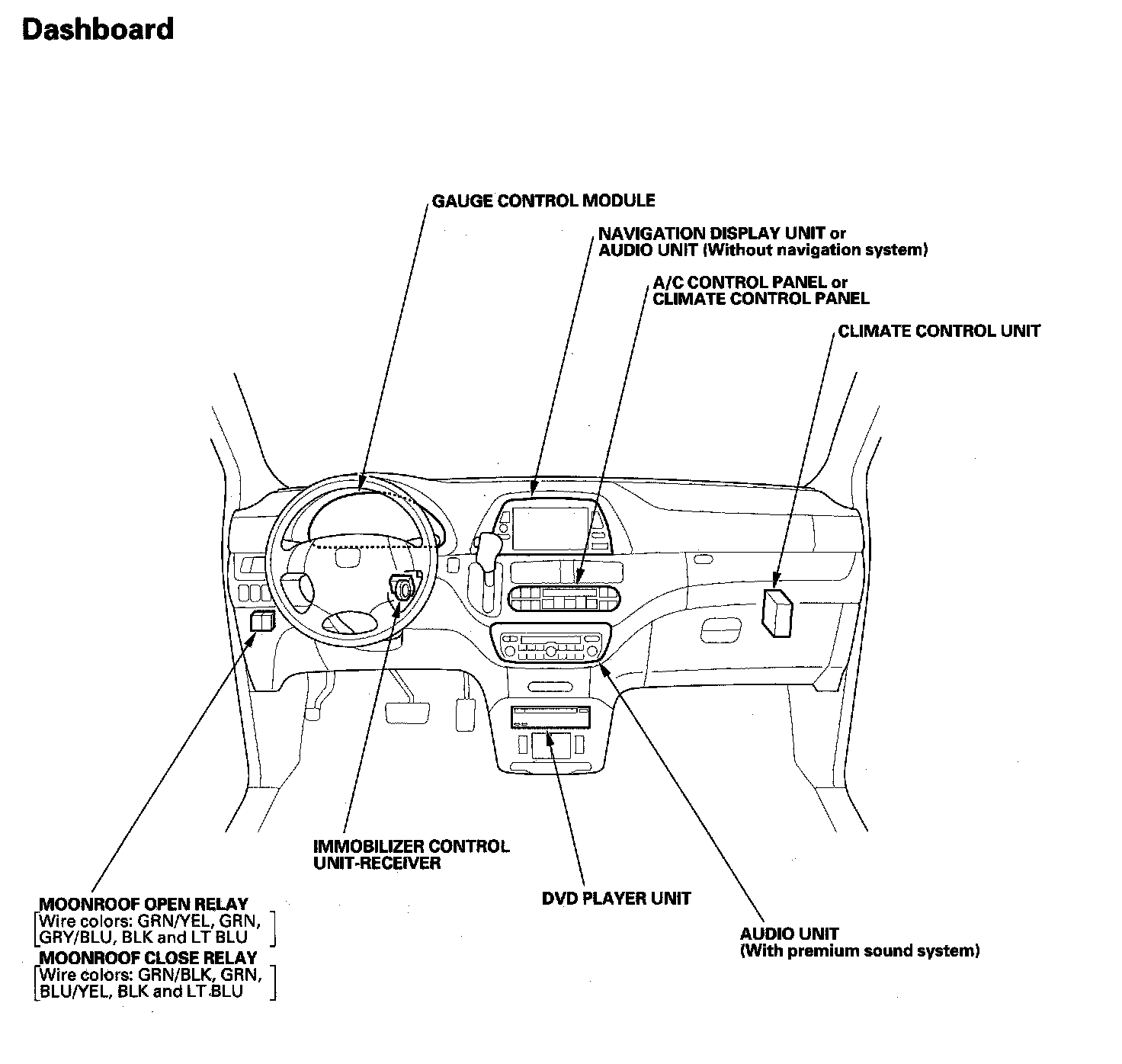

Relay And Control Unit Locations - Dashboard:



Relay And Control Unit Locations - Door And Seat:
