Power Seat Control Module: Locations

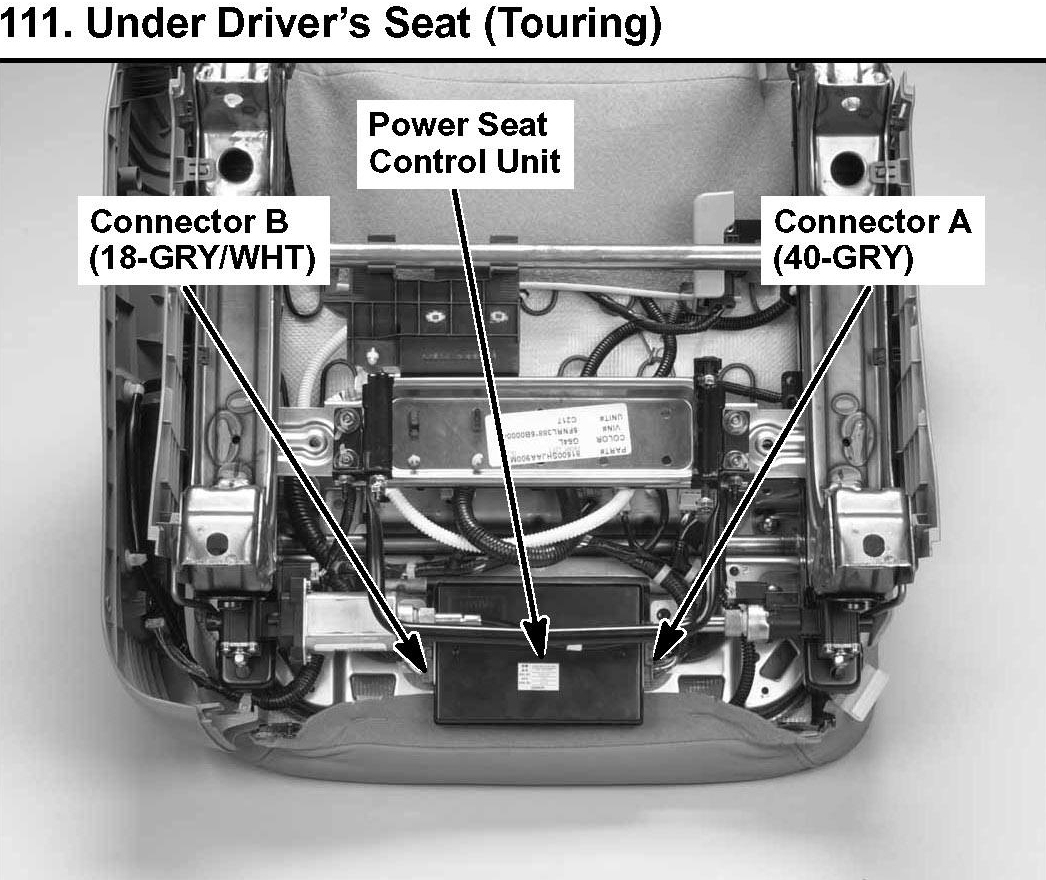

111. Under Driver's Seat (Touring):

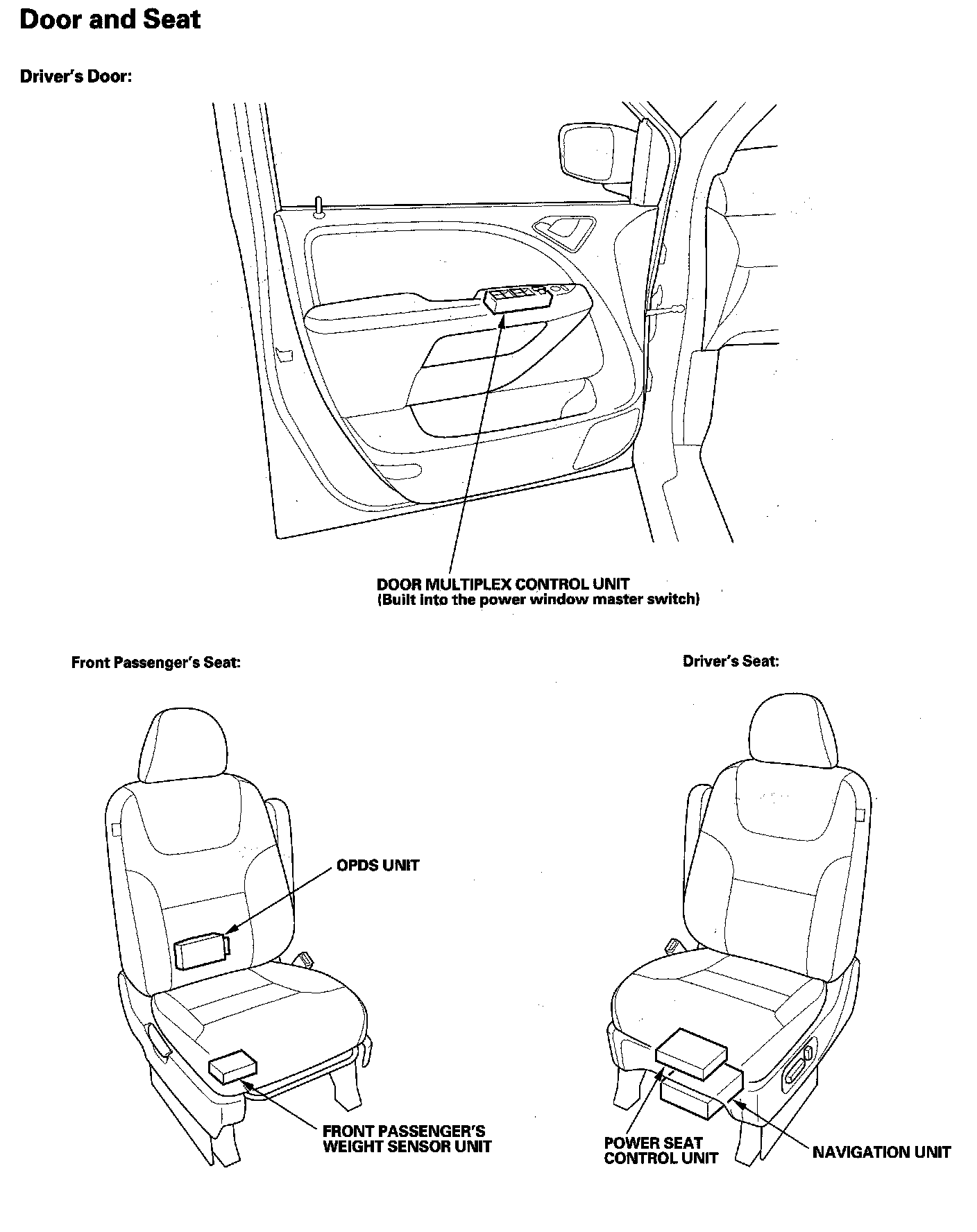

Relay And Control Unit Locations - Door And Seat:
