Traction Control Module: Locations

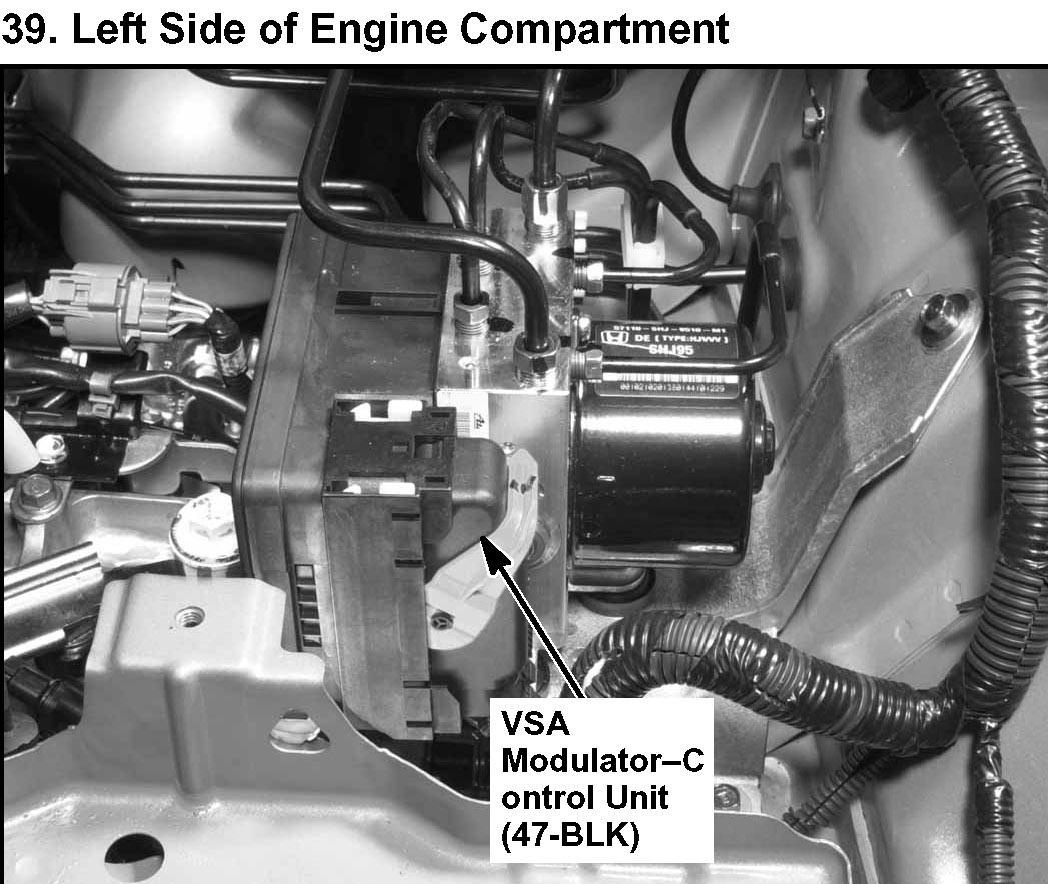

39. Left Side Of Engine Compartment:

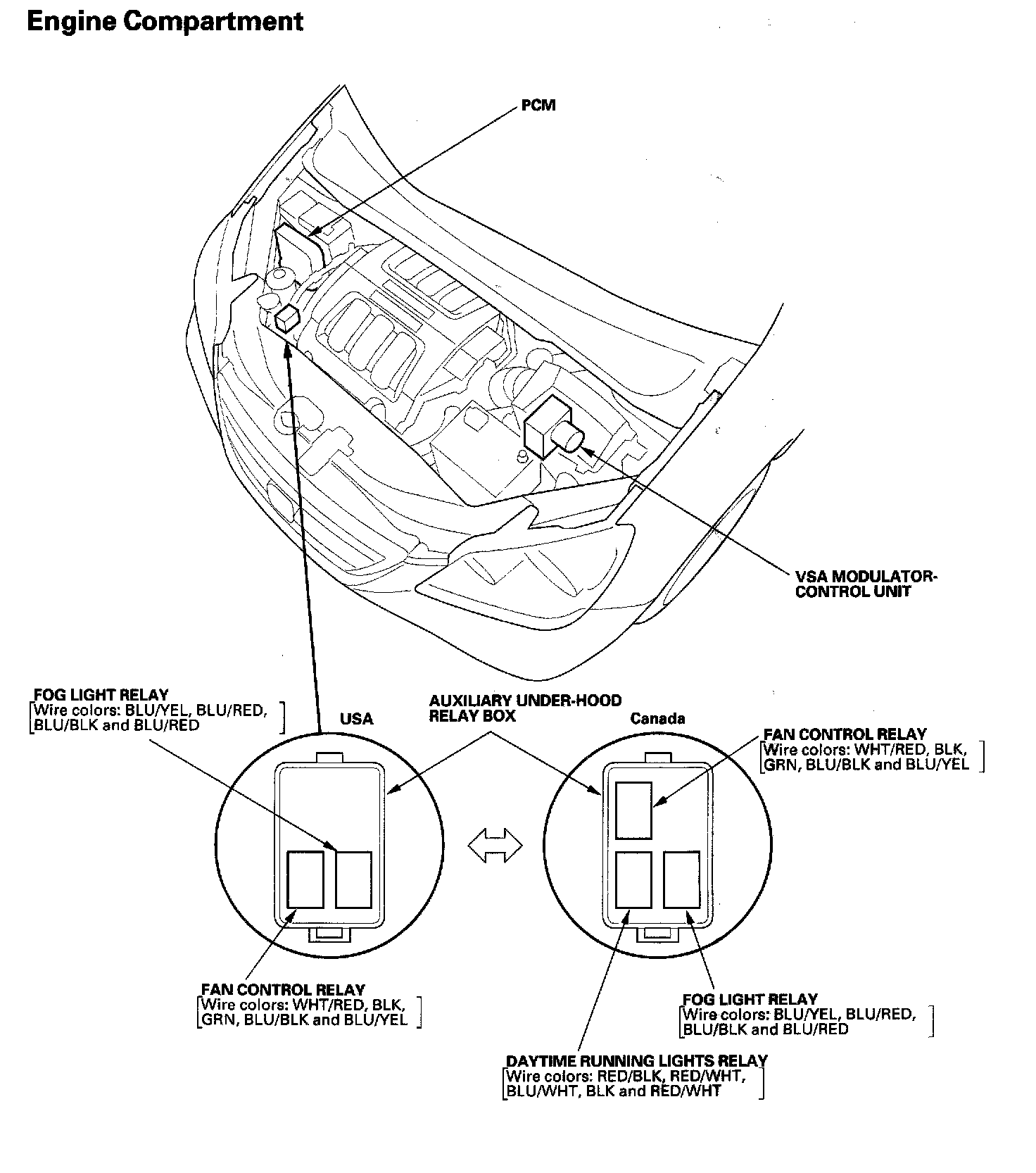

Relay And Control Unit Locations - Engine Compartment:
