Transmission Position Sensor/Switch: Locations

203. Transmission Housing:

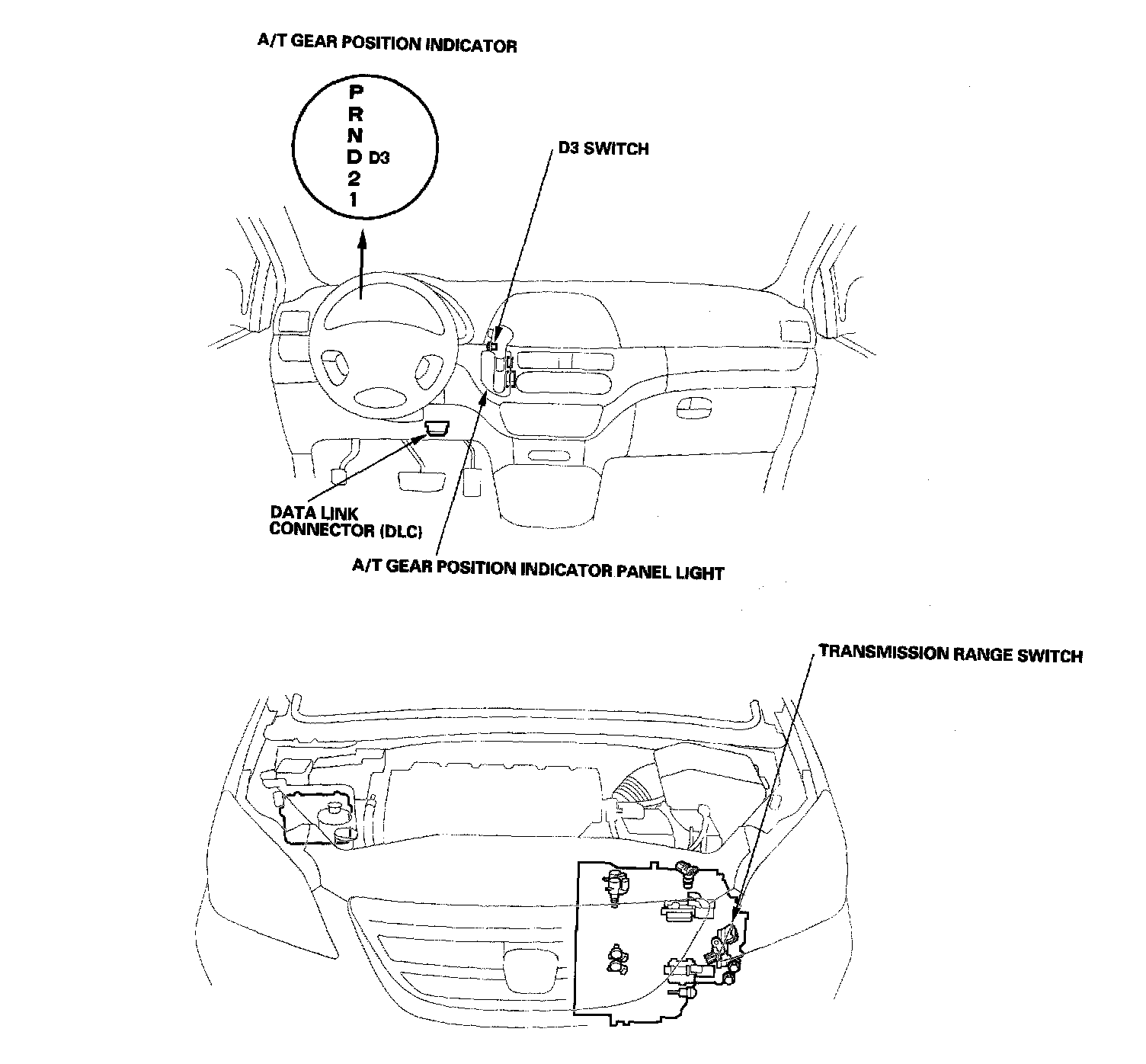

A/T Gear Position Indicator Component Location Index:

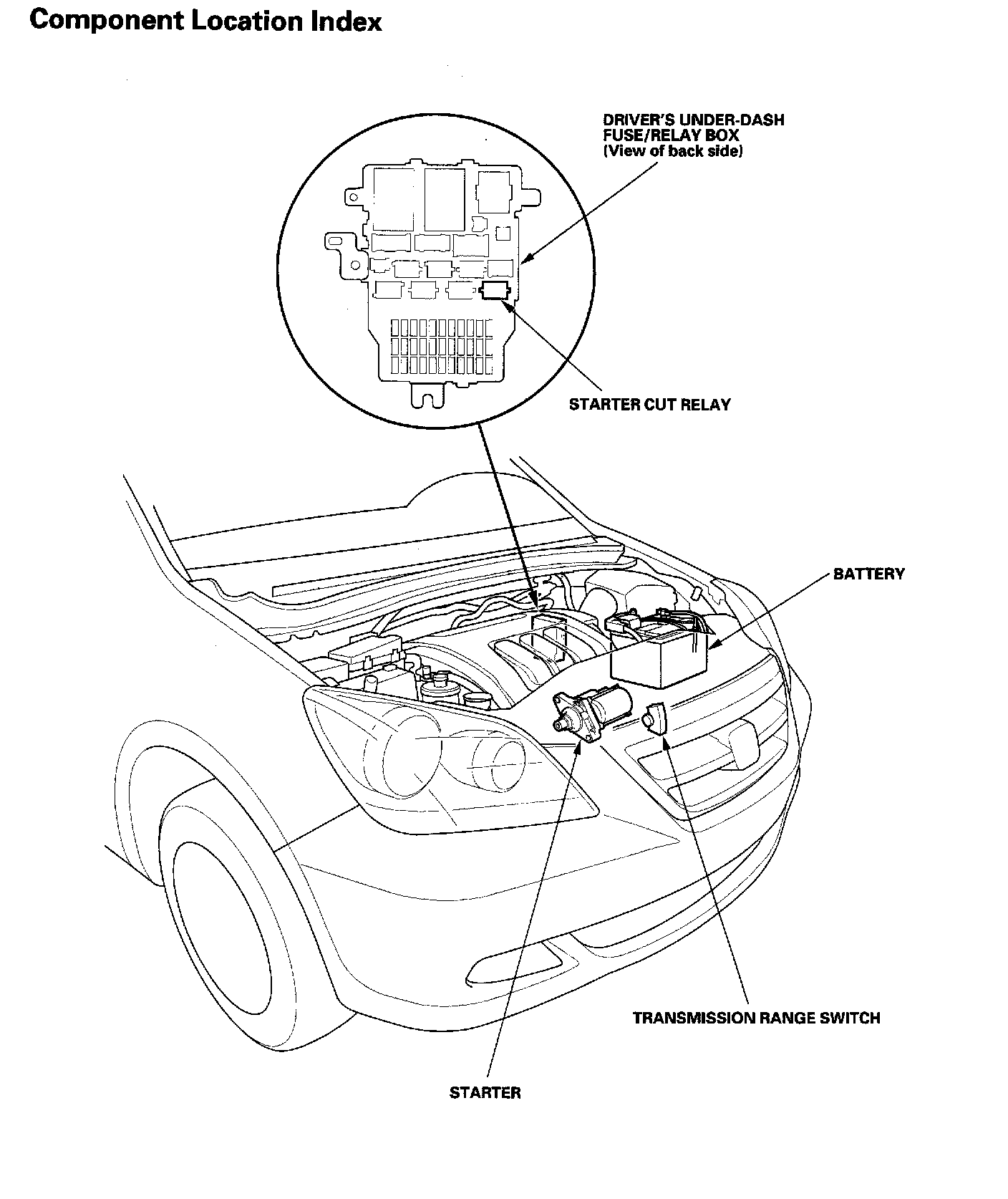

Starting System - Component Location Index:

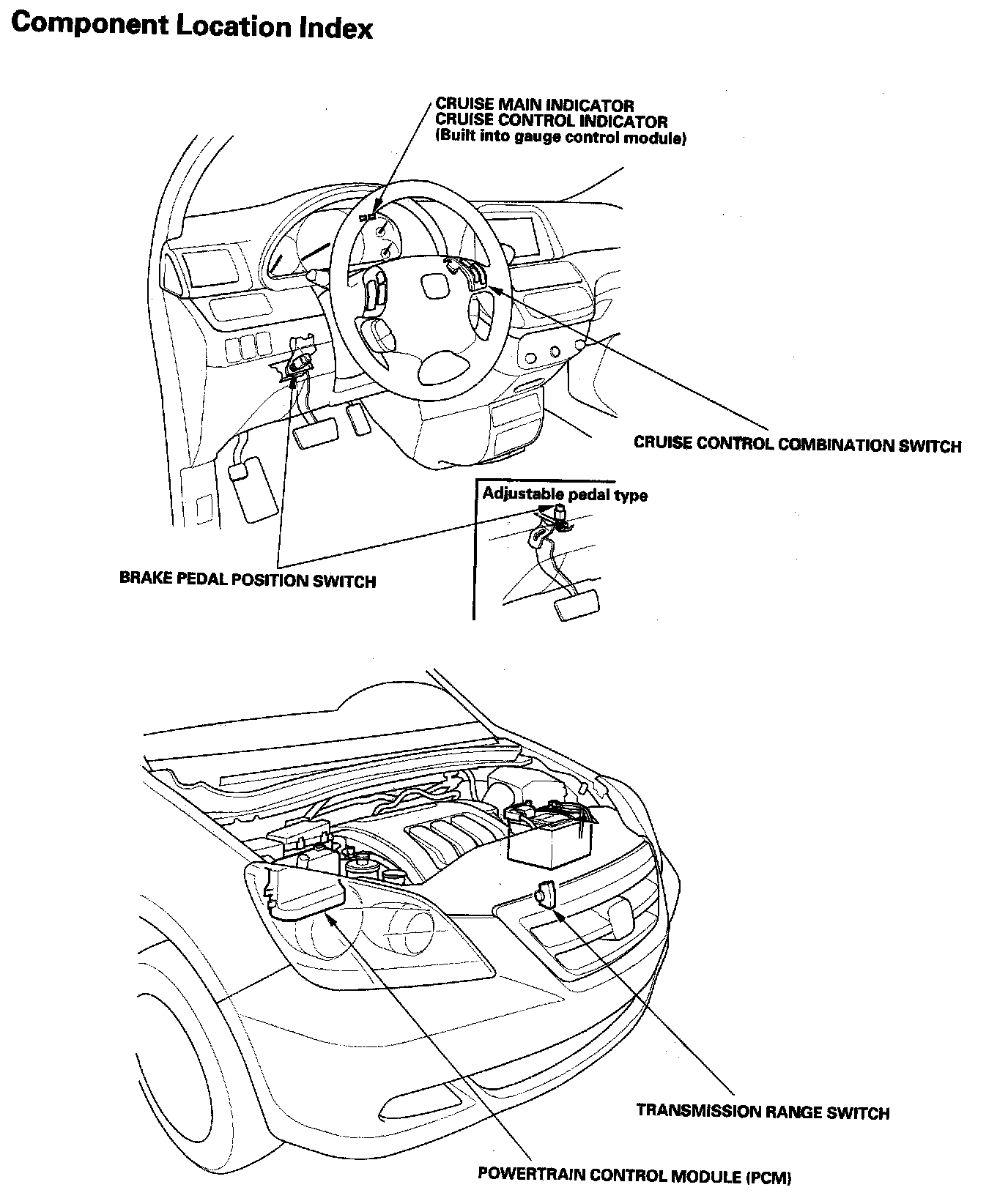

Cruise Control - Component Location Index:
