System Diagram

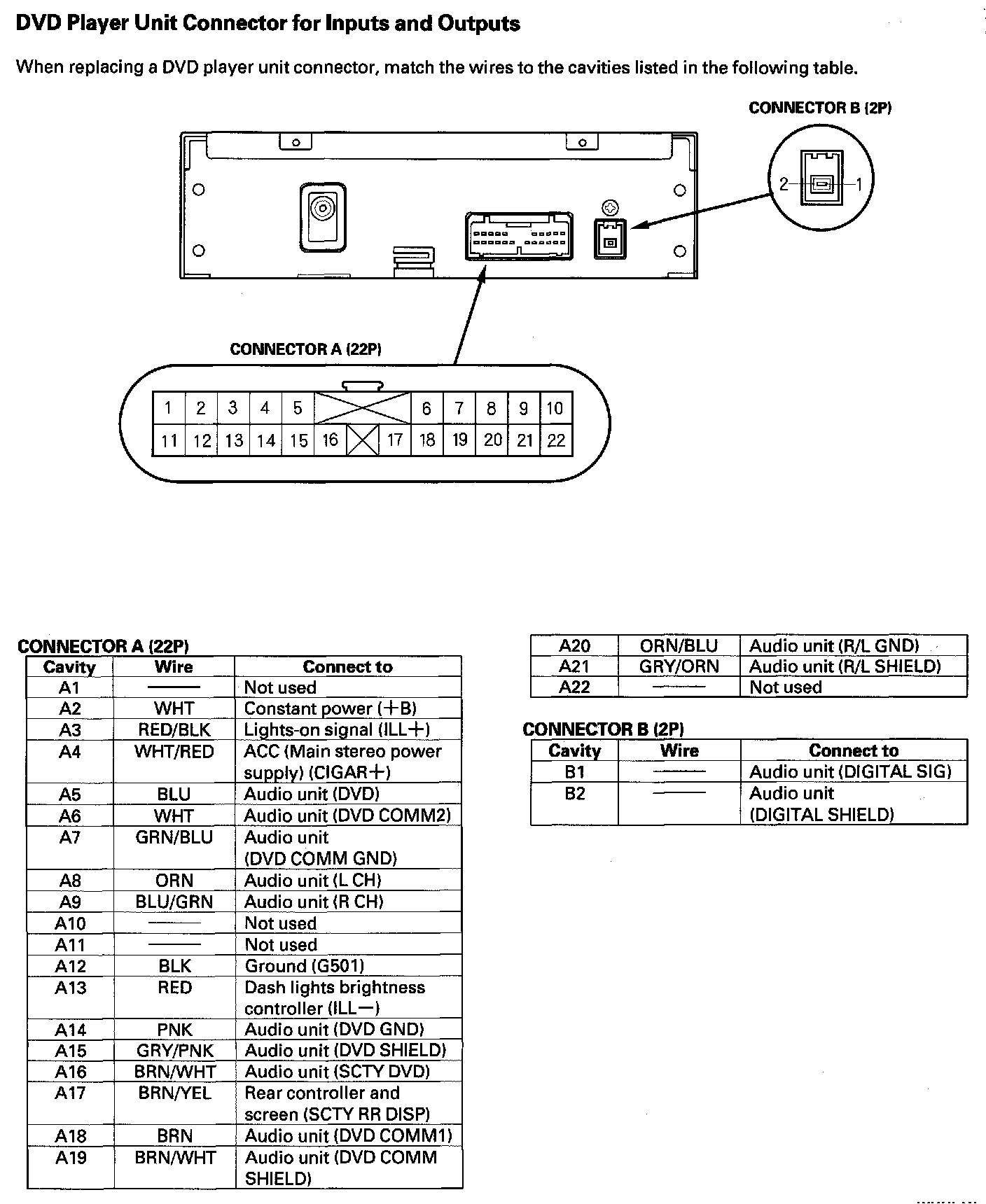

DVD Player Unit Connector For Inputs And Outputs:

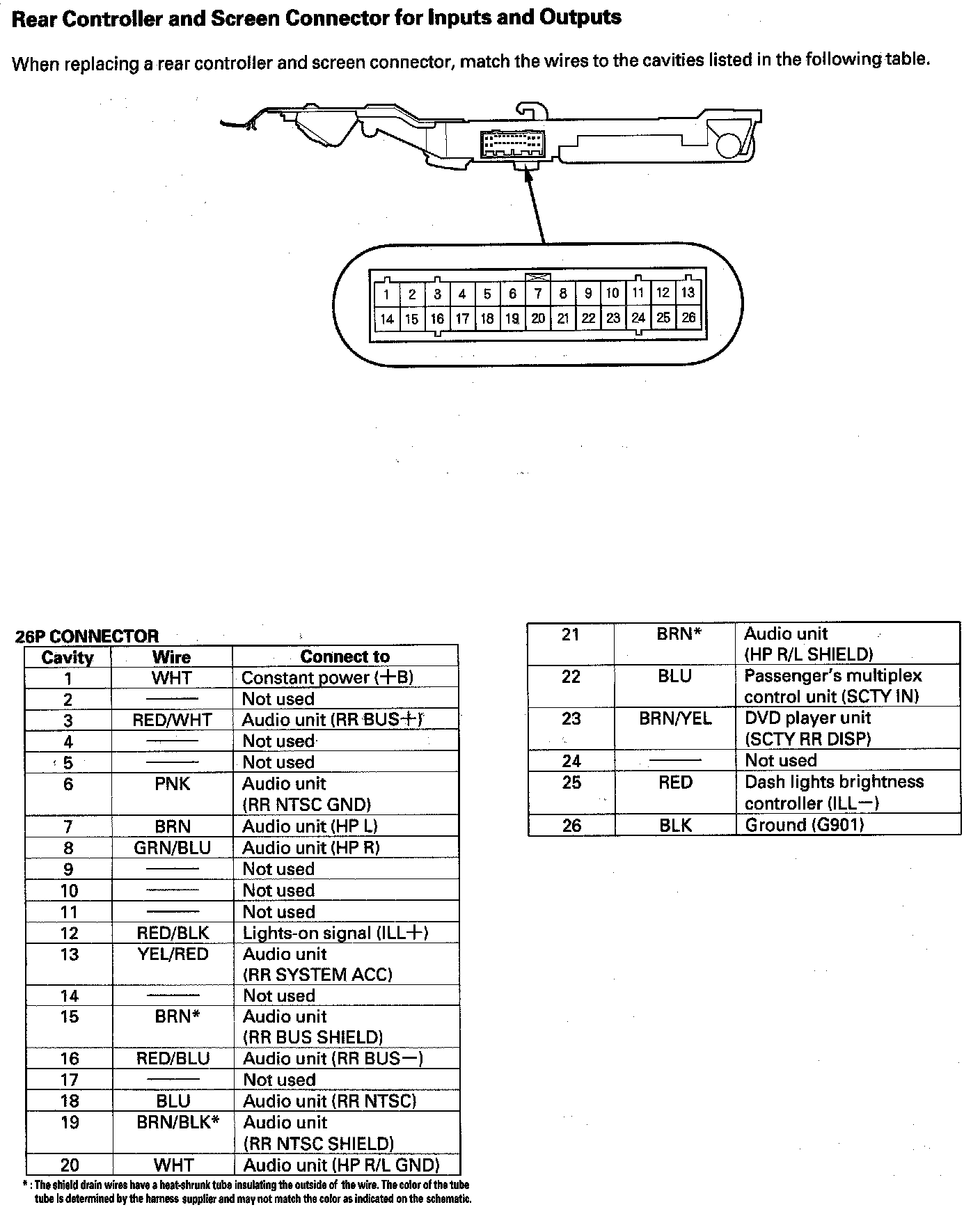

Rear Controller And Screen Connector For Inputs And Outputs:

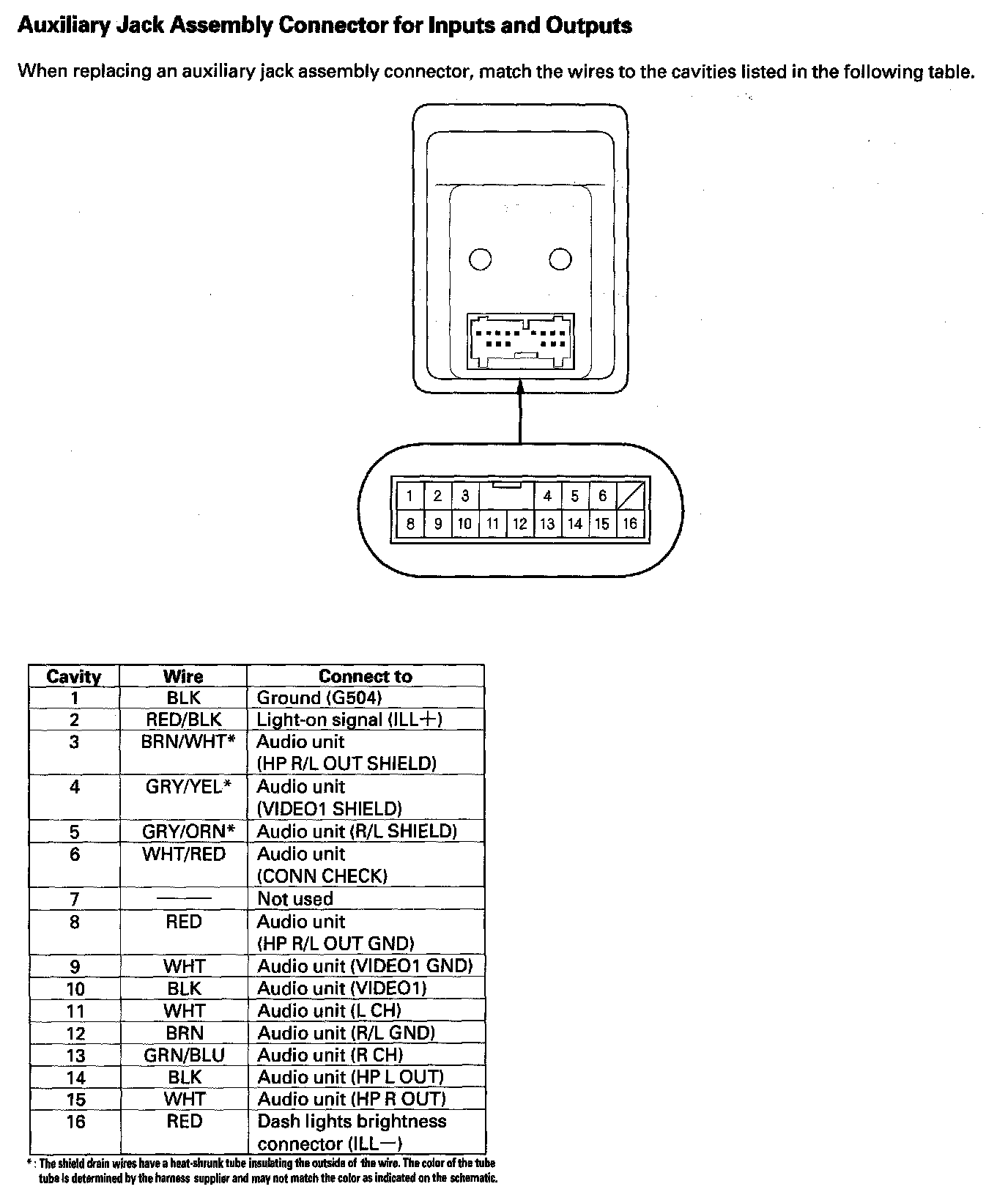

Auxiliary Jack Assembly Connector For Inputs And Outputs:
