Wire Side Female Terminals

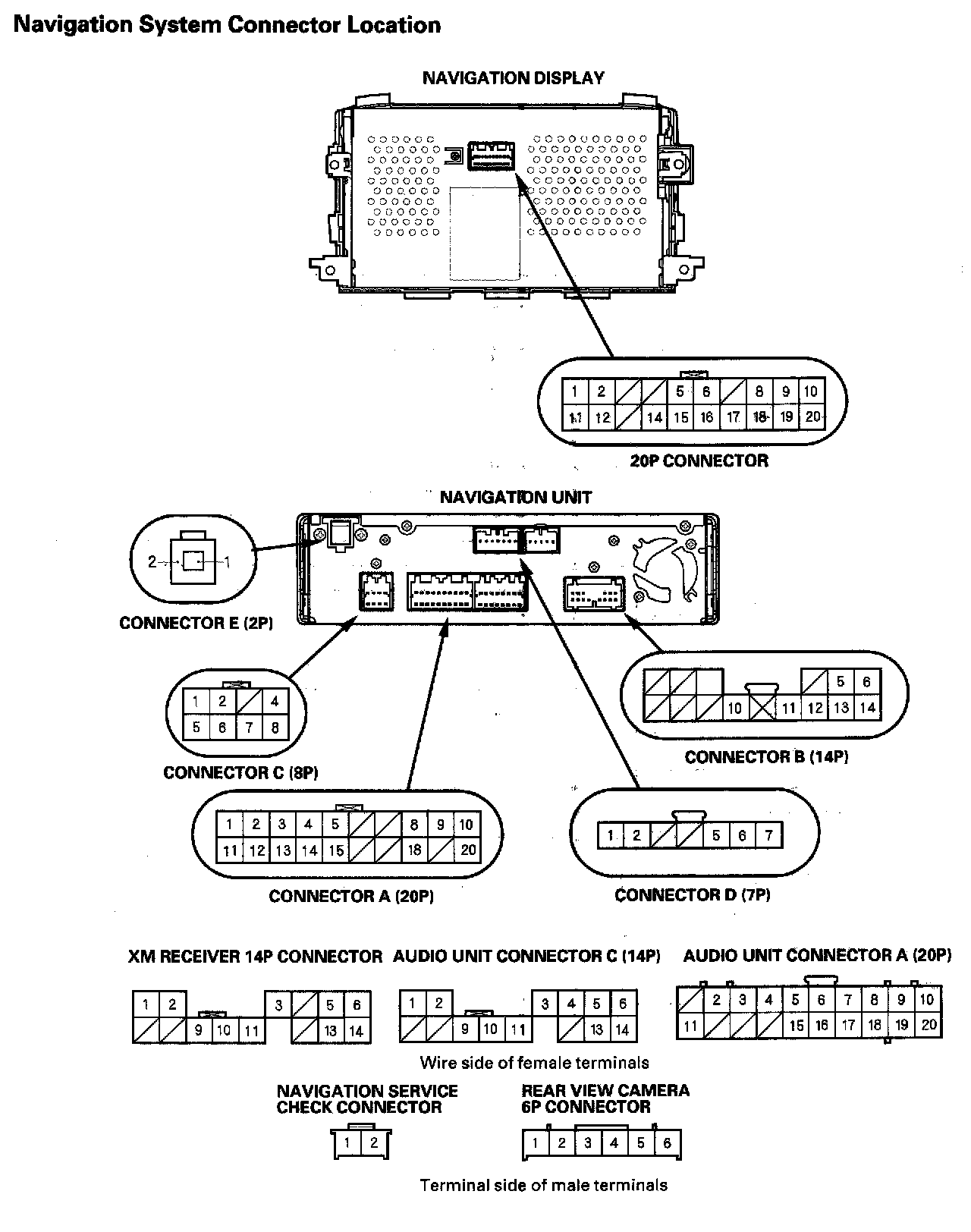

Navigation System Connector Location:

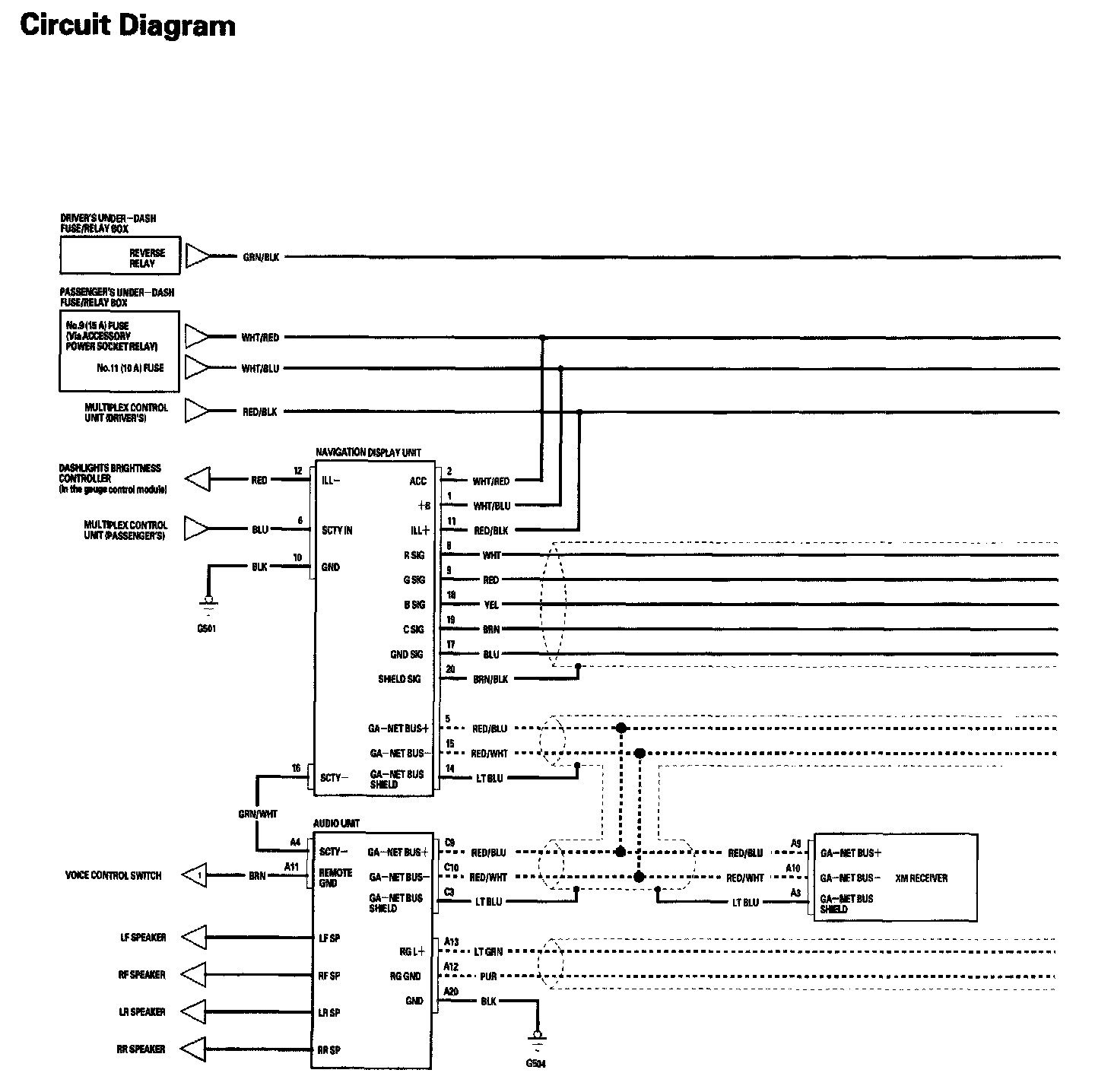

Navigation System - Circuit Diagram Part 1:

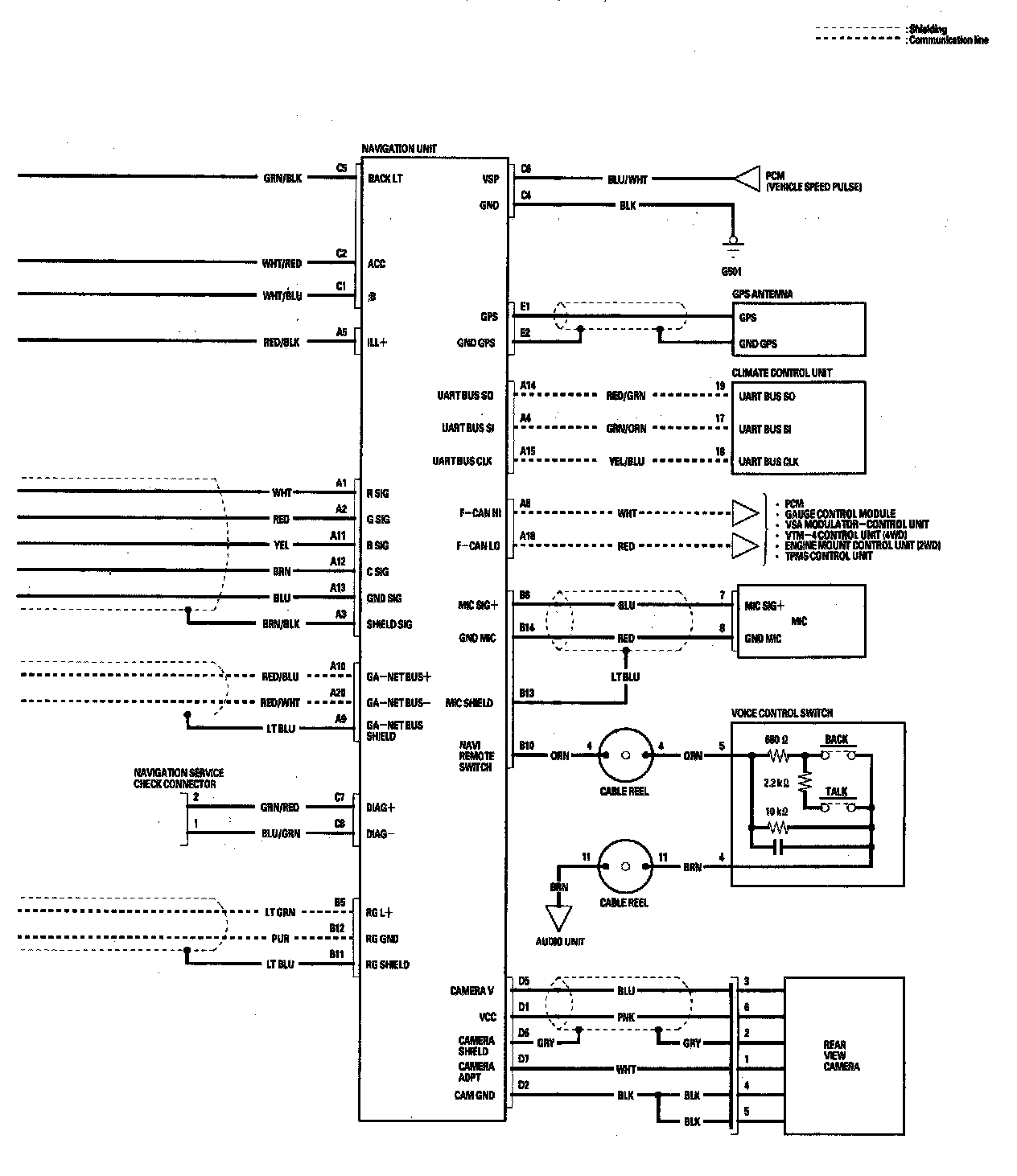

Navigation System - Circuit Diagram Part 2:
