Engine Mount Replacement

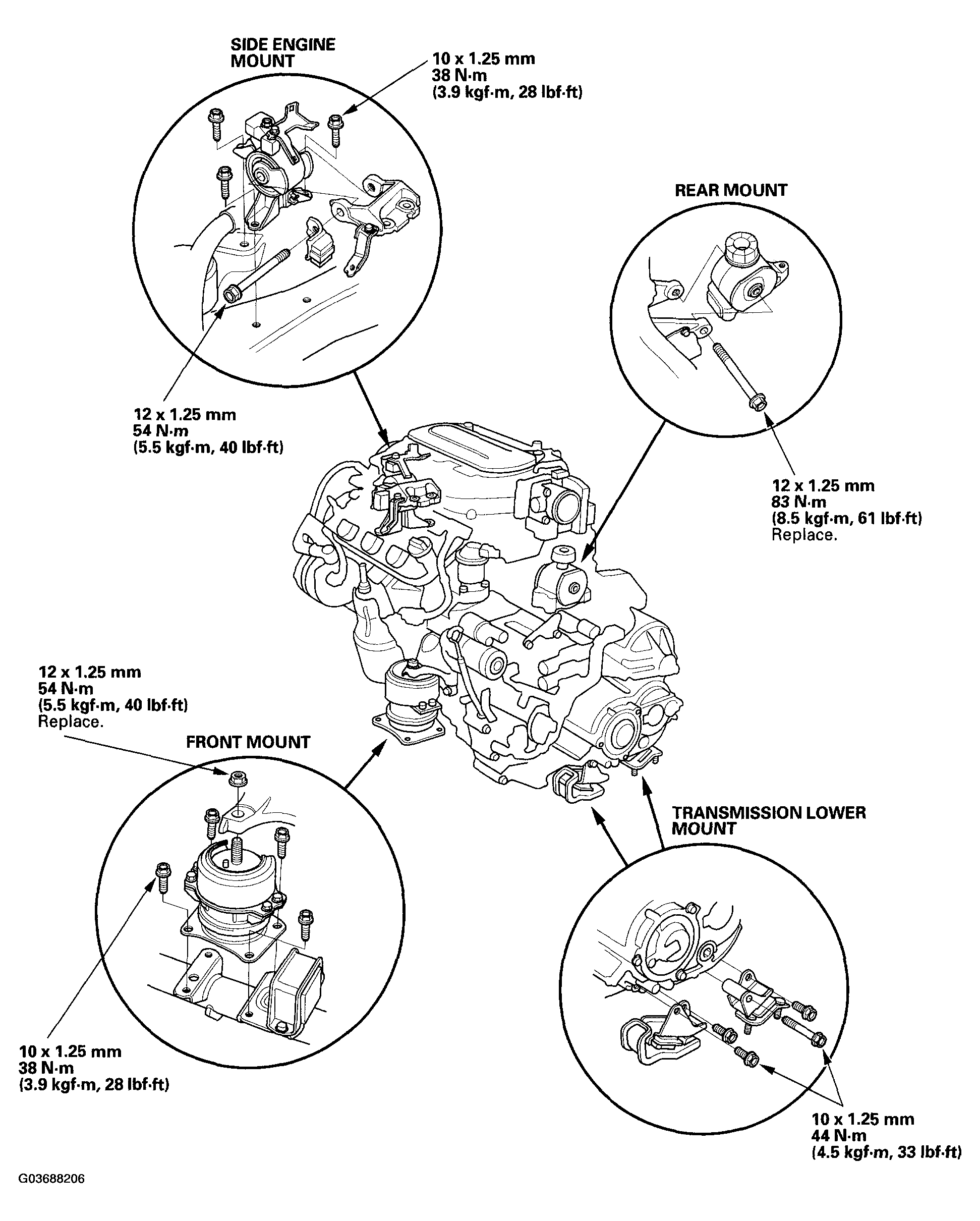

Fig 1: Locating Engine Mount With Torque Specifications
G03688206Courtesy of AMERICAN HONDA MOTOR CO., INC.
