Climate Control Unit Bulb Replacement

WARNING: This page is about a different car, the 2008 Honda Pilot, 2007 Honda Pilot, and 2006 Honda Pilot. However, it is still accessible from the selected car via links, so may be relevant.
  1. Discharge the static electricity (which accumulated on you when you removed the climate control unit) by touching the door striker or other body parts.
  2. Remove the self-tapping screws, then carefully separate the climate control unit cover (A) and the control unit (B) from the control unit display (C). Do not kink or pull on the wires between the display and the control unit. Do not touch the electronic components on the printed circuit board in the control unit.

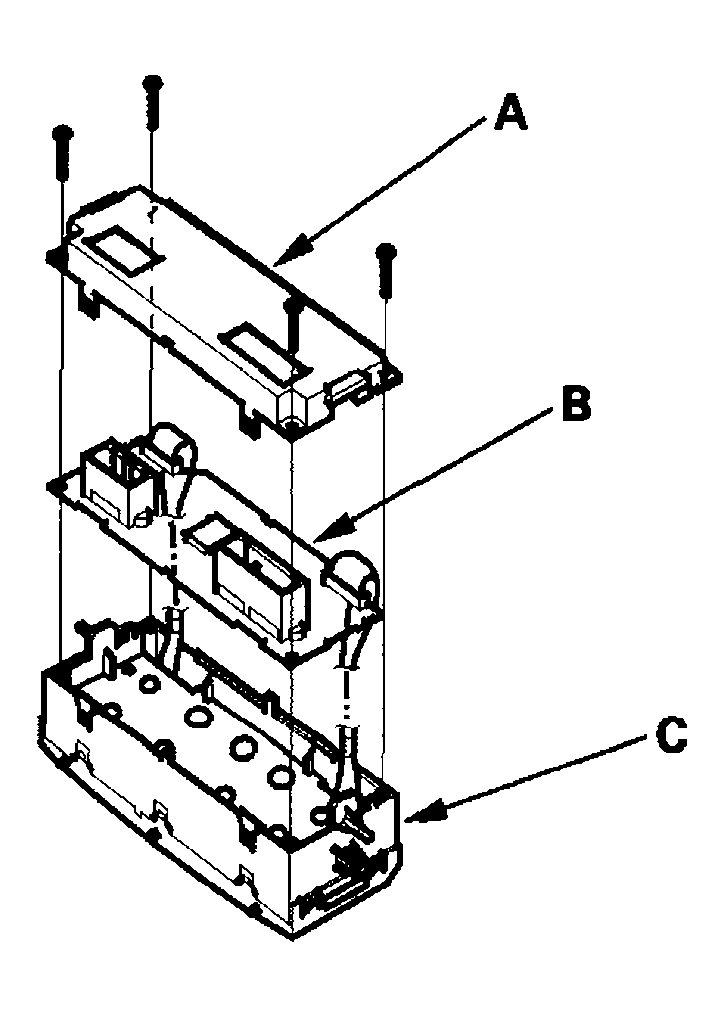

    Fig 1: Separating Climate Control Unit Cover & Control Unit From Control Unit Display
    G04246994Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bulb(s) with a flat-tip screwdriver.

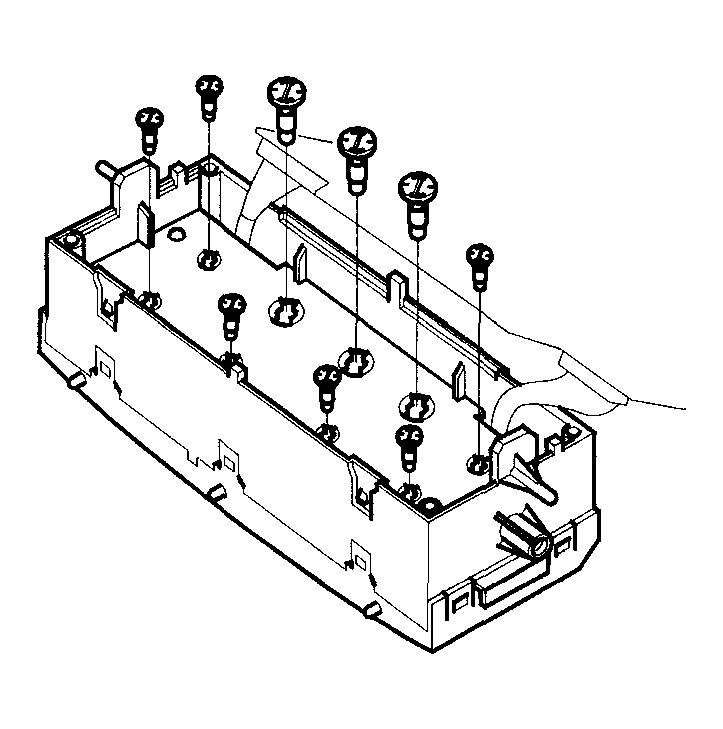

    Fig 2: Removing Bulbs
    G04246995Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the bulb(s) in the reverse order of removal.
