Shift Lever Disassembly/Reassembly

Apply silicon grease to movable joints.

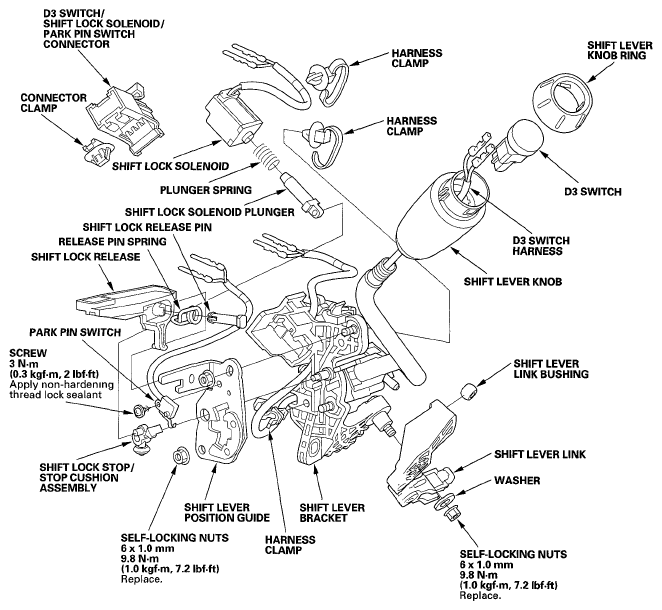

Fig 1: Disassembling View Of Shift Lever Components With Torque Specifications
G05592532Courtesy of AMERICAN HONDA MOTOR CO., INC.
