Navigation Module: Locations

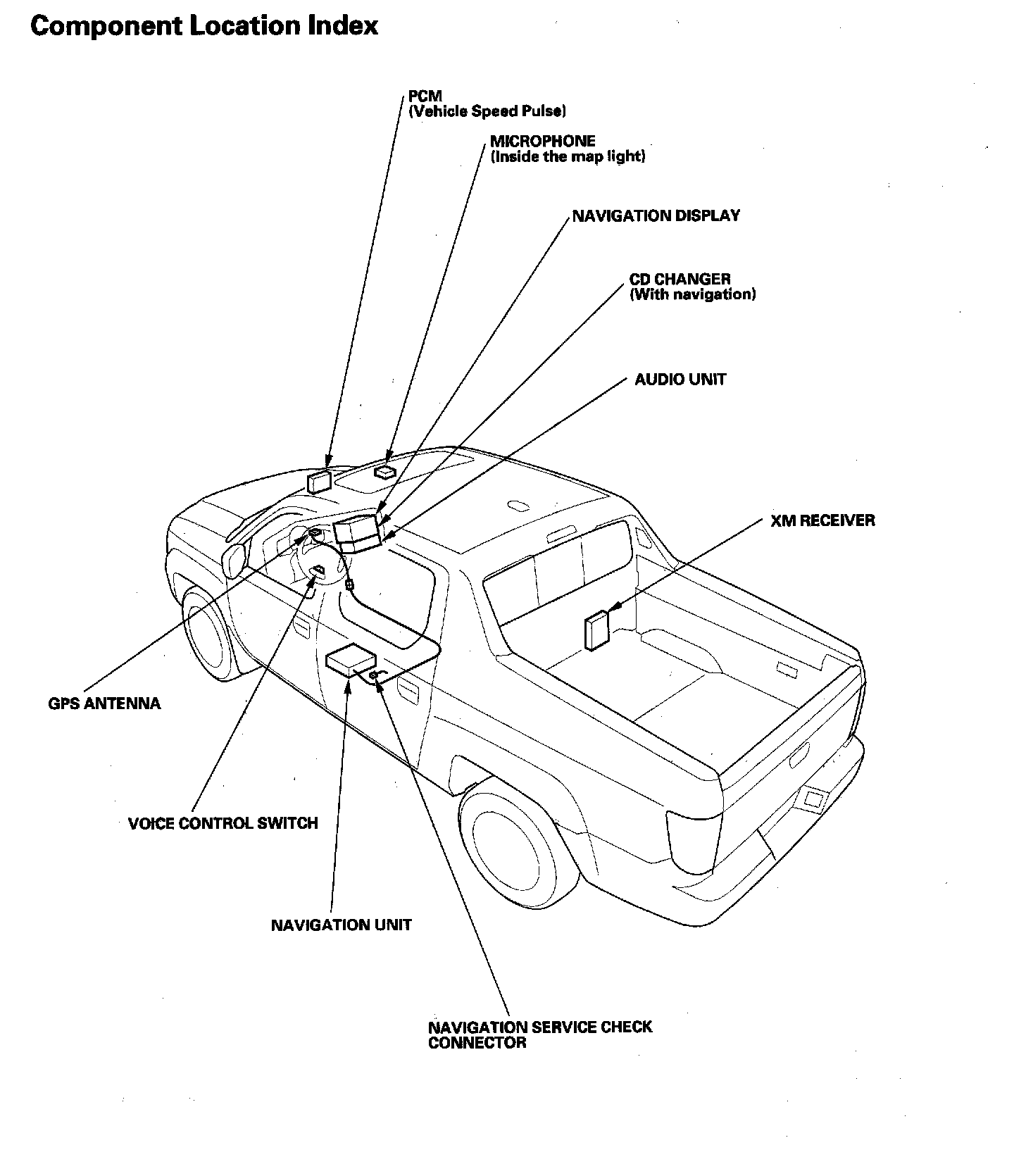

Navigation System - Component Location Index:

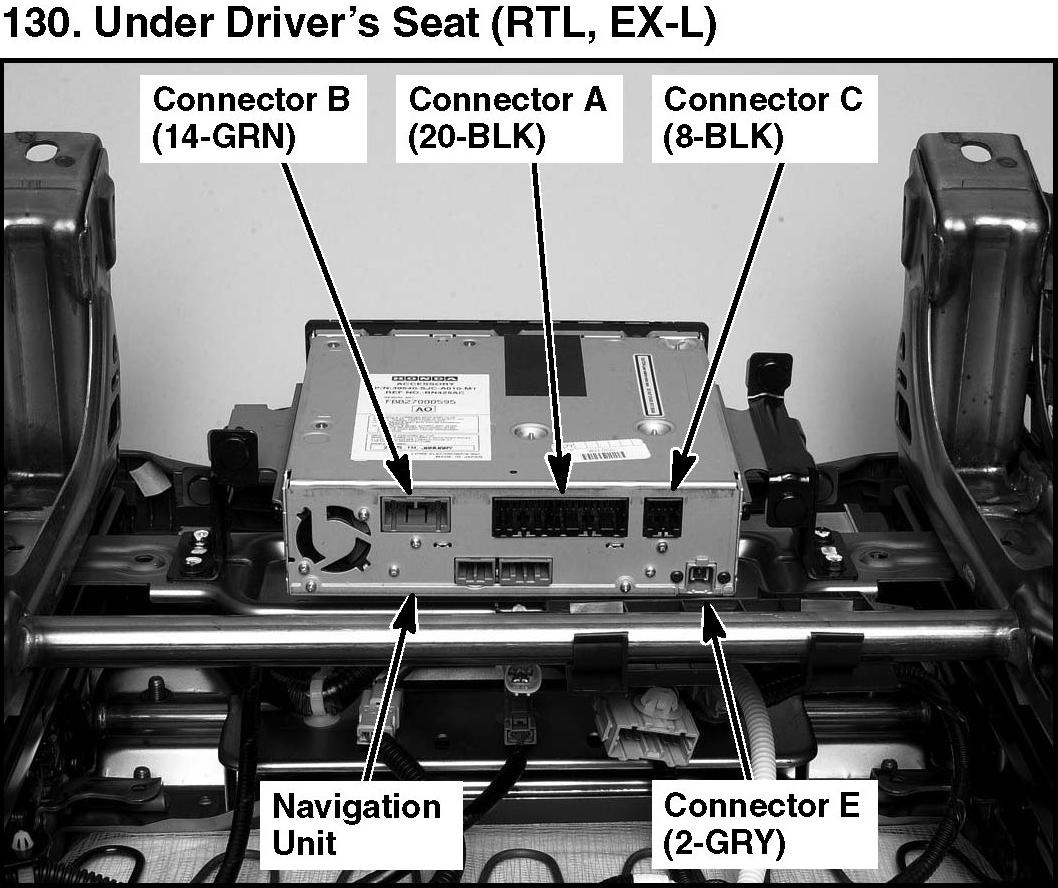

130. Under Driver's Seat (RTL, EX-L):

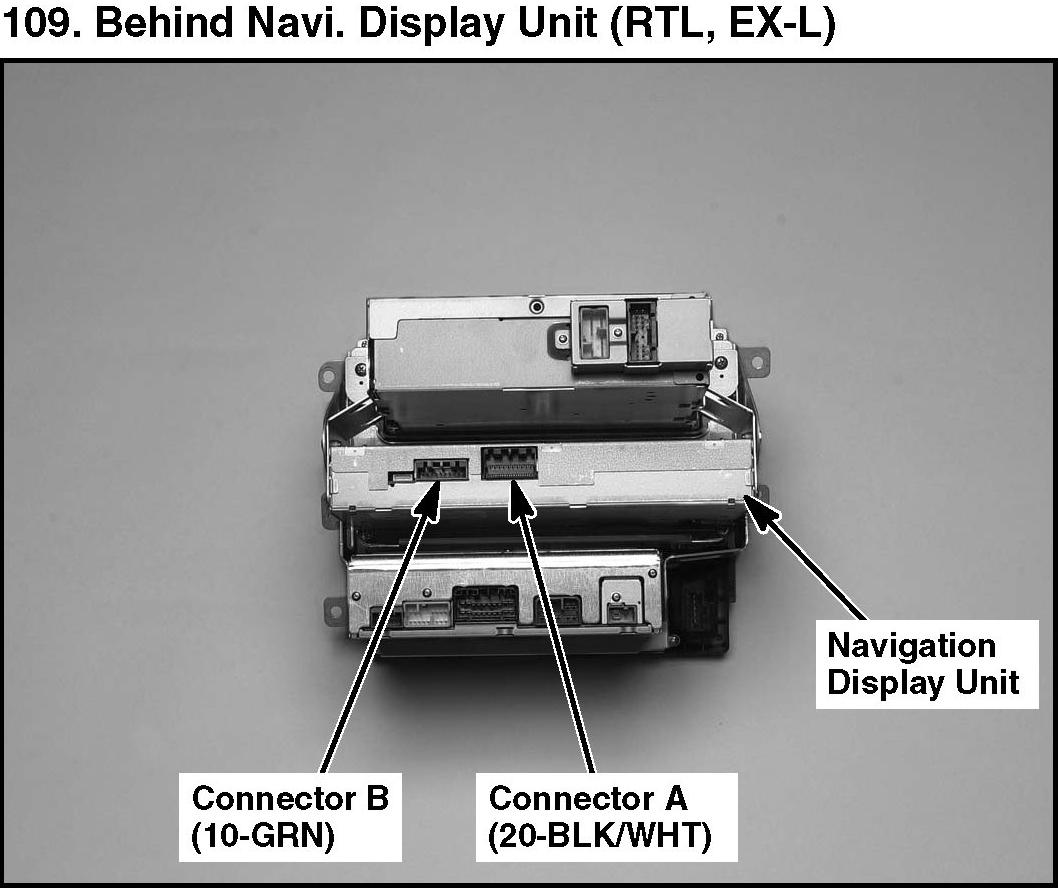

109. Behind Navi. Display Unit (RTL, EX-L):
