PCM Circuit Diagrams

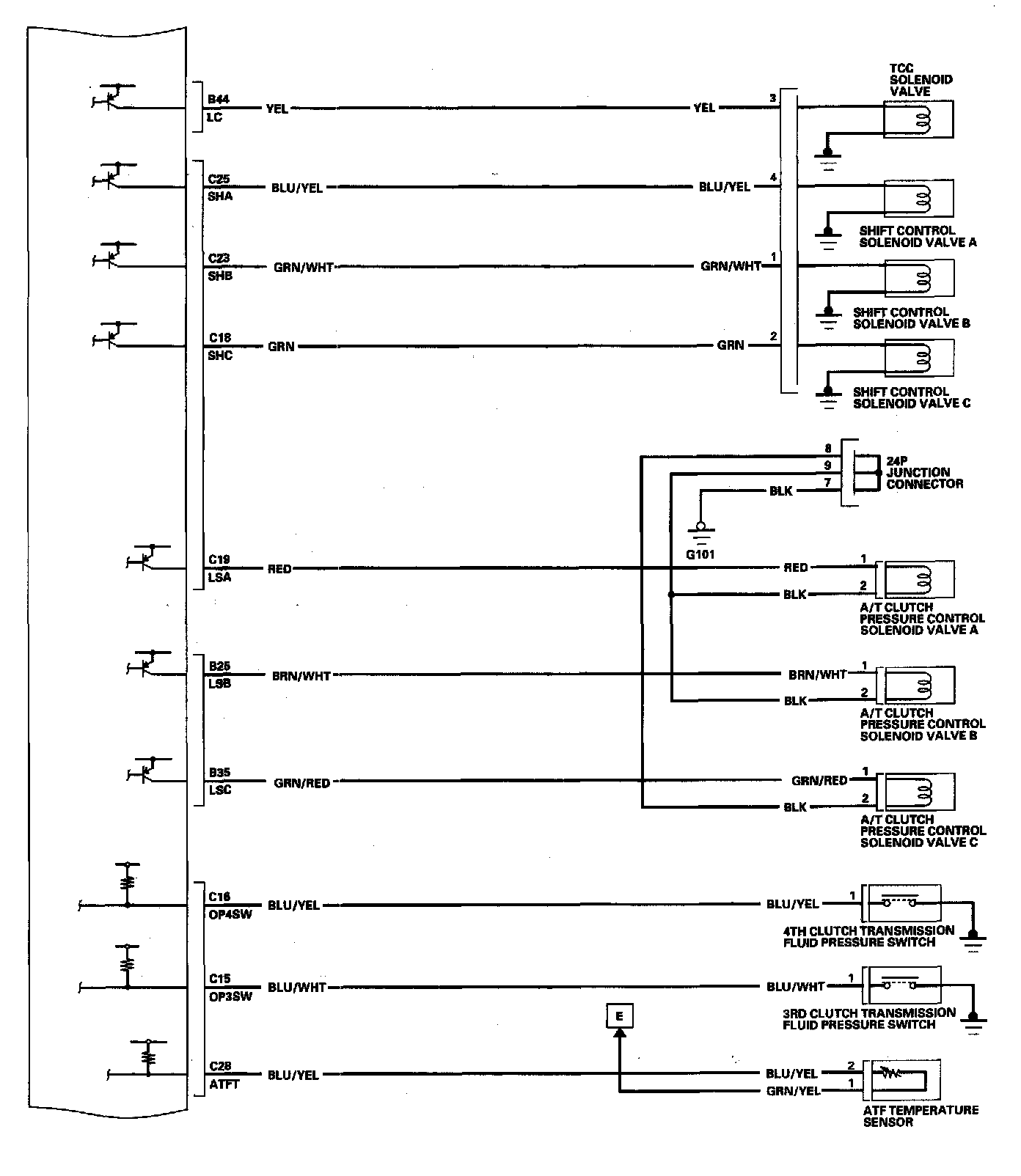

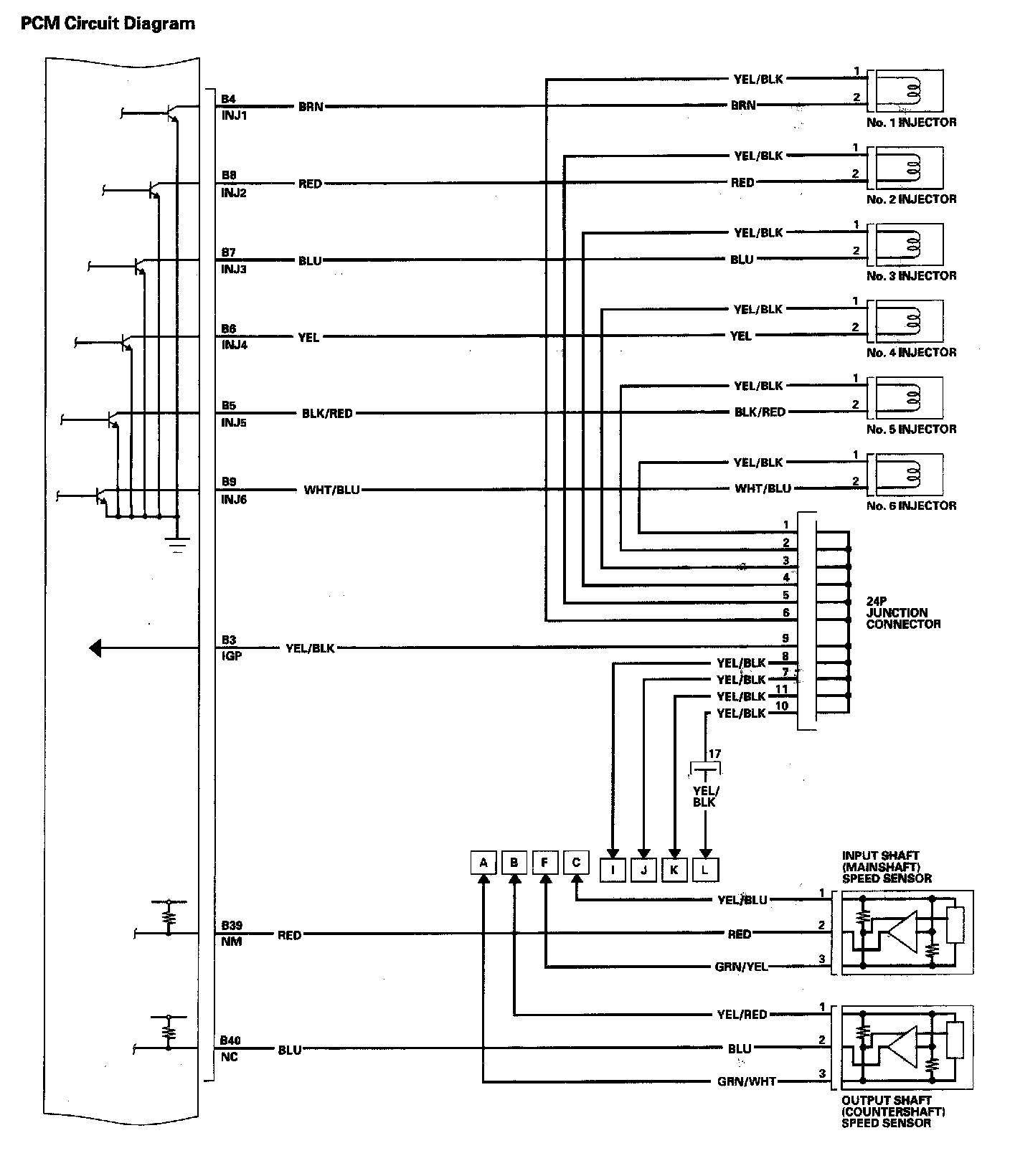

PCM Circuit Diagram 11-42:

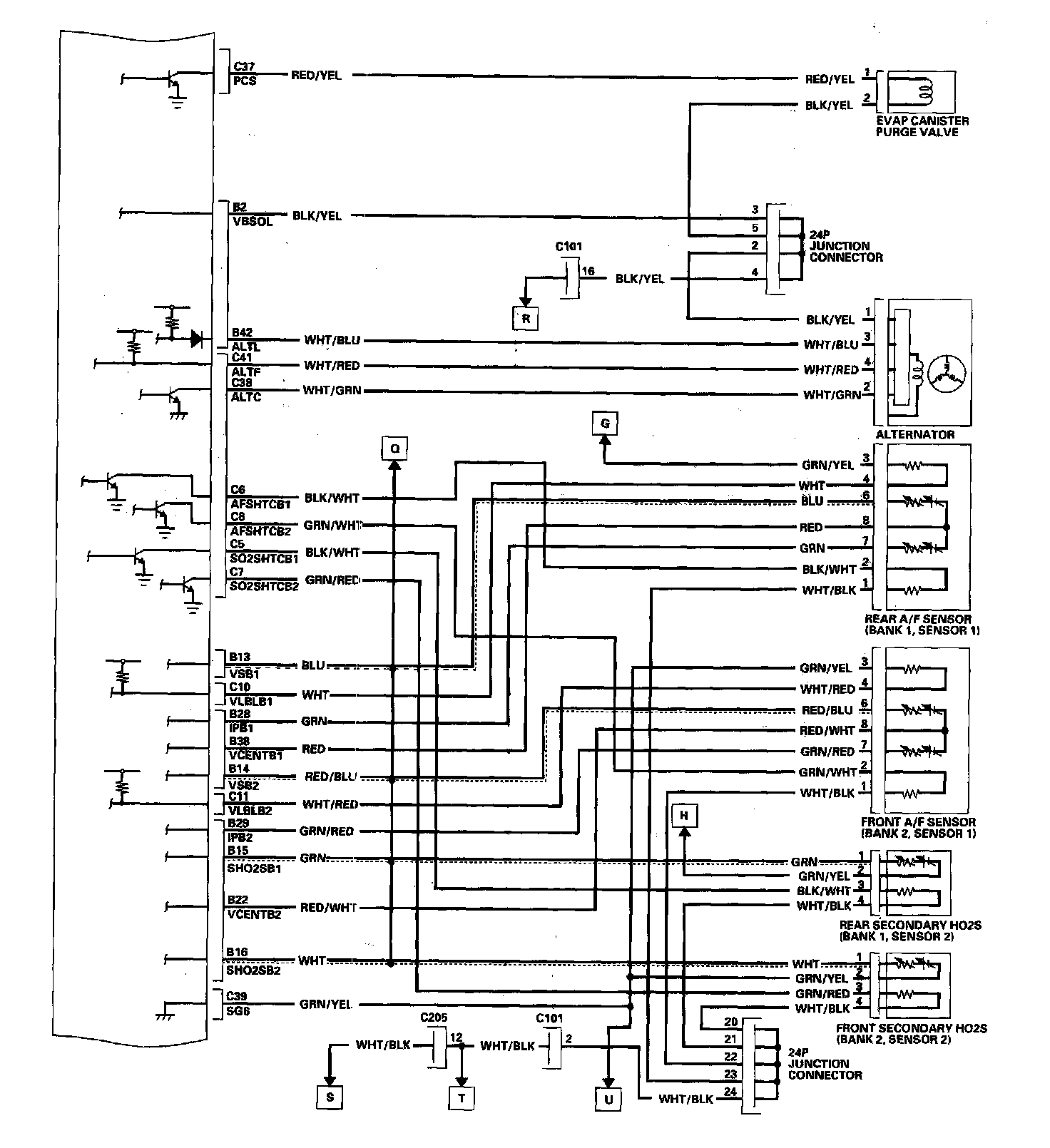

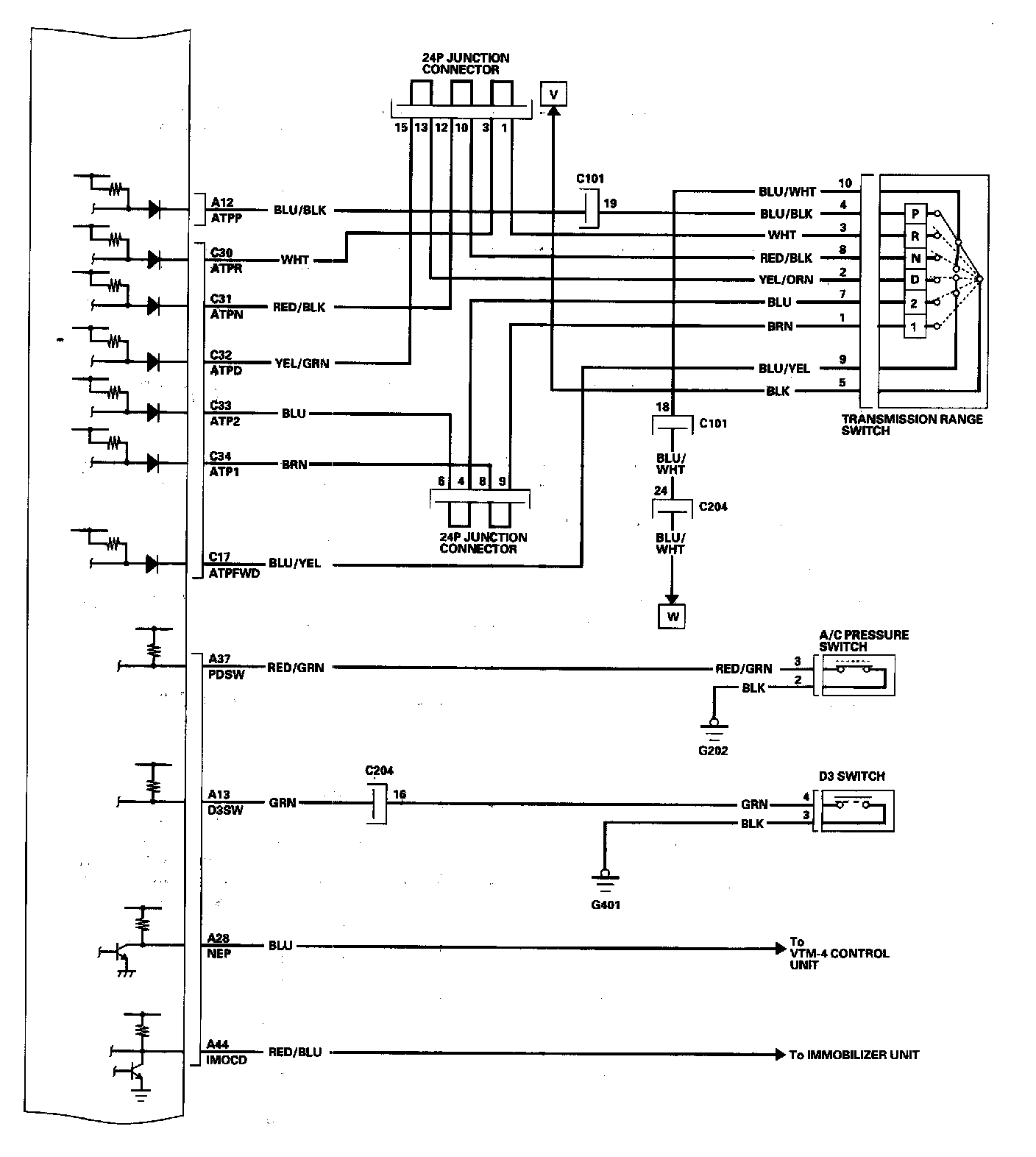

PCM Circuit Diagram 11-43:

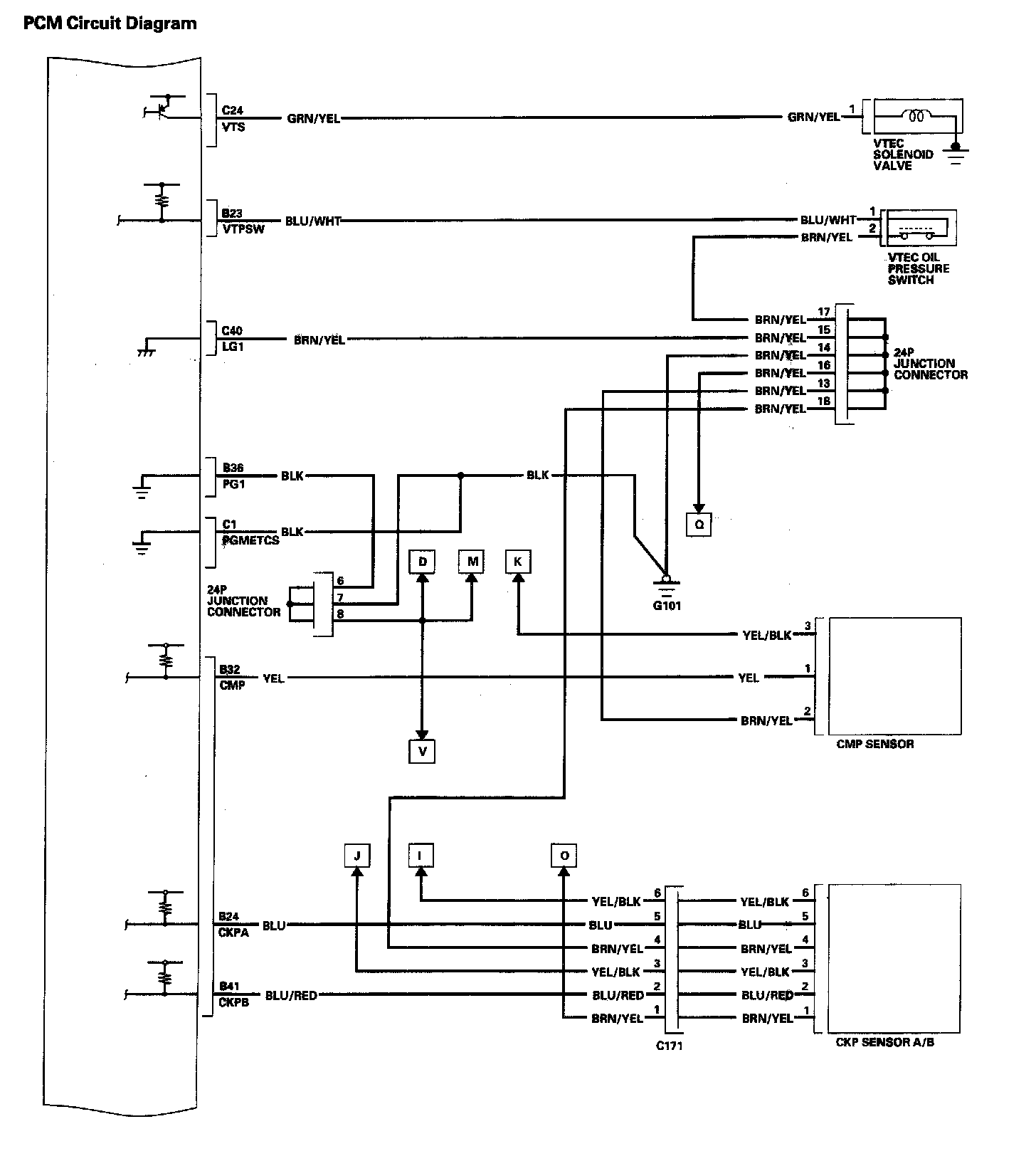

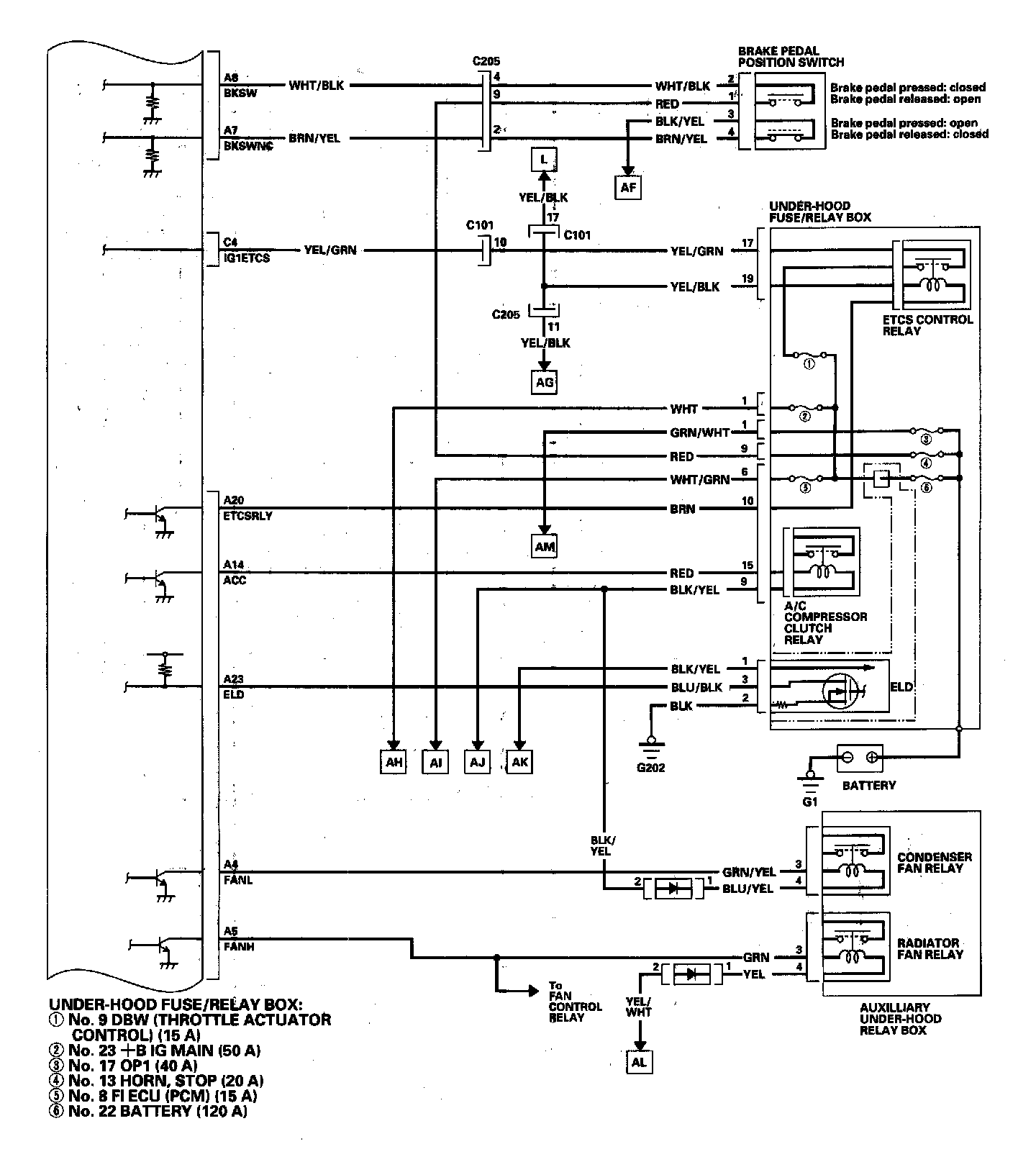

PCM Circuit Diagram 11-44:

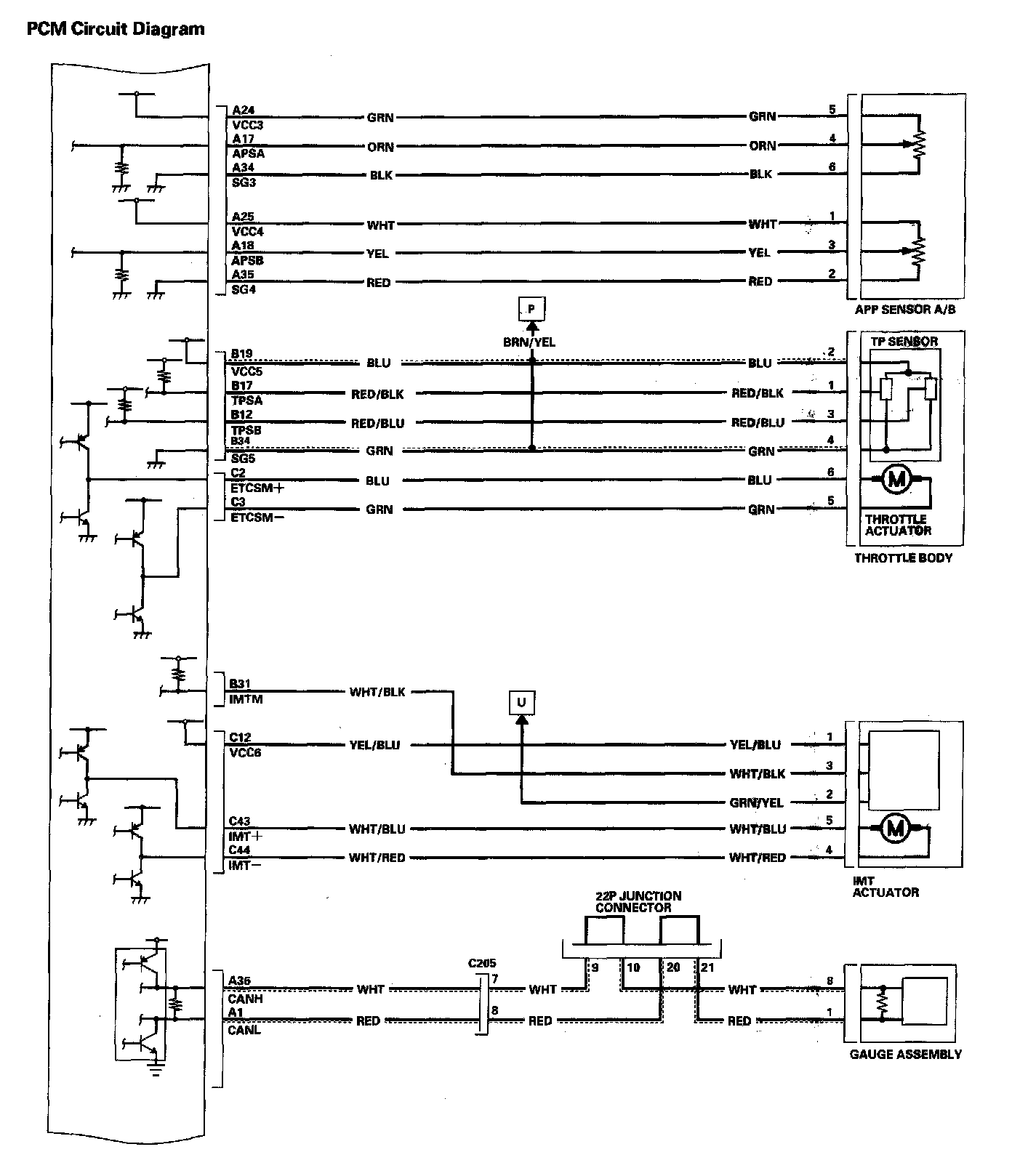

PCM Circuit Diagram 11-45:

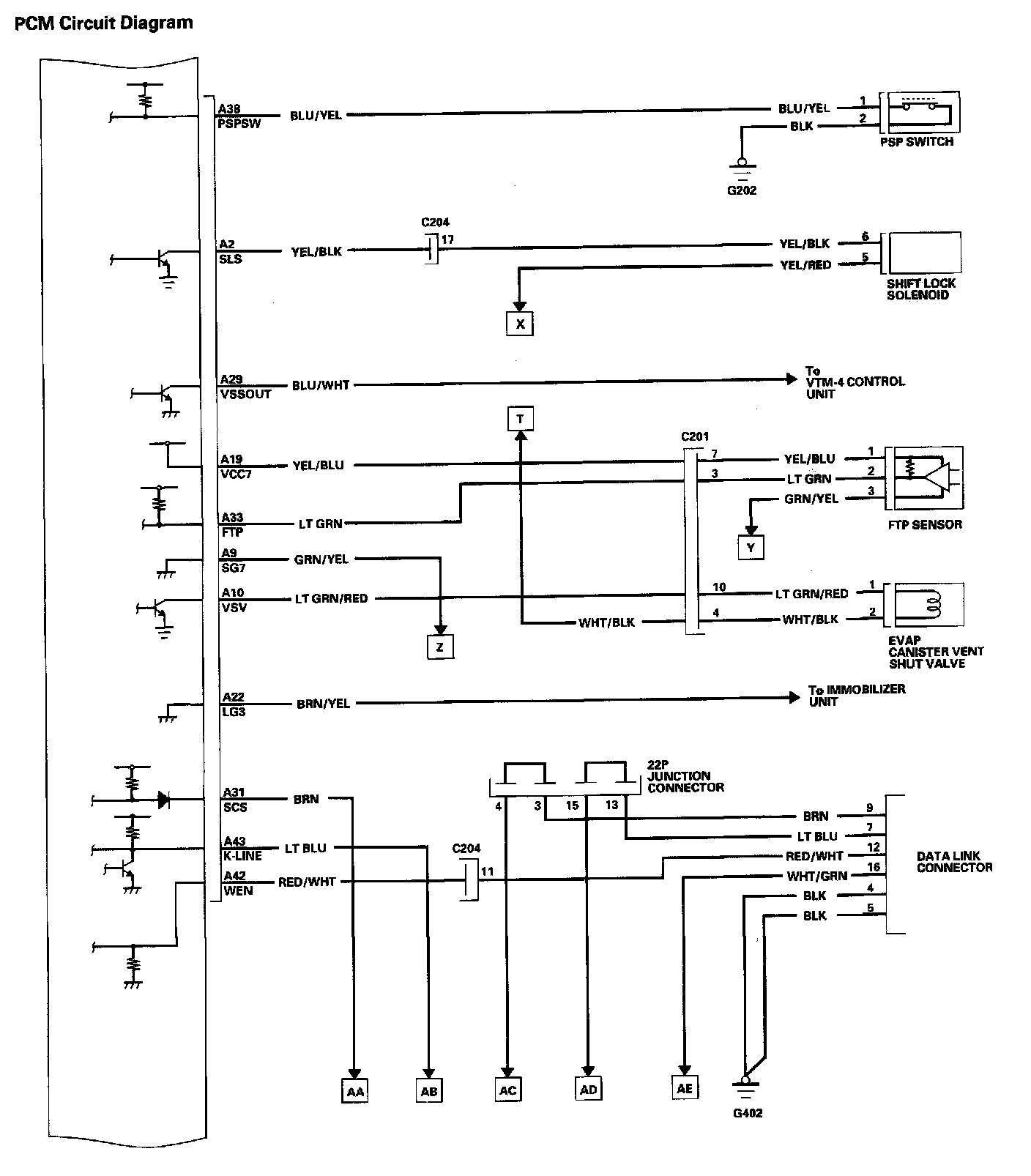

PCM Circuit Diagram 11-46:

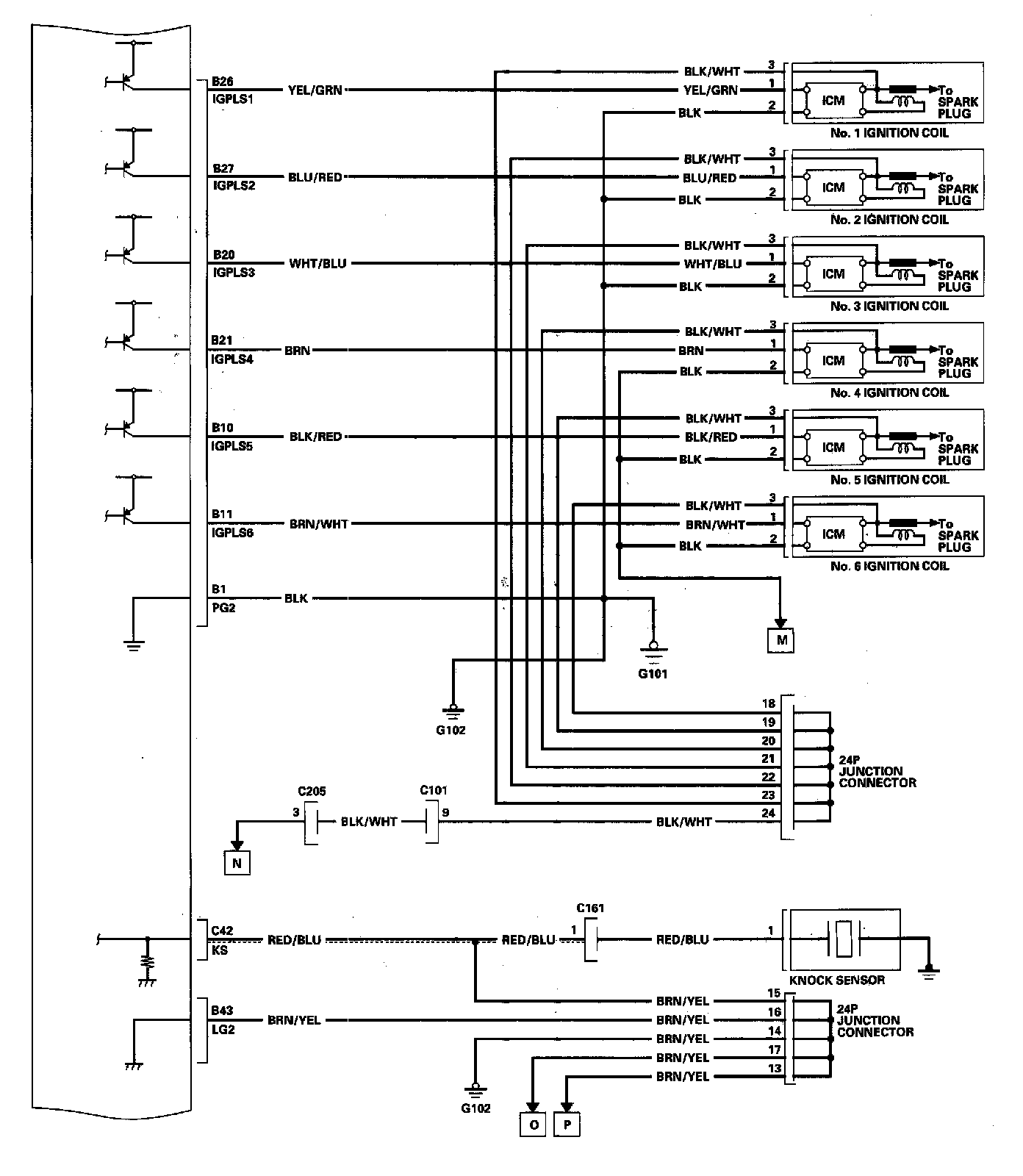

PCM Circuit Diagram 11-47:

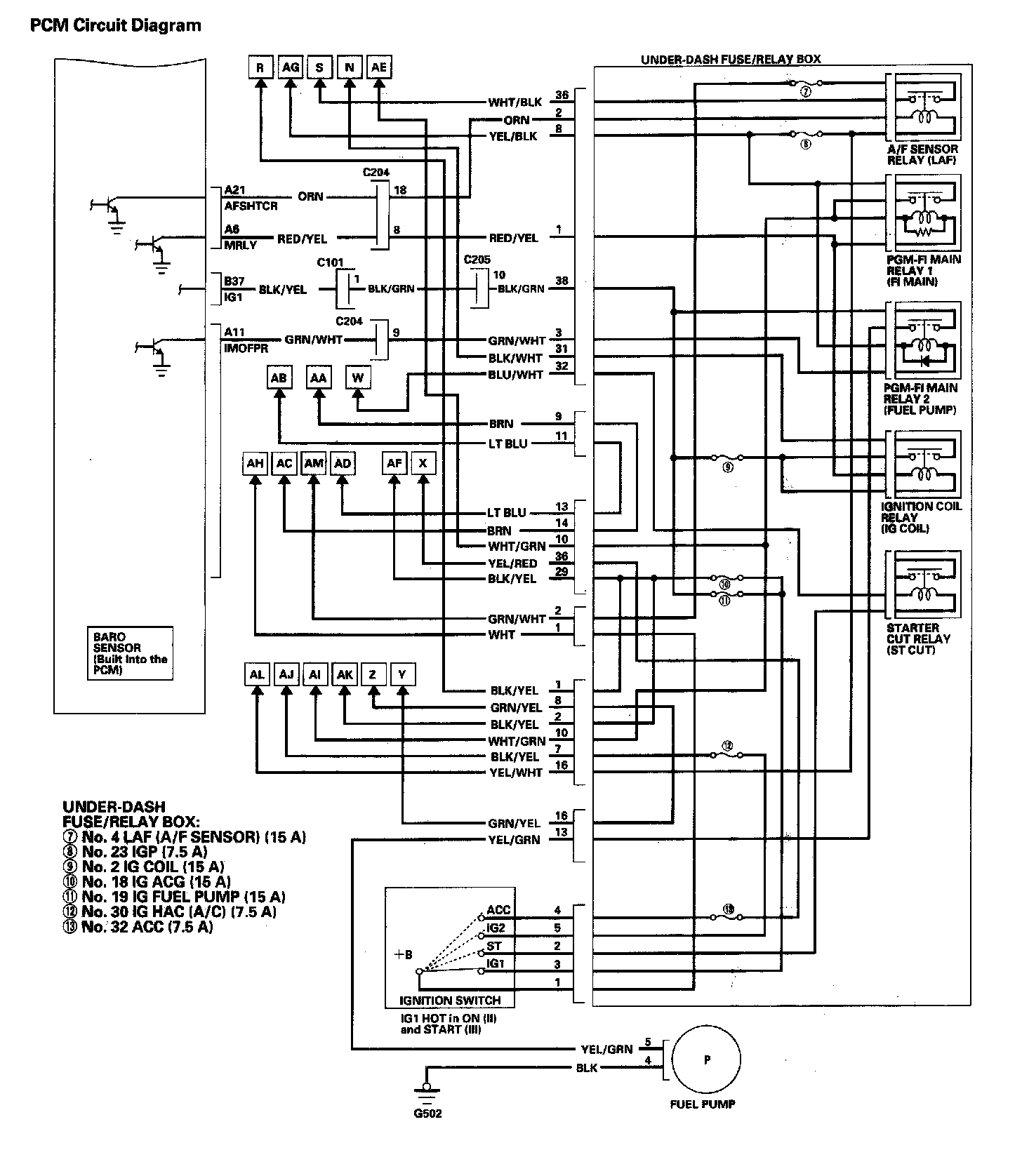

PCM Circuit Diagram 11-48:

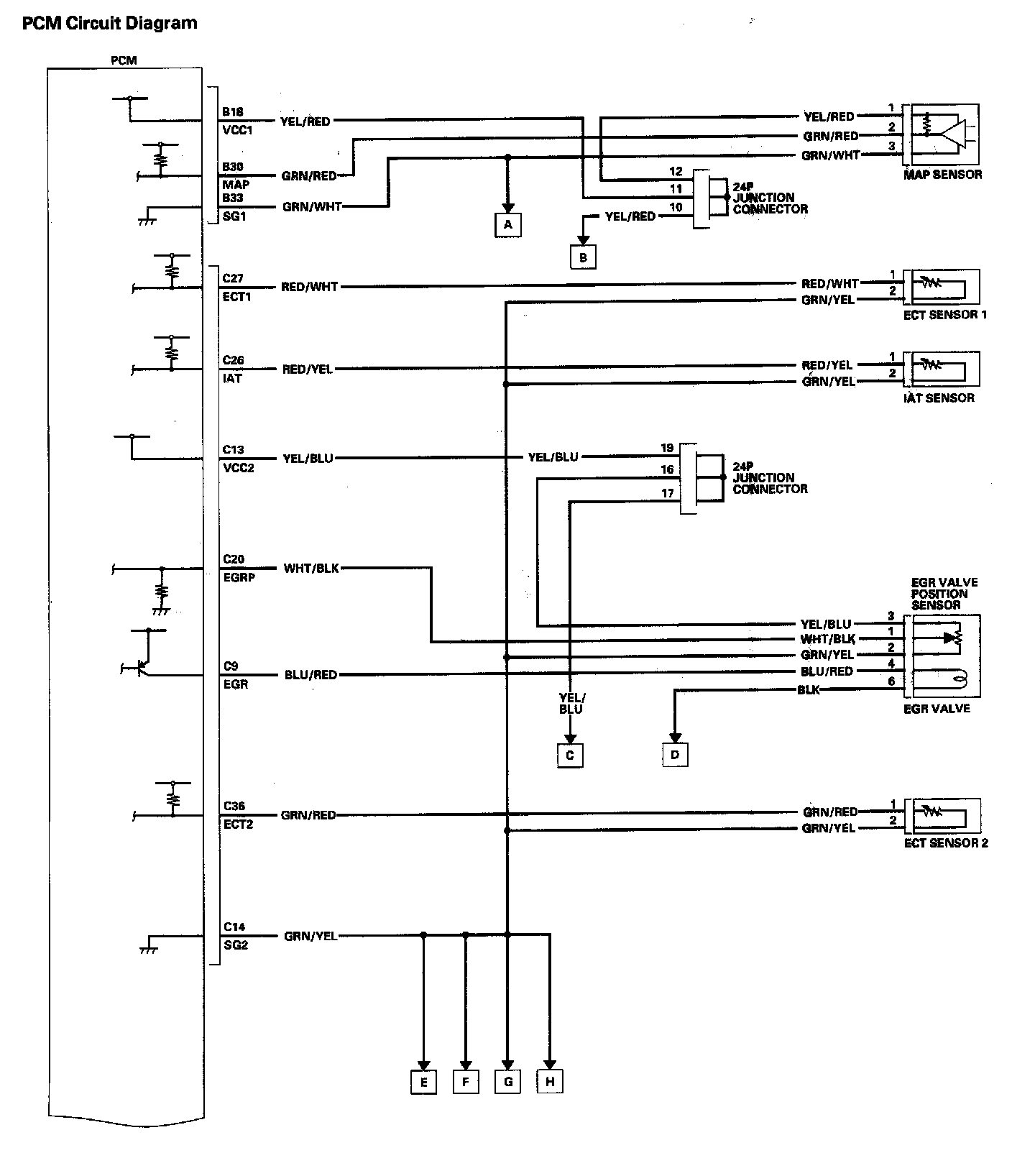

PCM Circuit Diagram 11-49:



PCM Circuit Diagram 11-50:



PCM Circuit Diagram 11-51:



PCM Circuit Diagram 11-52:
