Component Locations

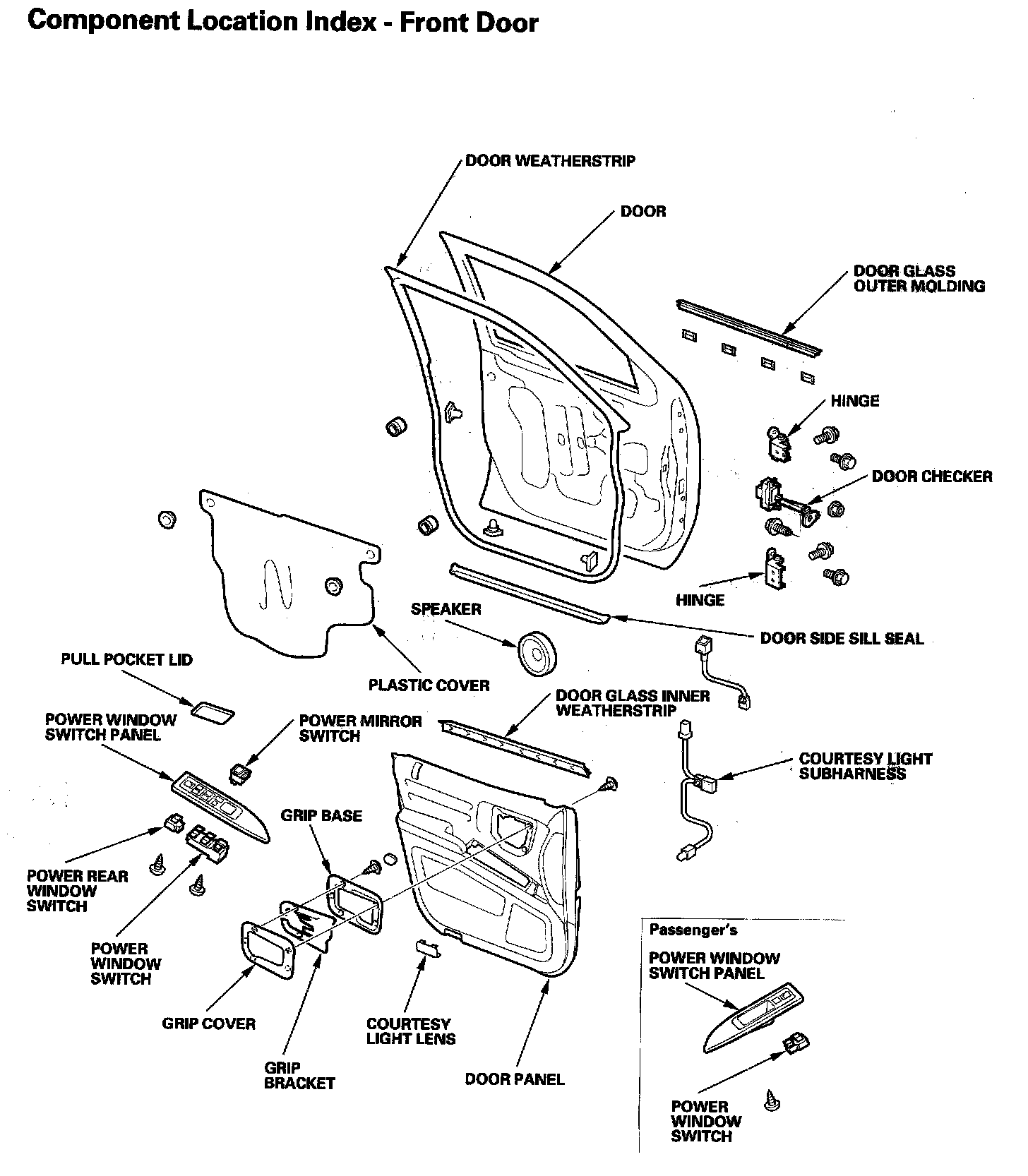

Doors - Component Location Index - Front Door:

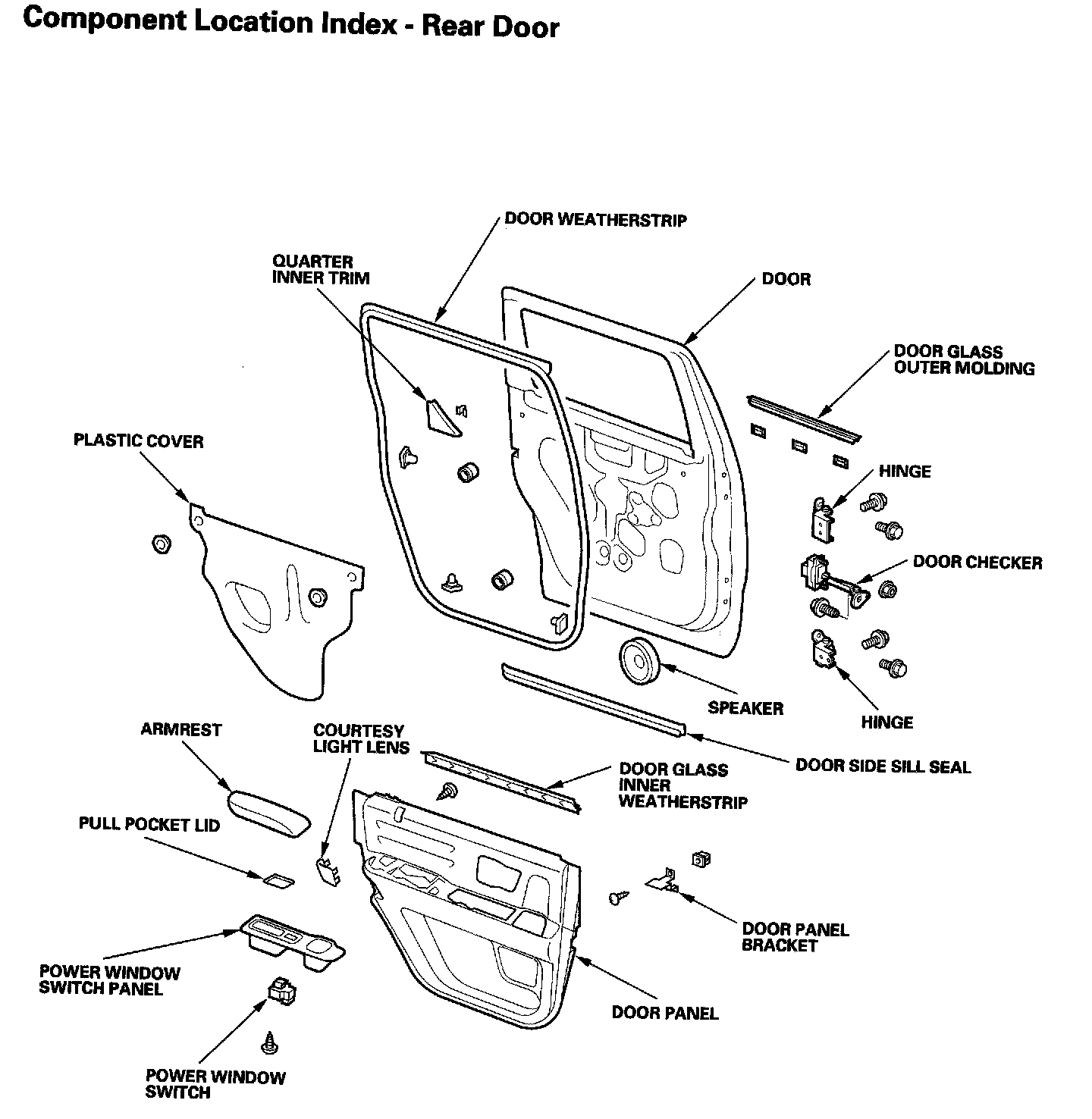

Doors - Component Location Index - Rear Door:



Power Window - Component Location Index:

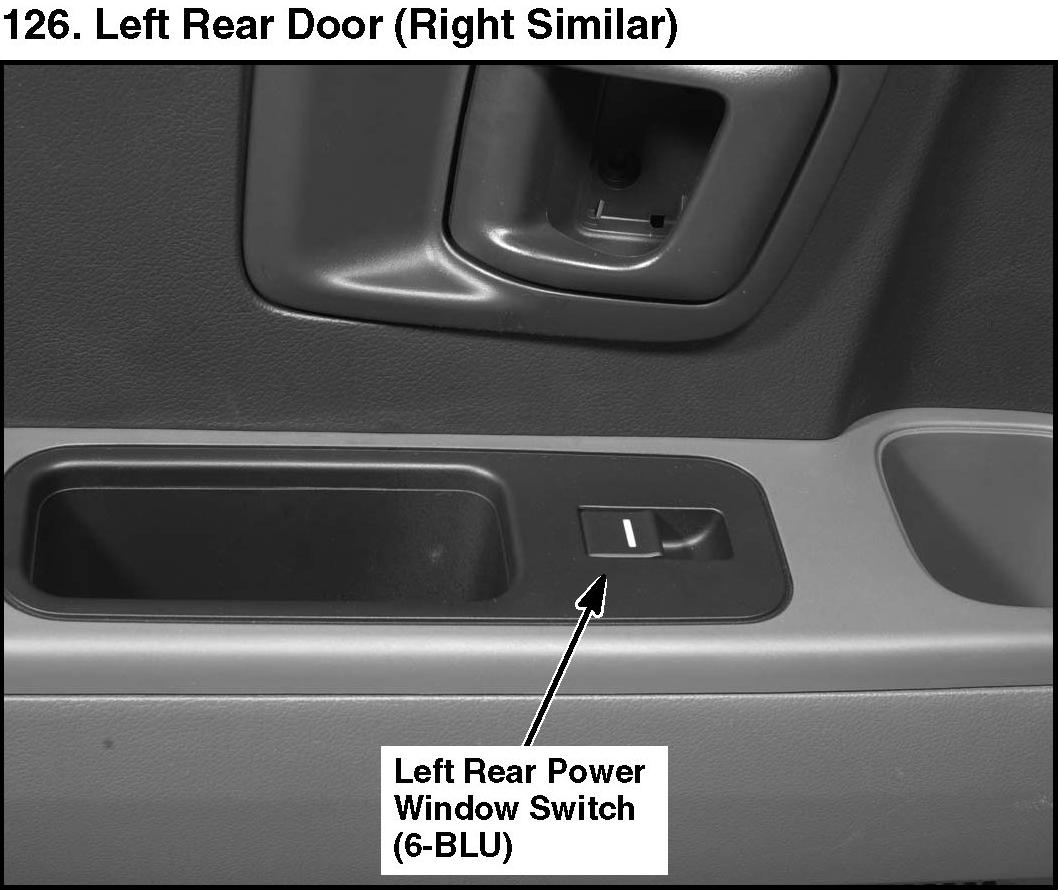

126. Left Rear Door (Right Similar):

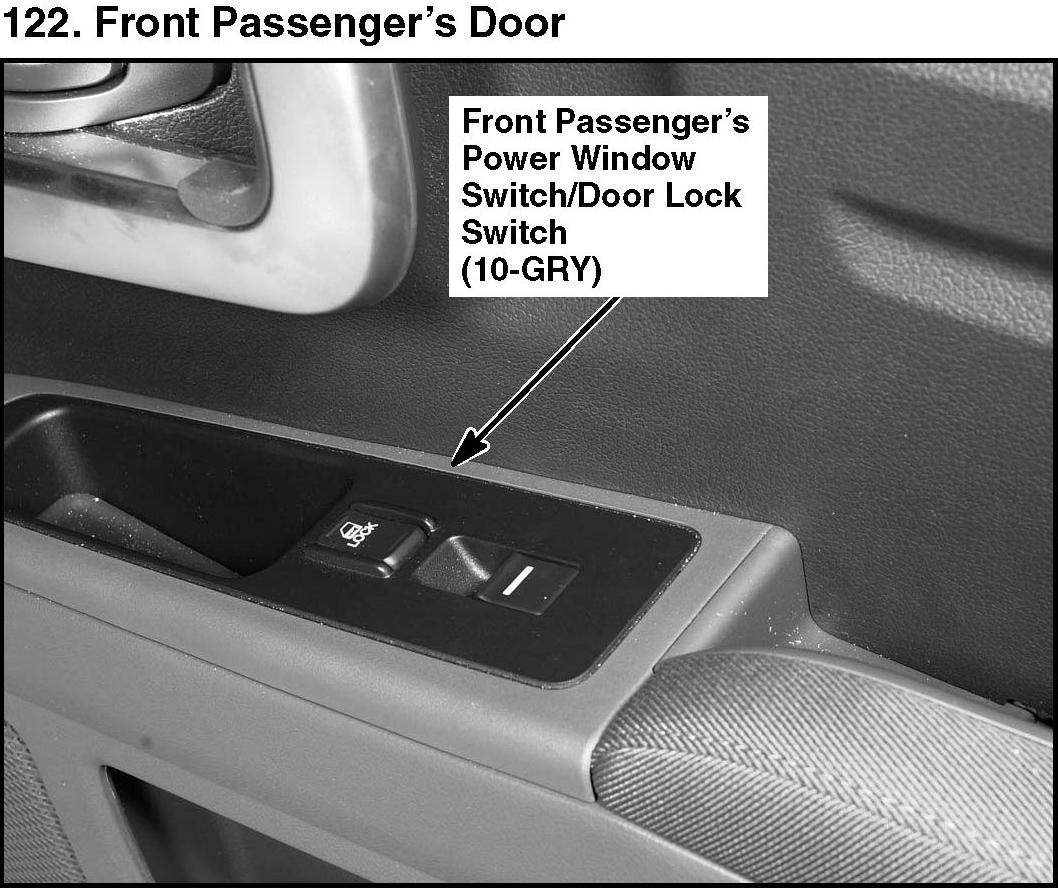

122. Front Passenger's Door:

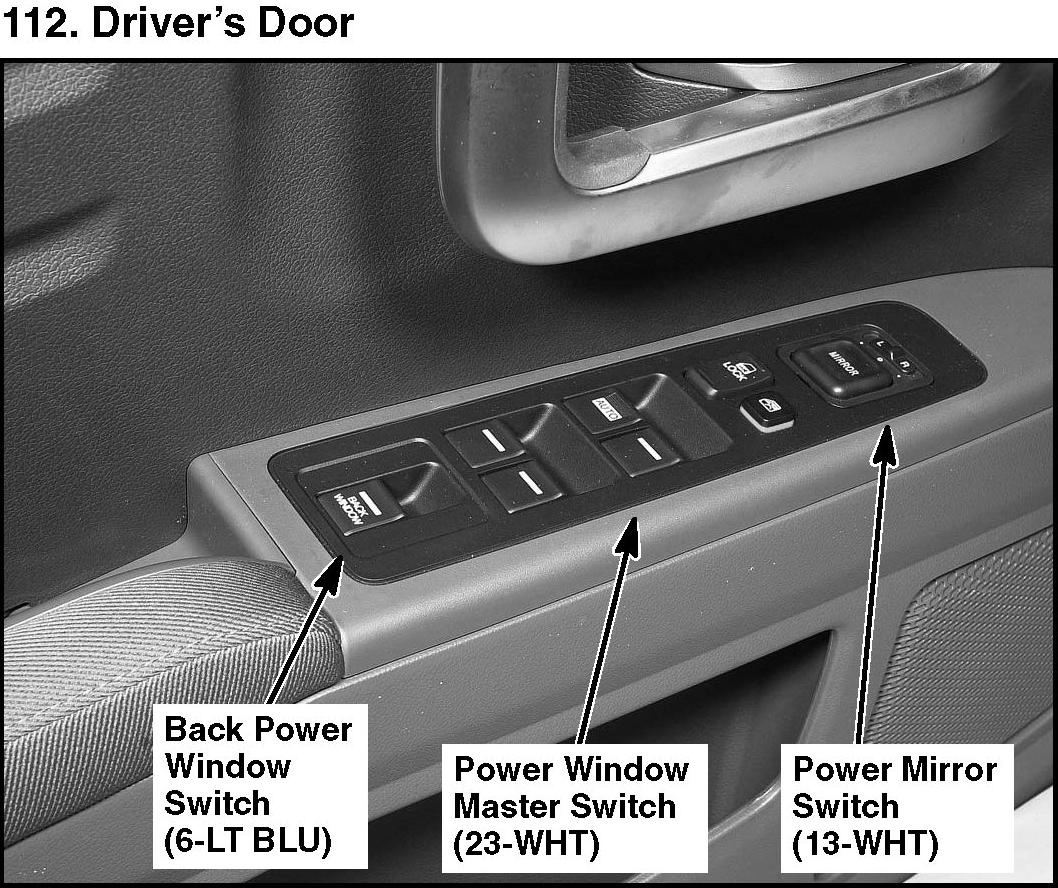

112. Driver's Door:
