Inner Fender Replacement

Inner Fender Replacement

NOTE: Take care not to scratch the body.

1. Remove the front wheel.

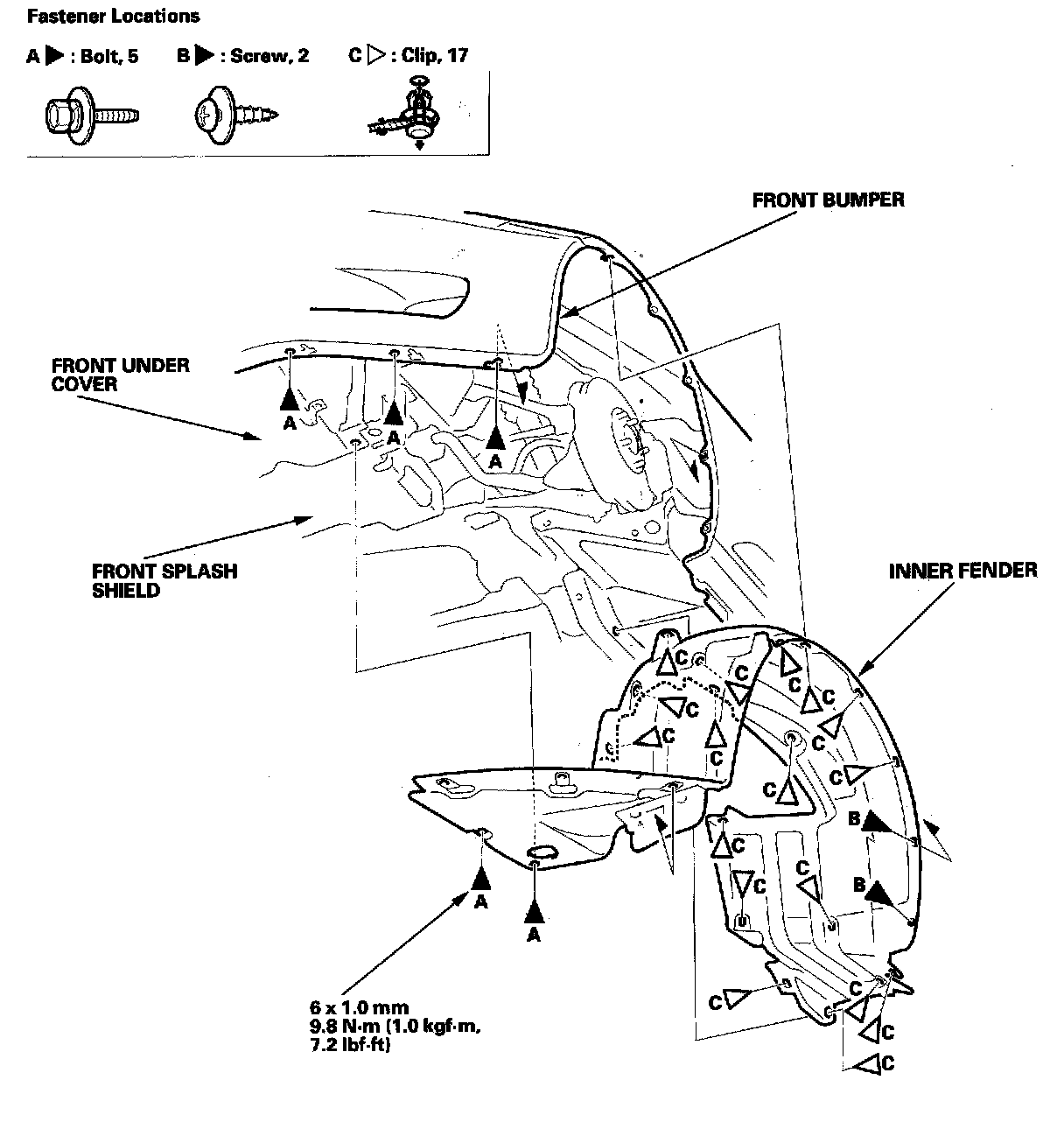

2. Remove the inner fender as shown.




3. Install the inner fender in the reverse order of removal, and note these items:
- Check for damaged or stress-whitened clips, and replace them with new ones.
- Push the clips into place securely.
