Compressor Clutch Relay: Locations

Heating/Air Conditioning - Component Location Index:

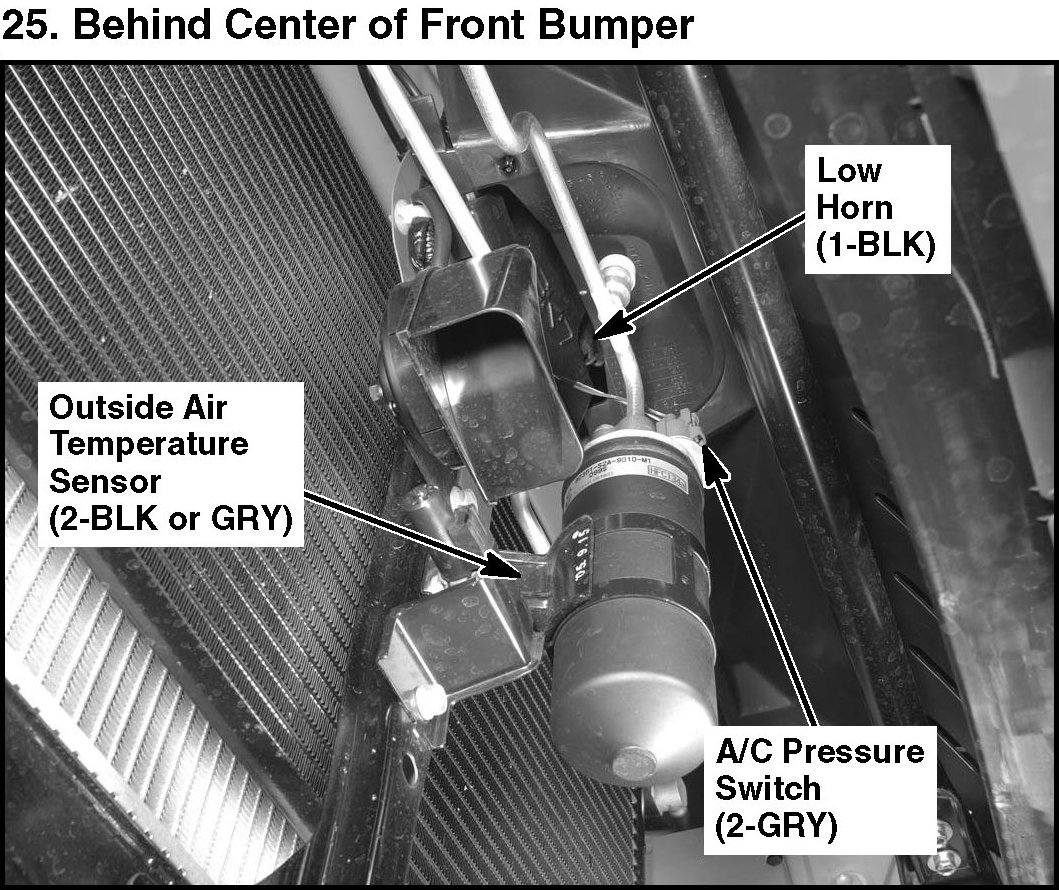

25. Behind Center Of Front Bumper:
