Throttle Actuator Control Module Replacement

  1. Remove the right kick panel (see TRIM REMOVAL/INSTALLATION - DOOR AREAS ).
  2. Disconnect the throttle actuator control module 16P connector (A).

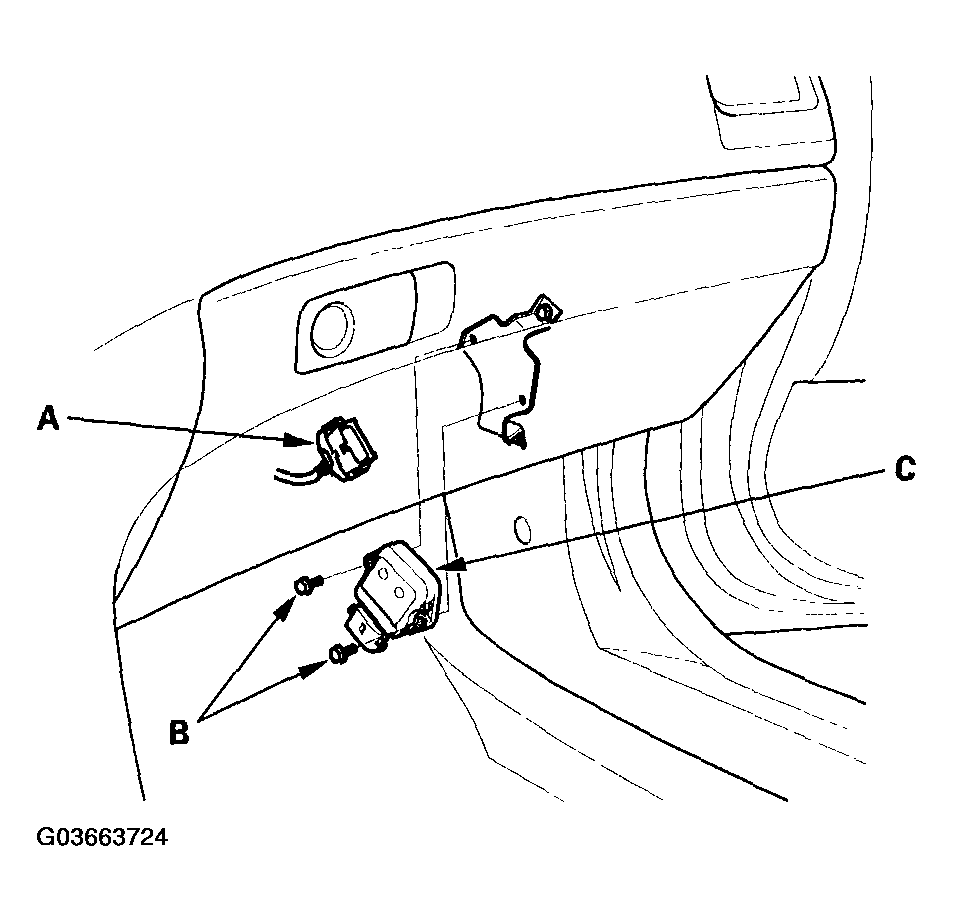

    Fig 1: Disconnecting Throttle Actuator Control Module 16P Connector (A)
    G03663724Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bolts (B) and the throttle actuator control module (C).
  4. Install the control module in the reverse order of removal.
