Engine Control Module: Locations

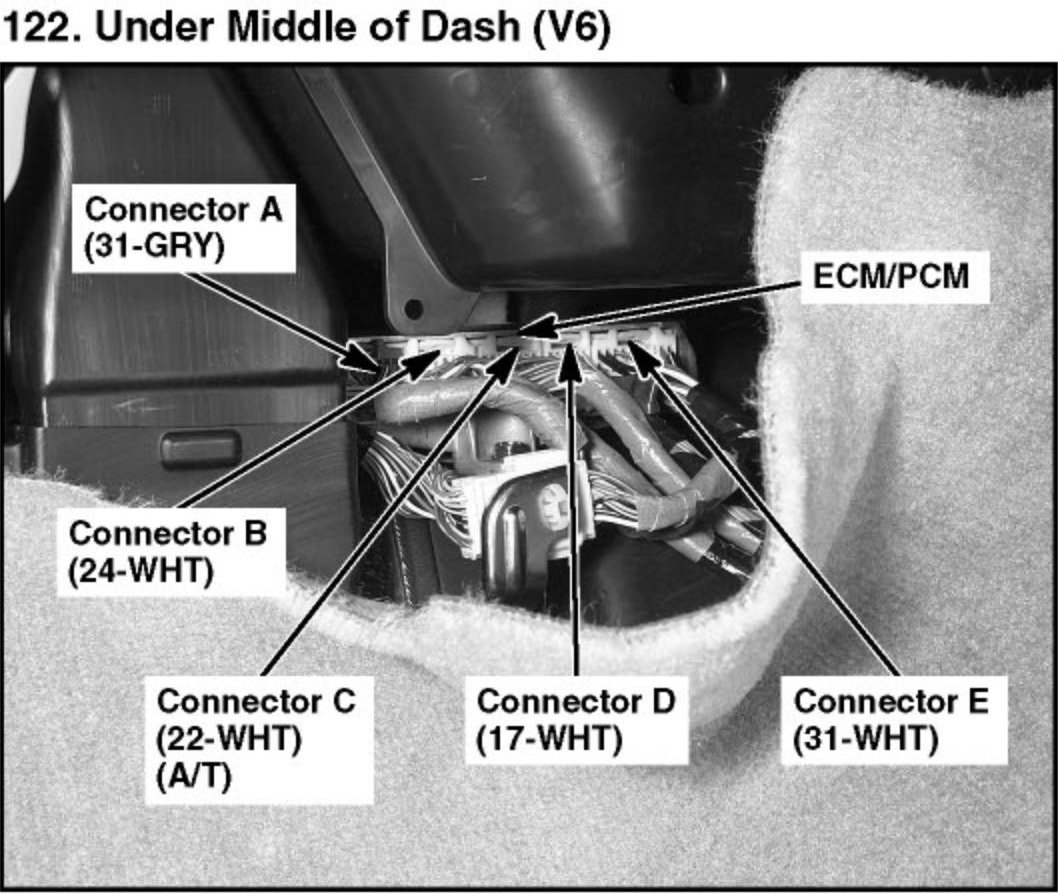

122. Under Middle of Dash (V6):

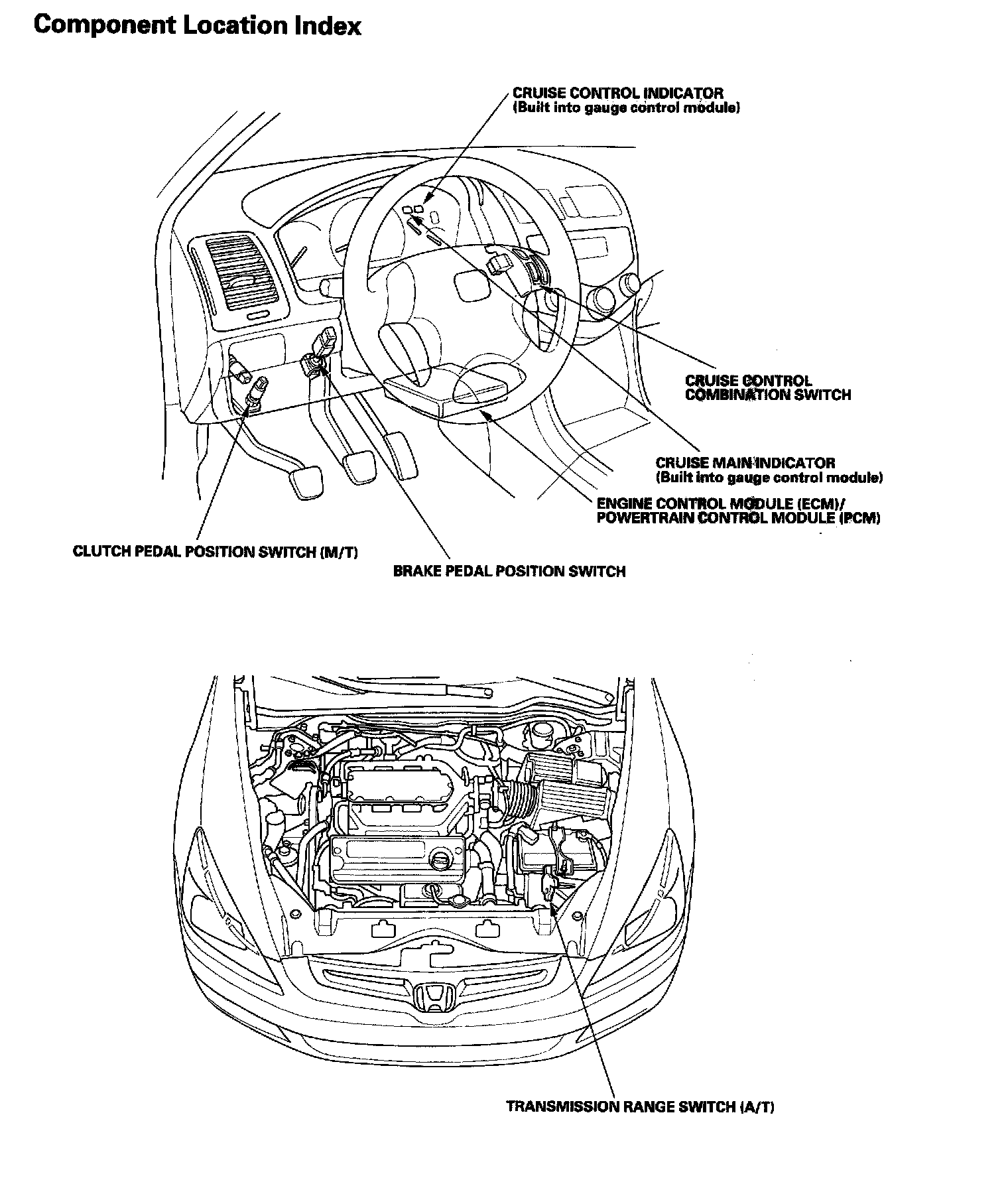

Cruise Control Component Location Index:

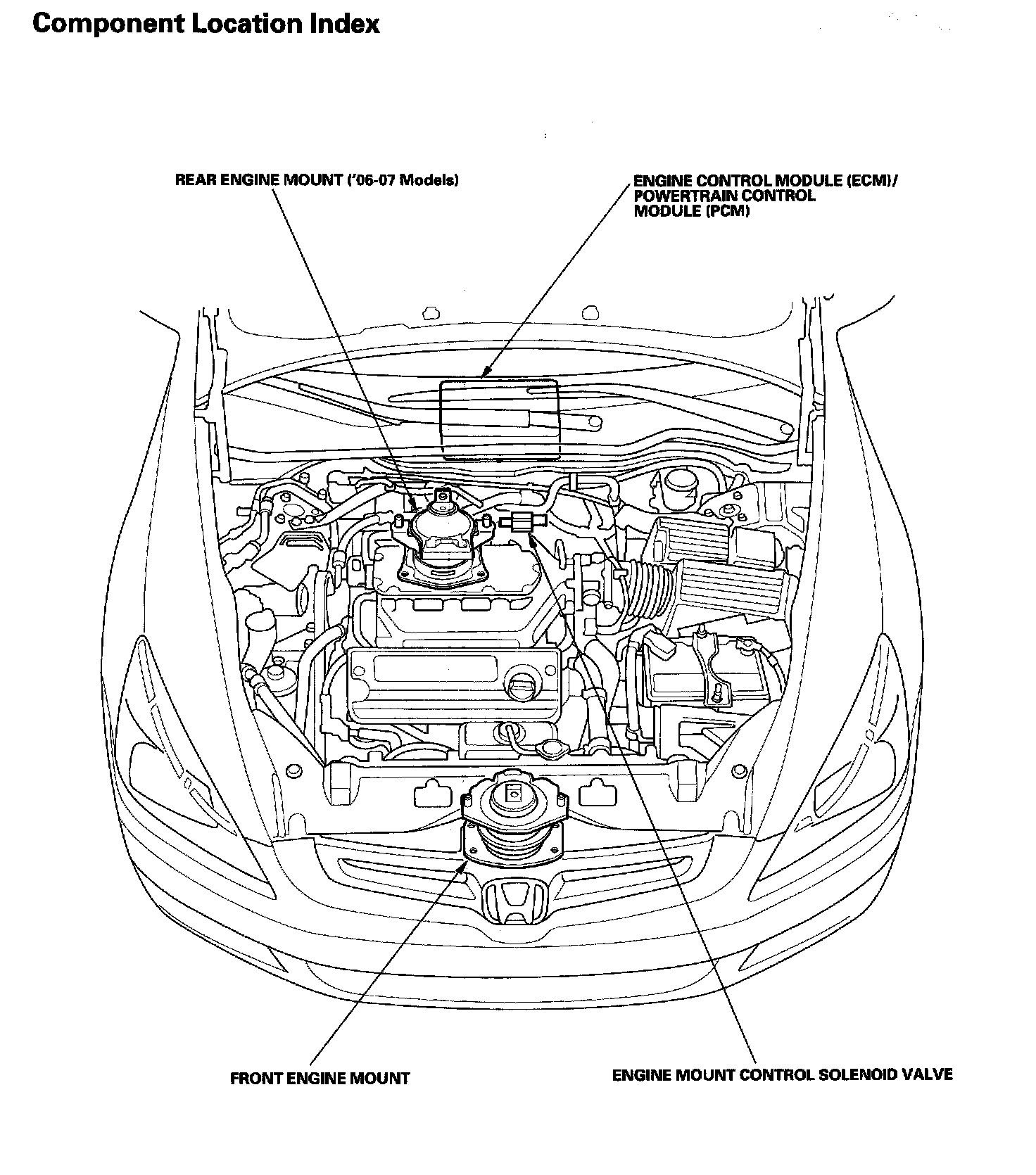

Engine Mount Control System Component Location Index:

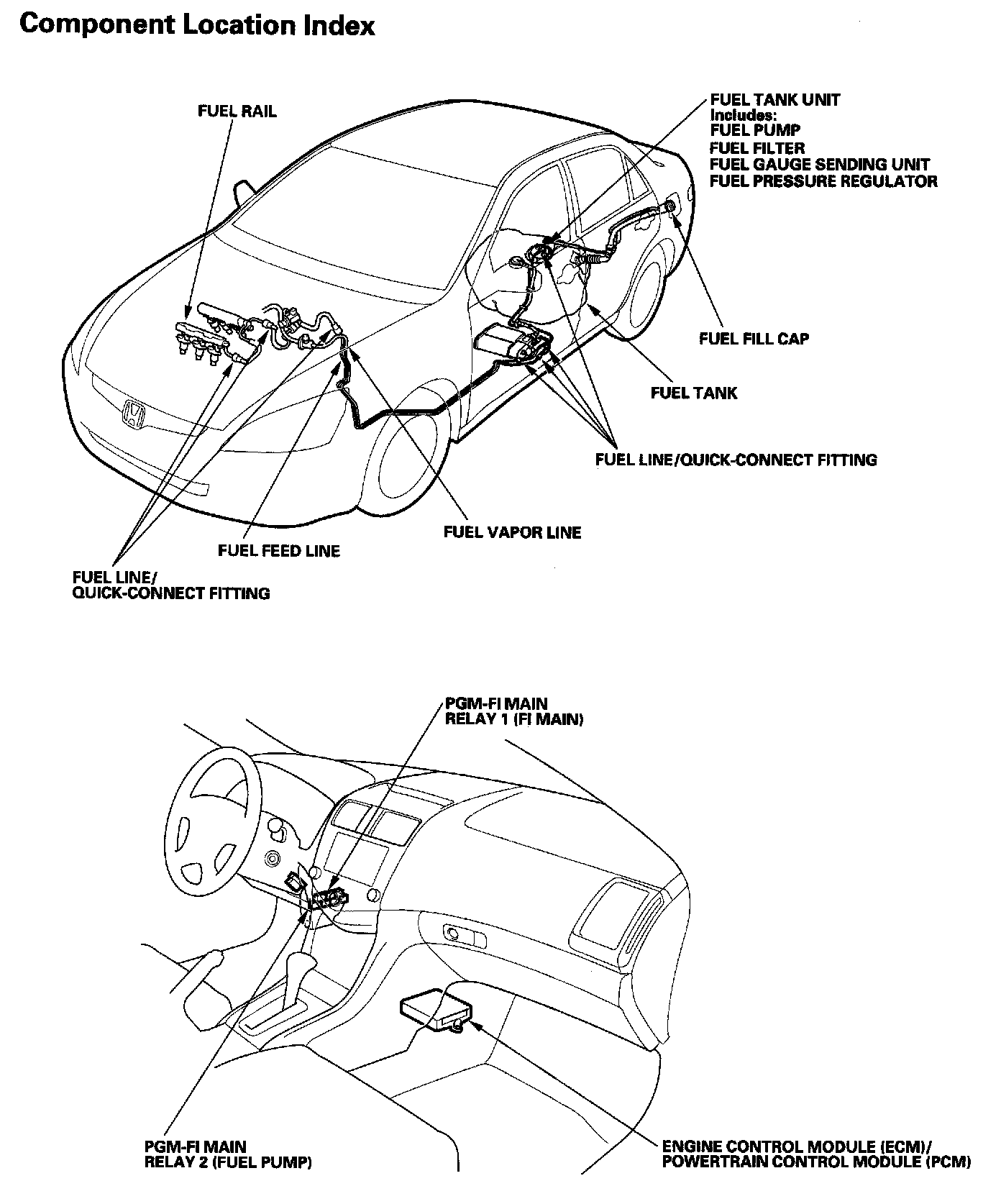

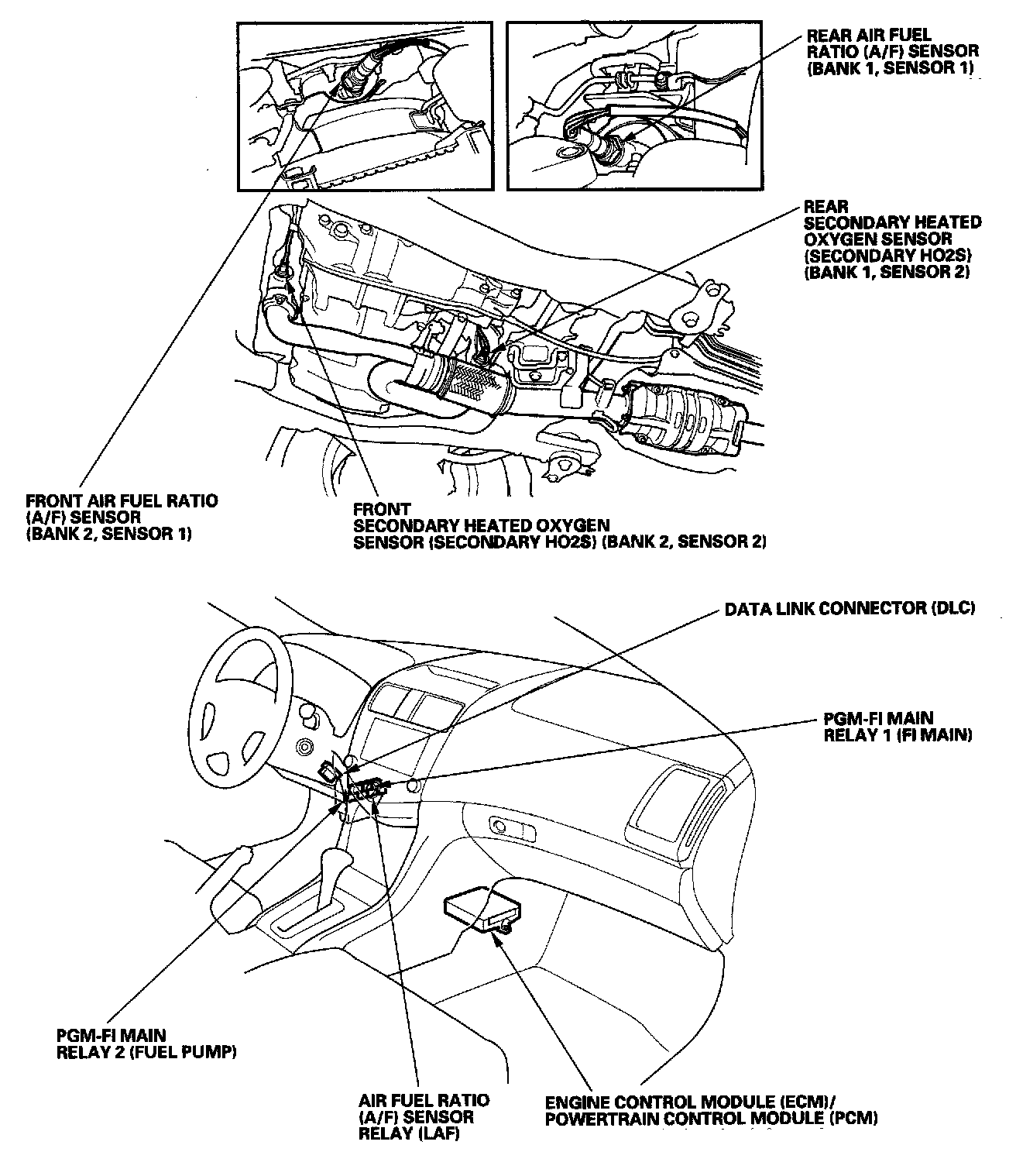

PGM-FI System Component Location Index:

Fuel Supply System Component Location Index:

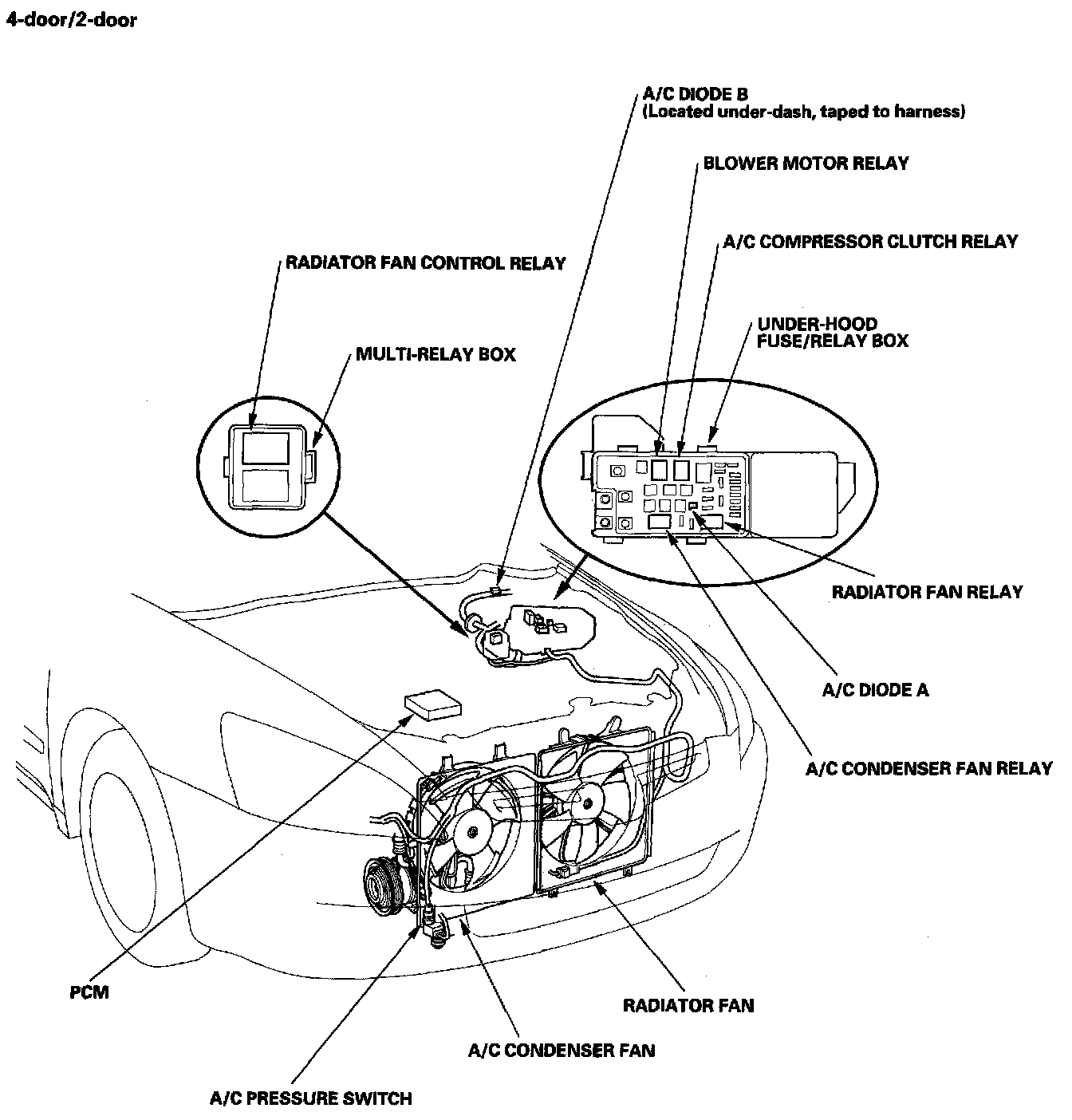

Heating/Air Conditioning Component Location Index:

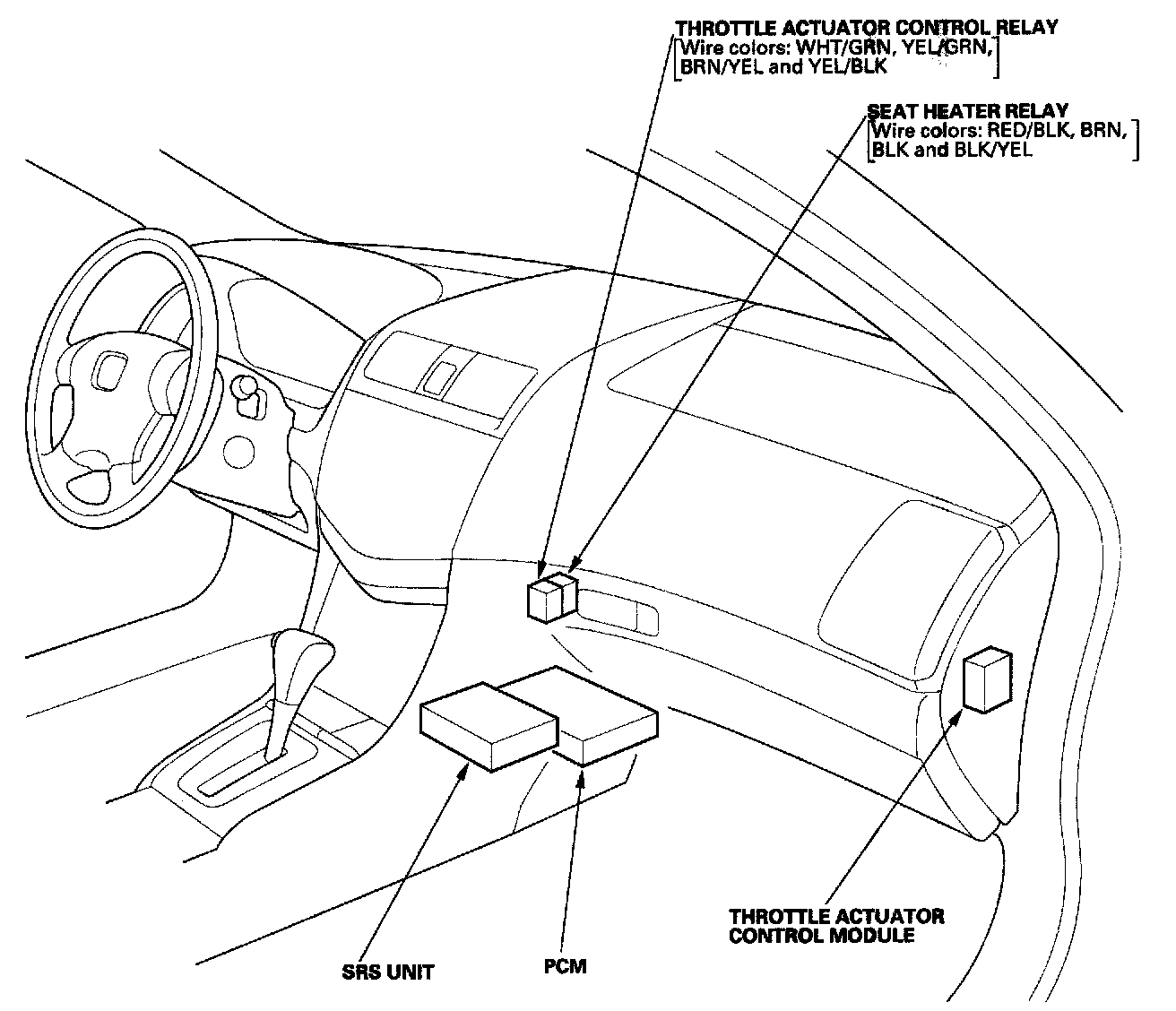

Relay And Control Unit Locations - Dashboard:

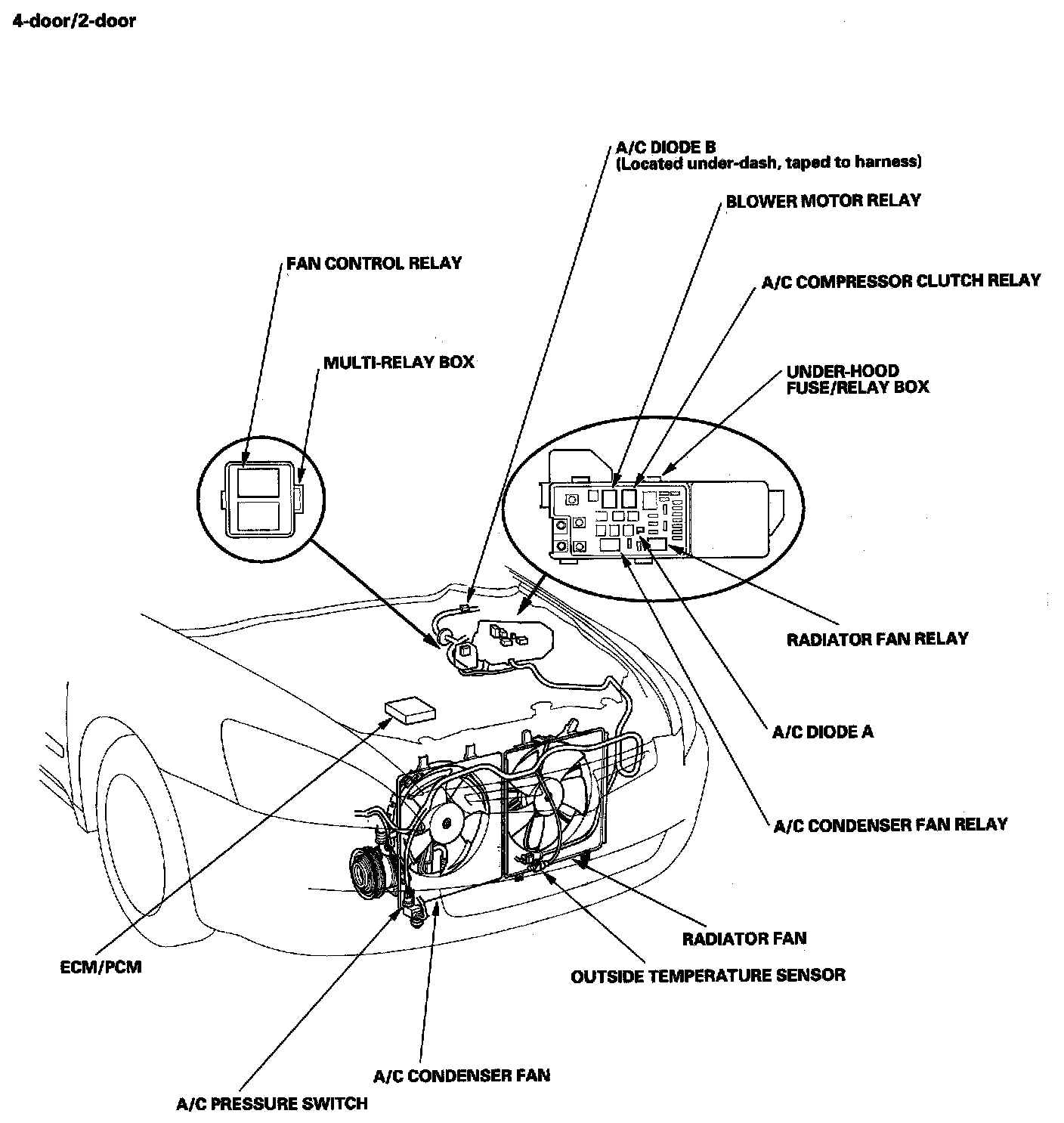

Climate Control Component Location Index:

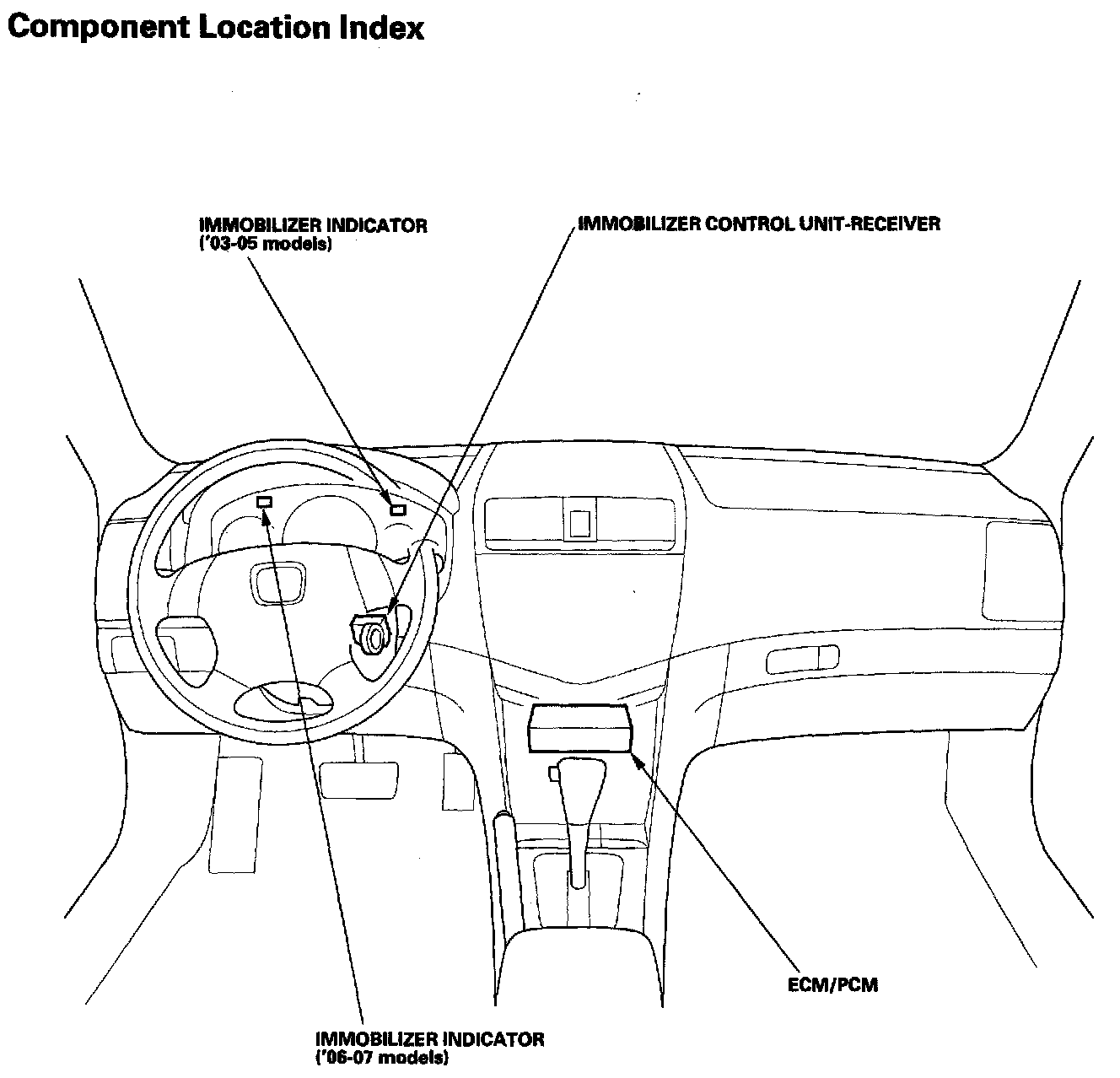

Immobilizer System Component Location Index:

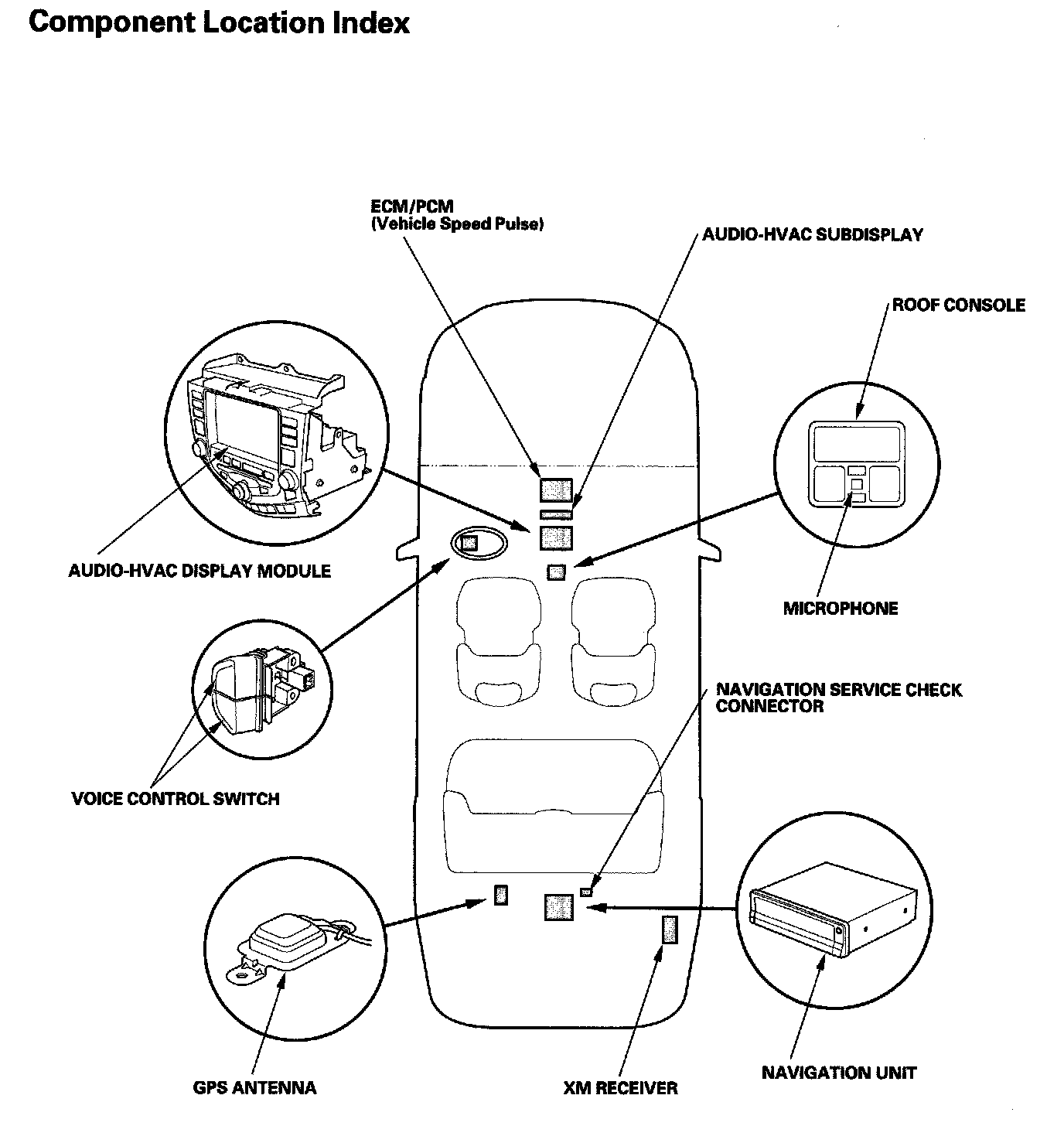

Navigation System Component Location Index:
