Pinout Values and Diagnostic Parameters

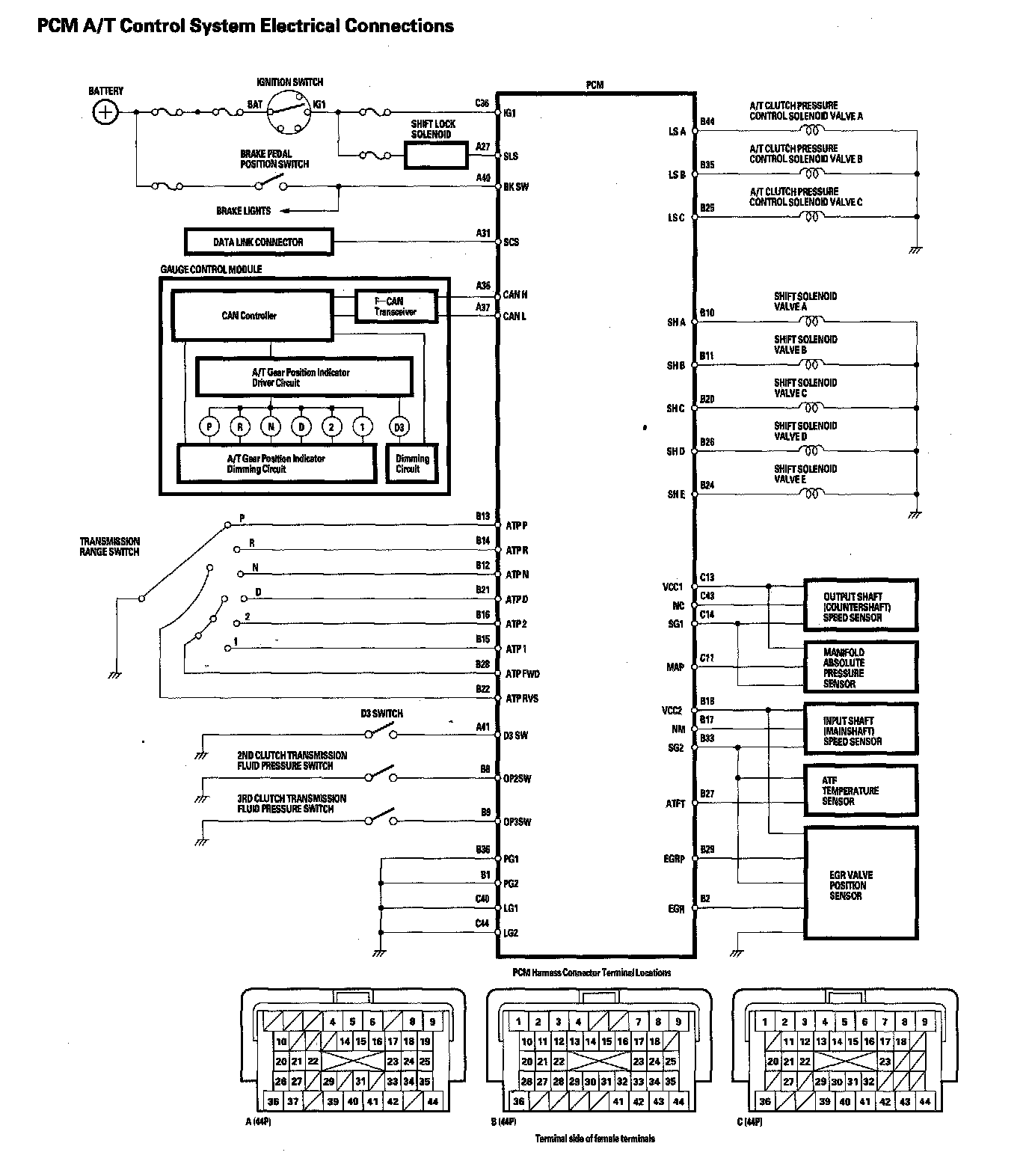

PCM A/T Control System Electrical Connections:

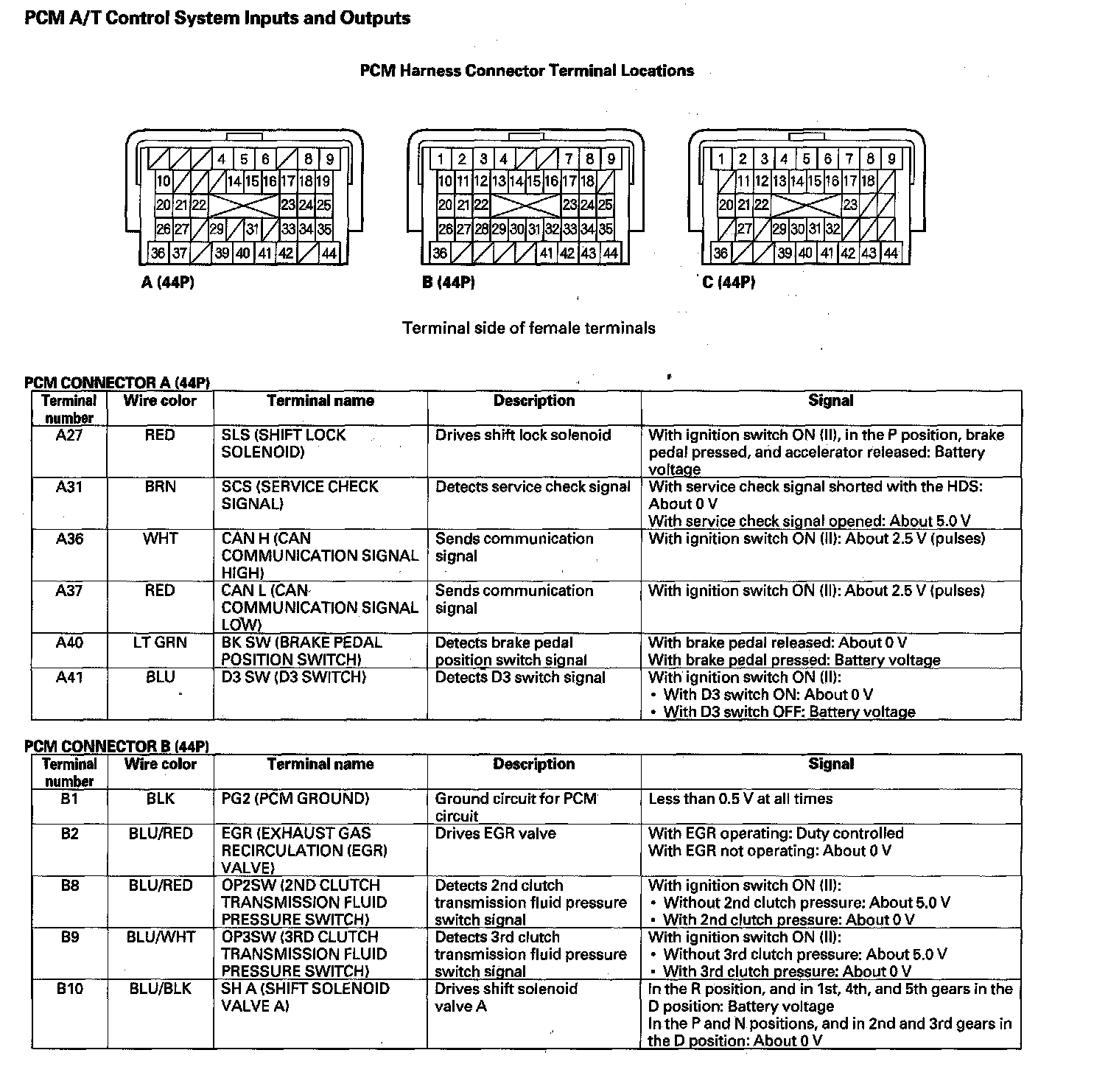

PCM A/T Control System Inputs and Outputs (Part 1):

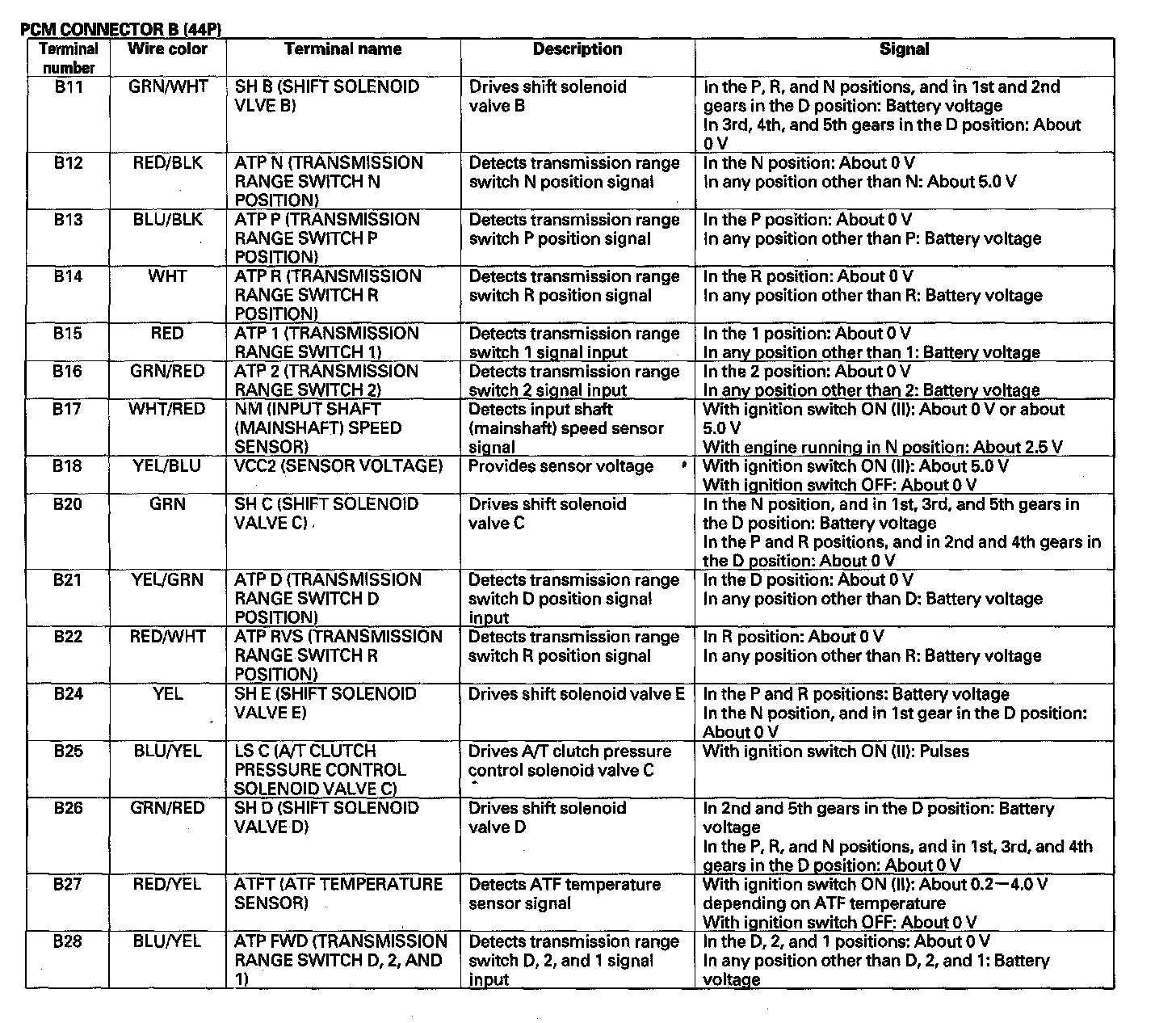

PCM A/T Control System Inputs and Outputs (Part 2):

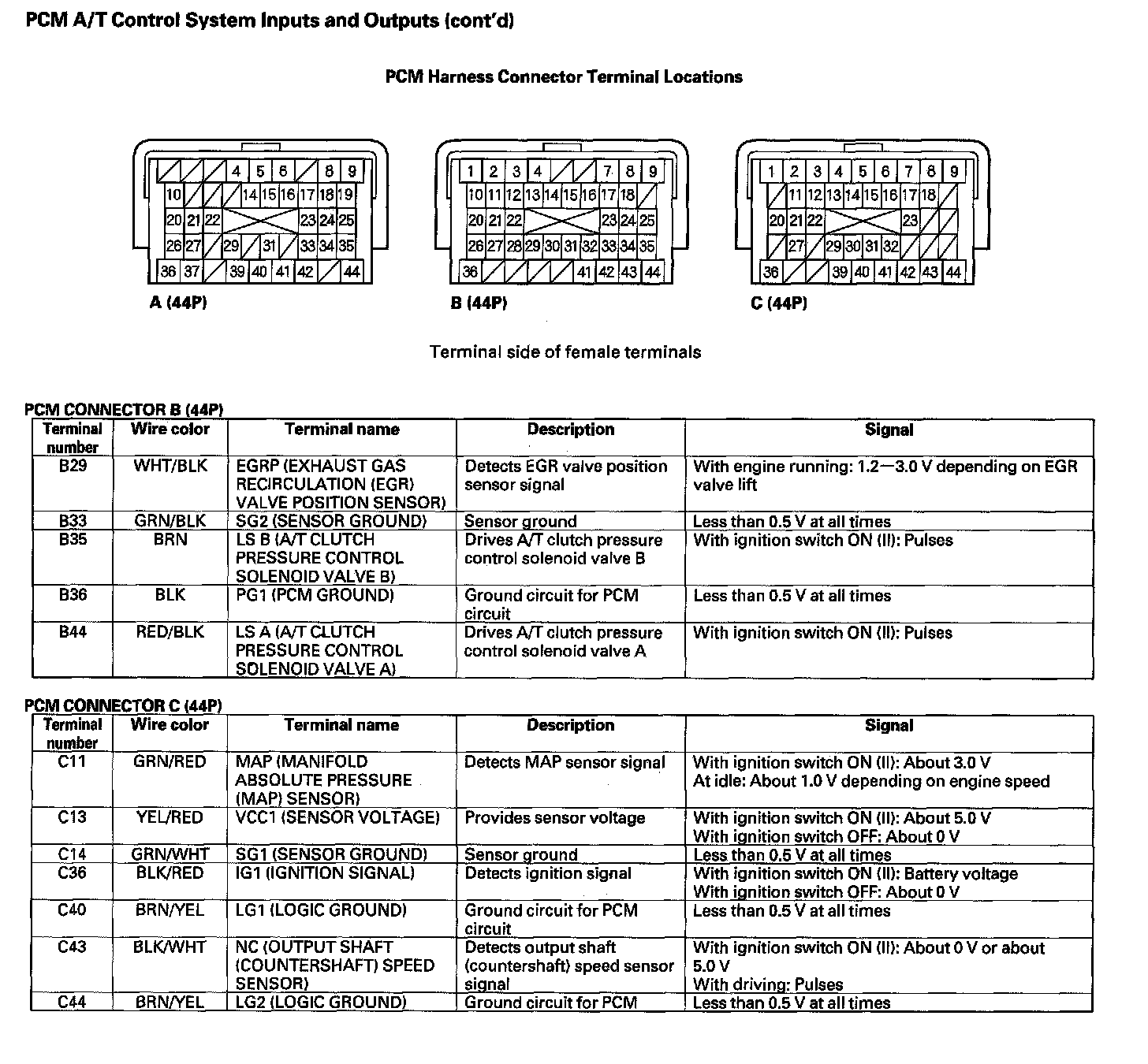

PCM A/T Control System Inputs and Outputs (Part 3):
