Torque Specifications

Main Bearing Cap
1st Tighten the bearing cap bolts, in sequence 29 N-m (3.0 kgf-m, 22 lbf-ft).





Tighten the bearing cap bolts an additional 56°.





2nd Tighten the 8 mm bolts, in sequence 22 N-m (2.2 kgf-m, 16 lbf-ft)

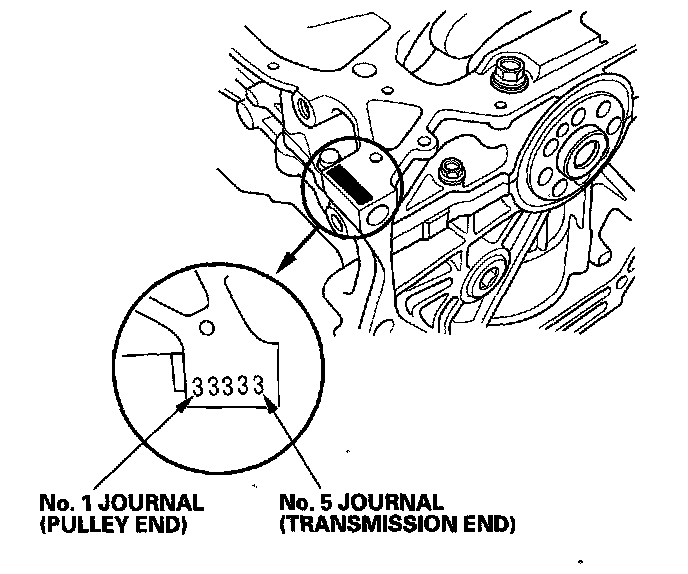

Main Bearing Size Code









Crankshaft Pulley
Tighten the bolt 49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten the pulley bolt an additional 90°.
