System Specifications

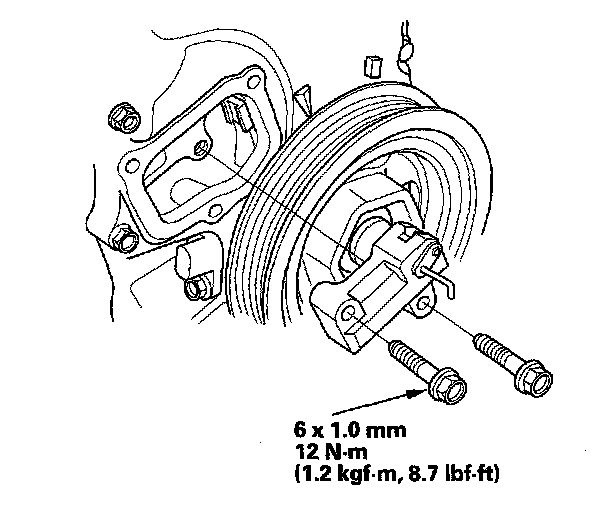

Auto Tensioner






Crankshaft Pulley
Tighten the bolt 49 N-m (5.0 kgf-m, 36 lbf-ft)
Tighten the pulley bolt an additional 90°.

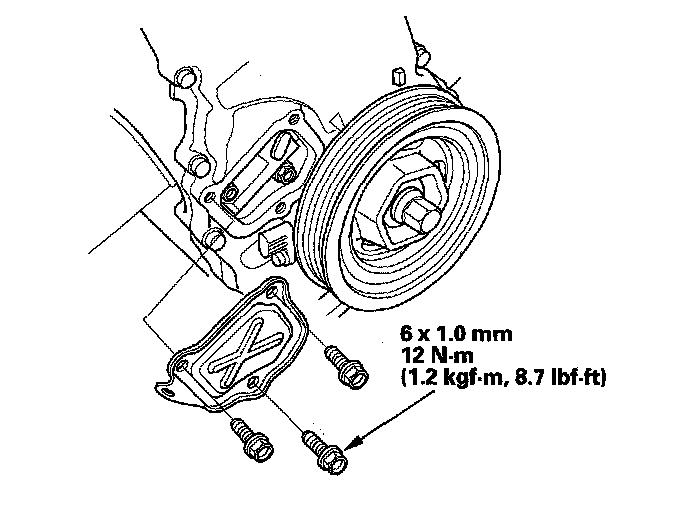

Chain Case Cover
