Component Location Index

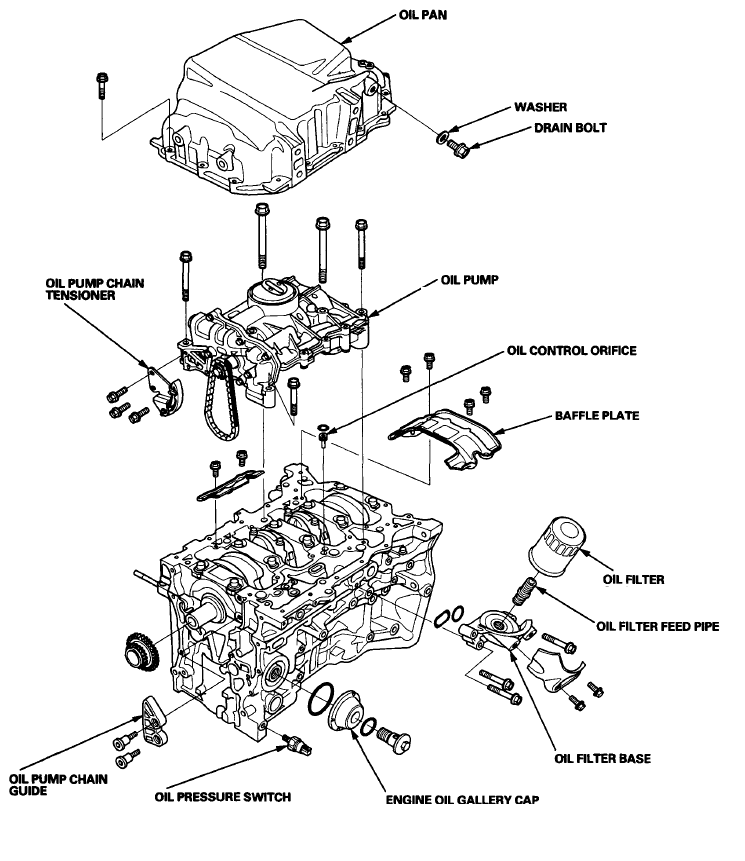

Fig 1: Identifying Engine Component Location

G06609495

Courtesy of AMERICAN HONDA MOTOR CO., INC.
