Navigation Module: Locations

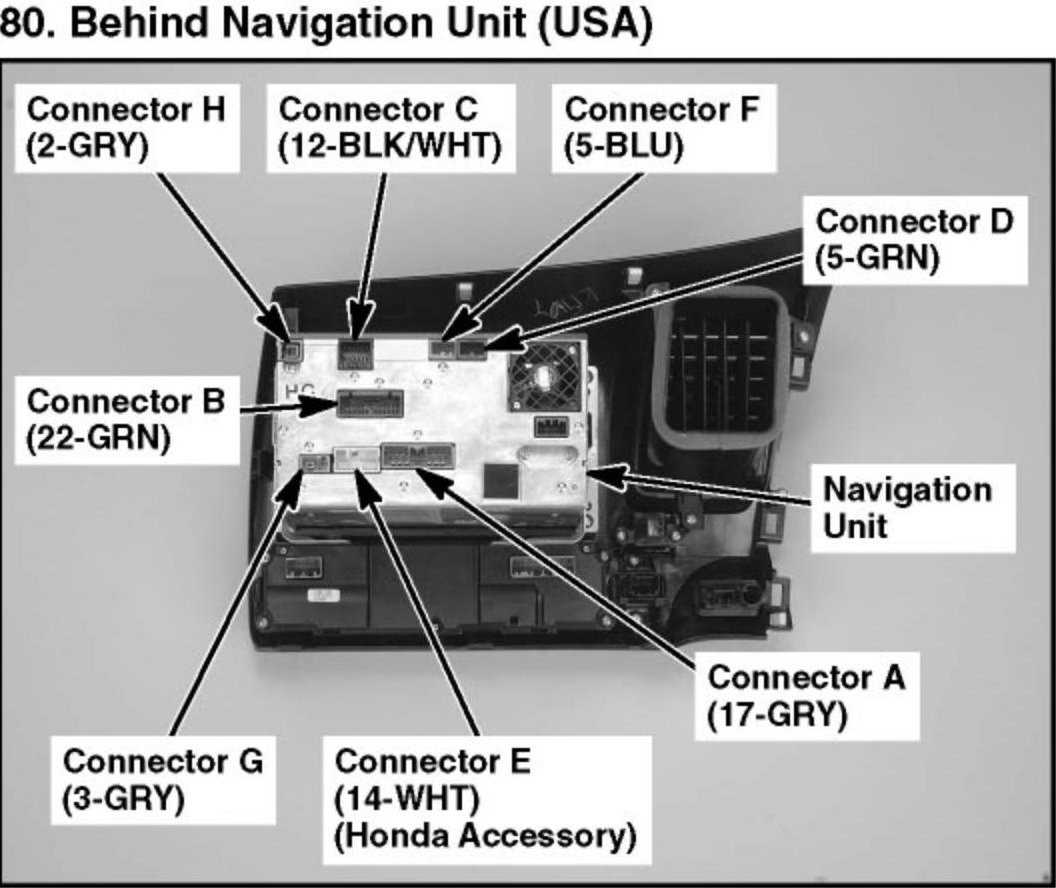

80. Behind Navigation Unit (USA):

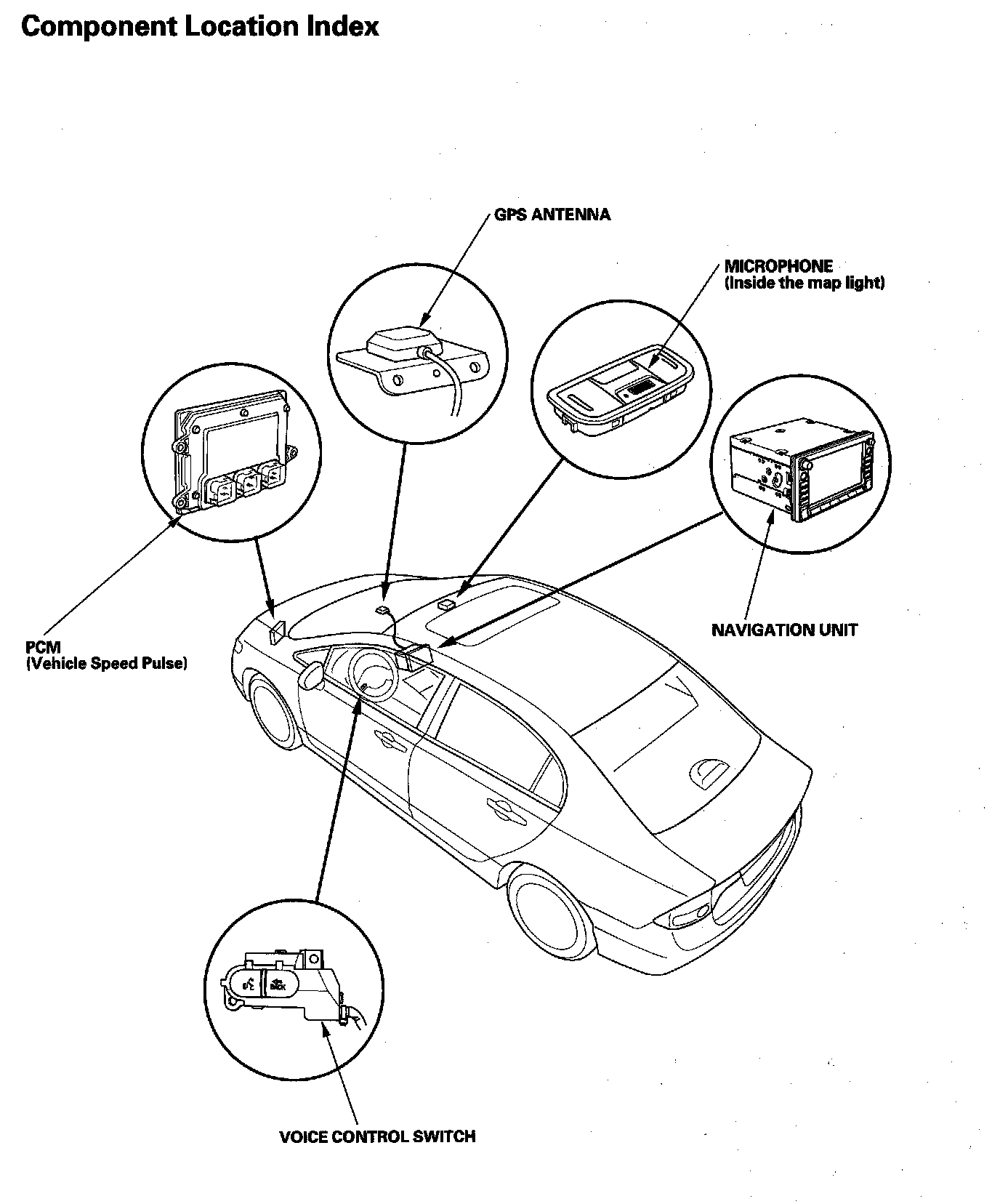

Navigation System Component Location Index:

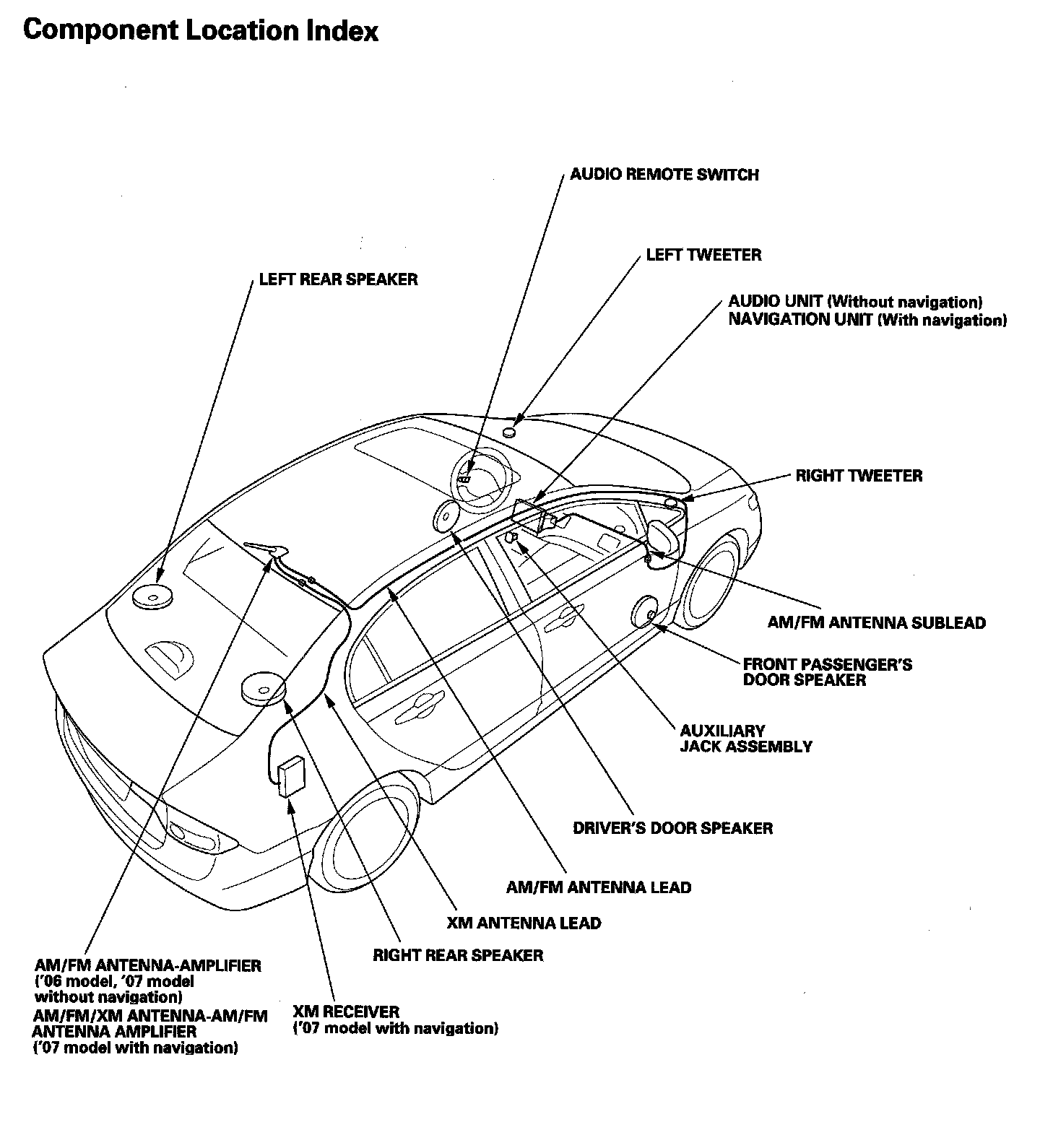

Audio System Component Location Index:

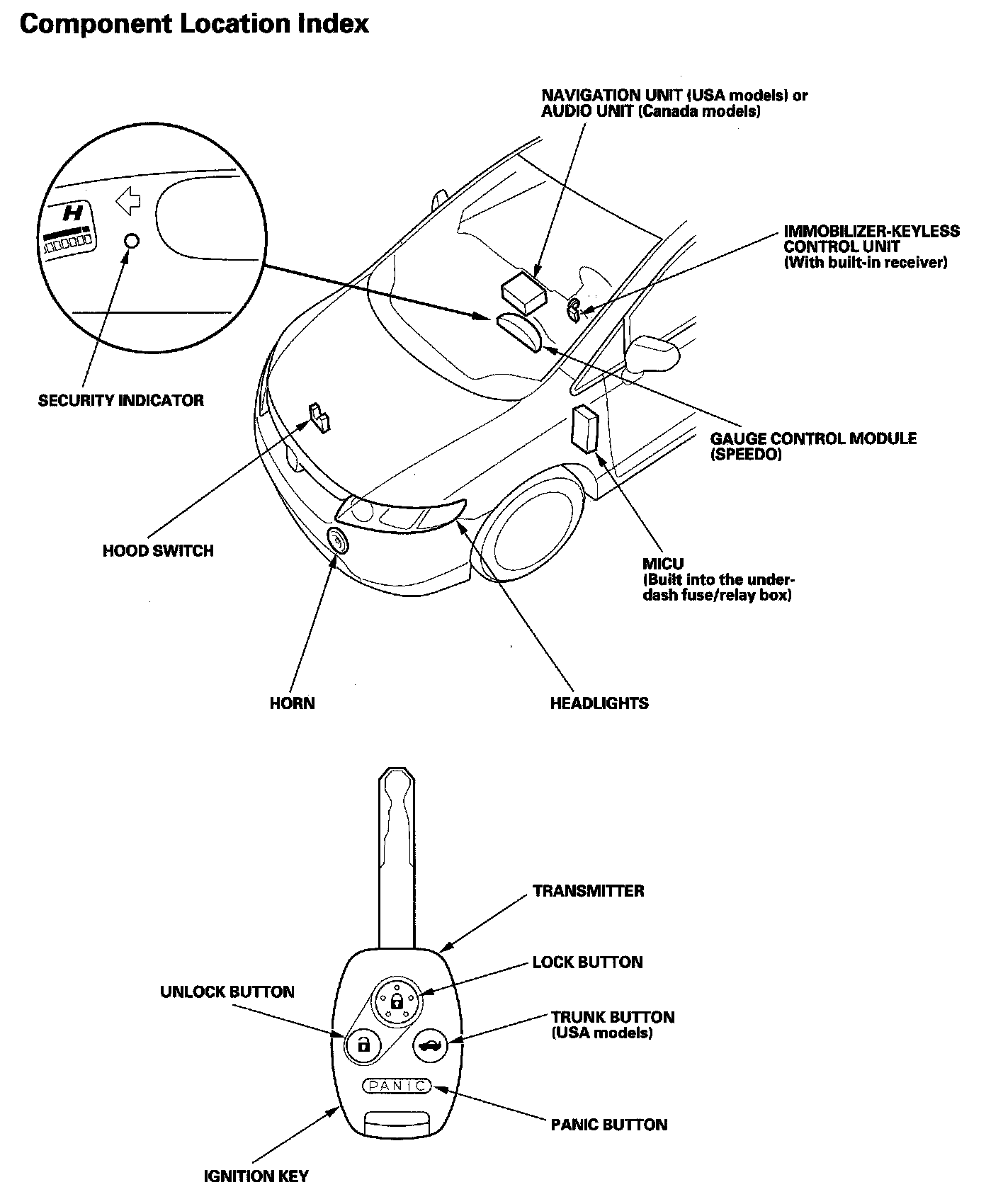

Keyless/Power Door Locks/Security System Component Location Index:

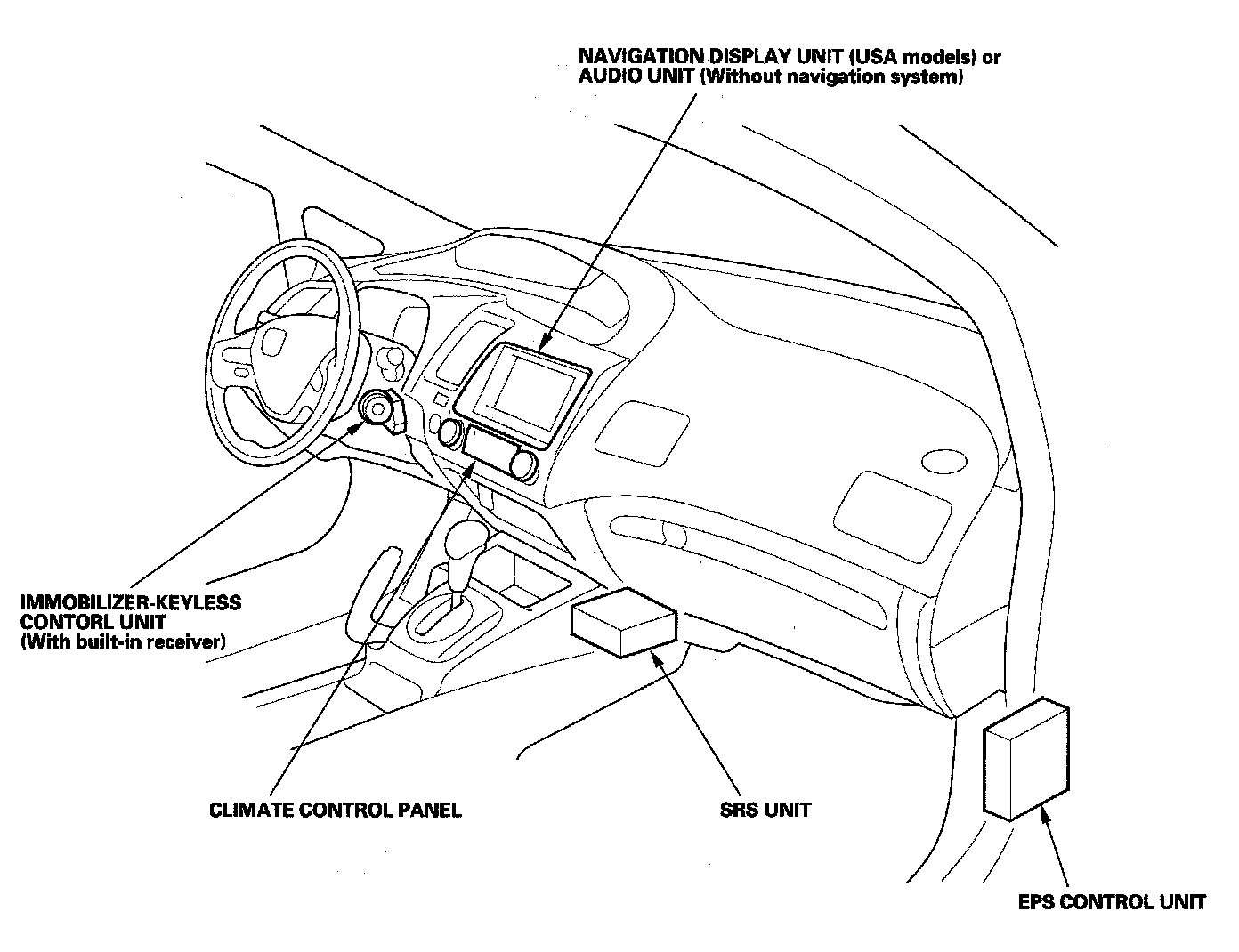

Relay and Control Unit Locations Dashboard:

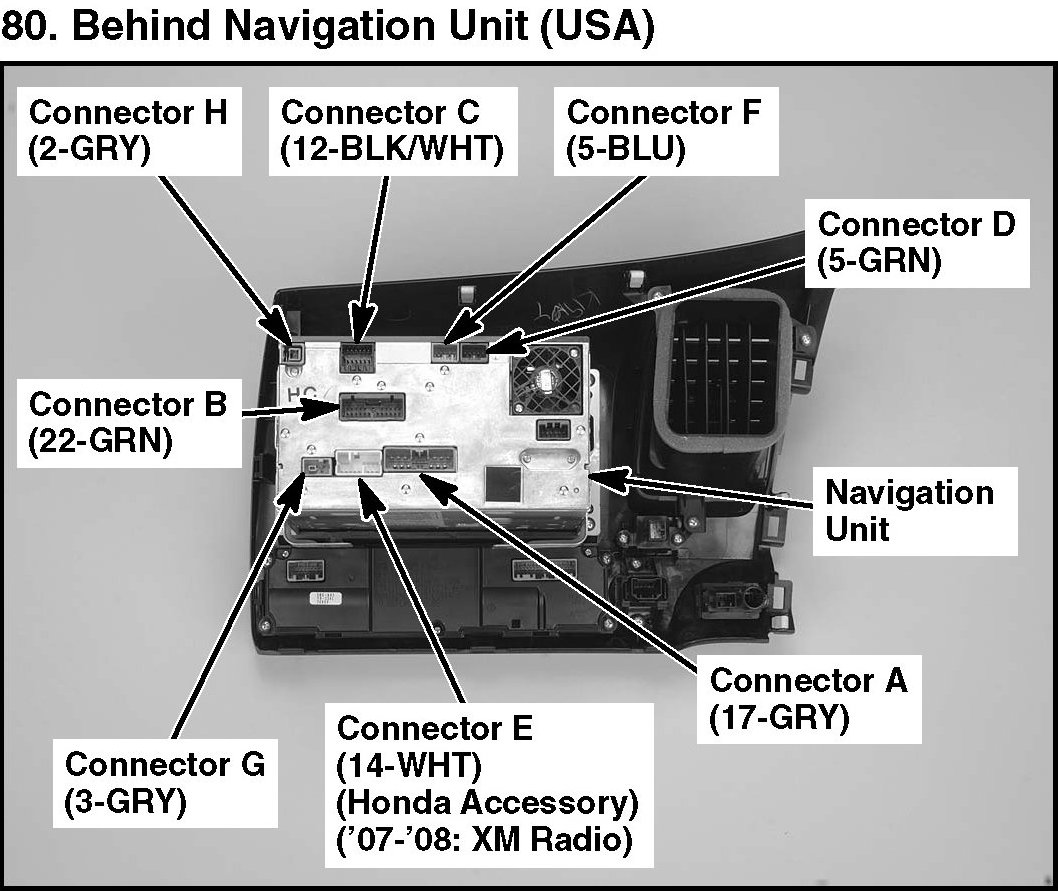

80. Behind Navigation Unit (USA):
