Navigation Unit Inputs and Outputs

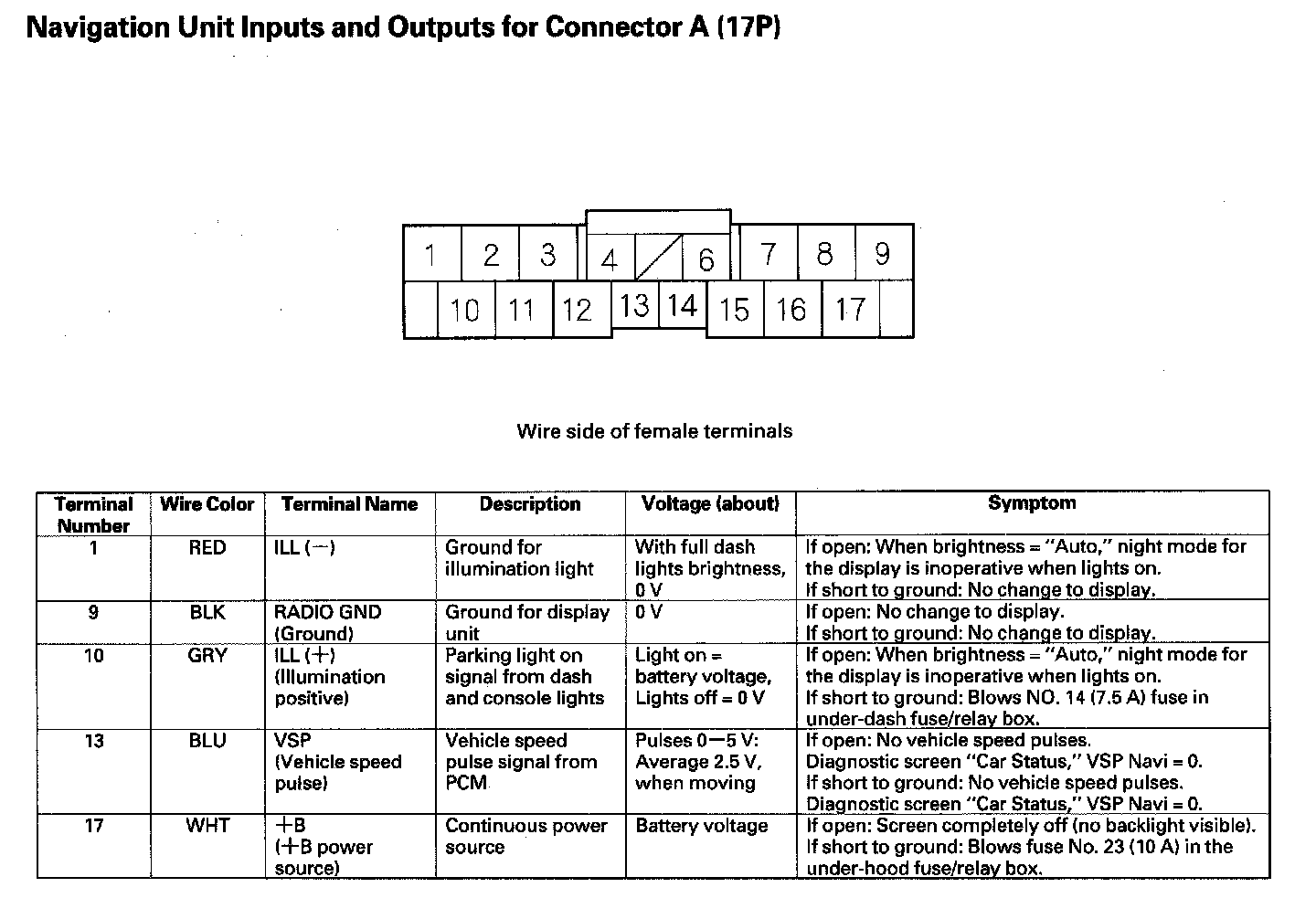

Navigation Unit Inputs And Outputs For Connector A (17P):

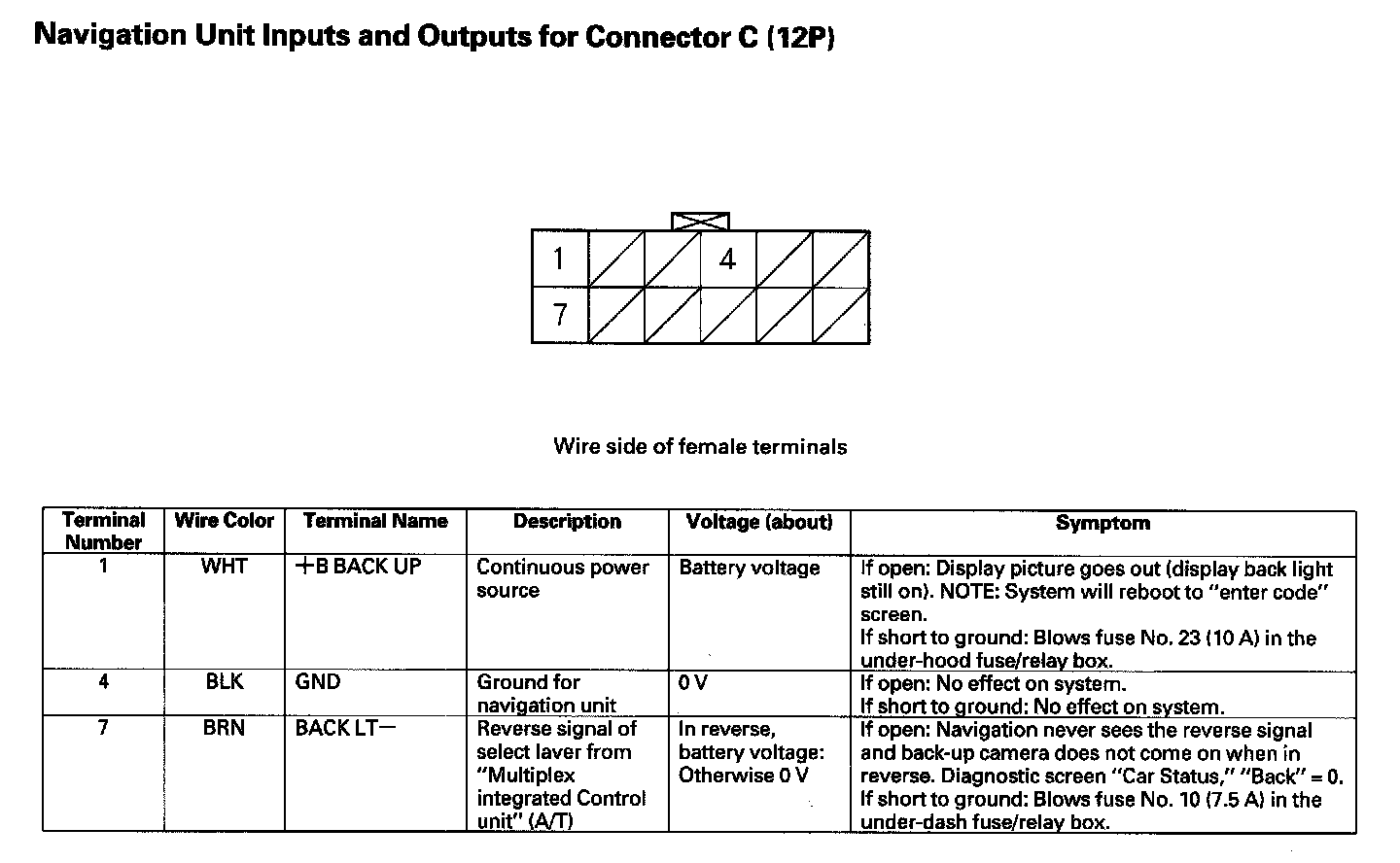

Navigation Unit Inputs And Outputs For Connector C (12P):

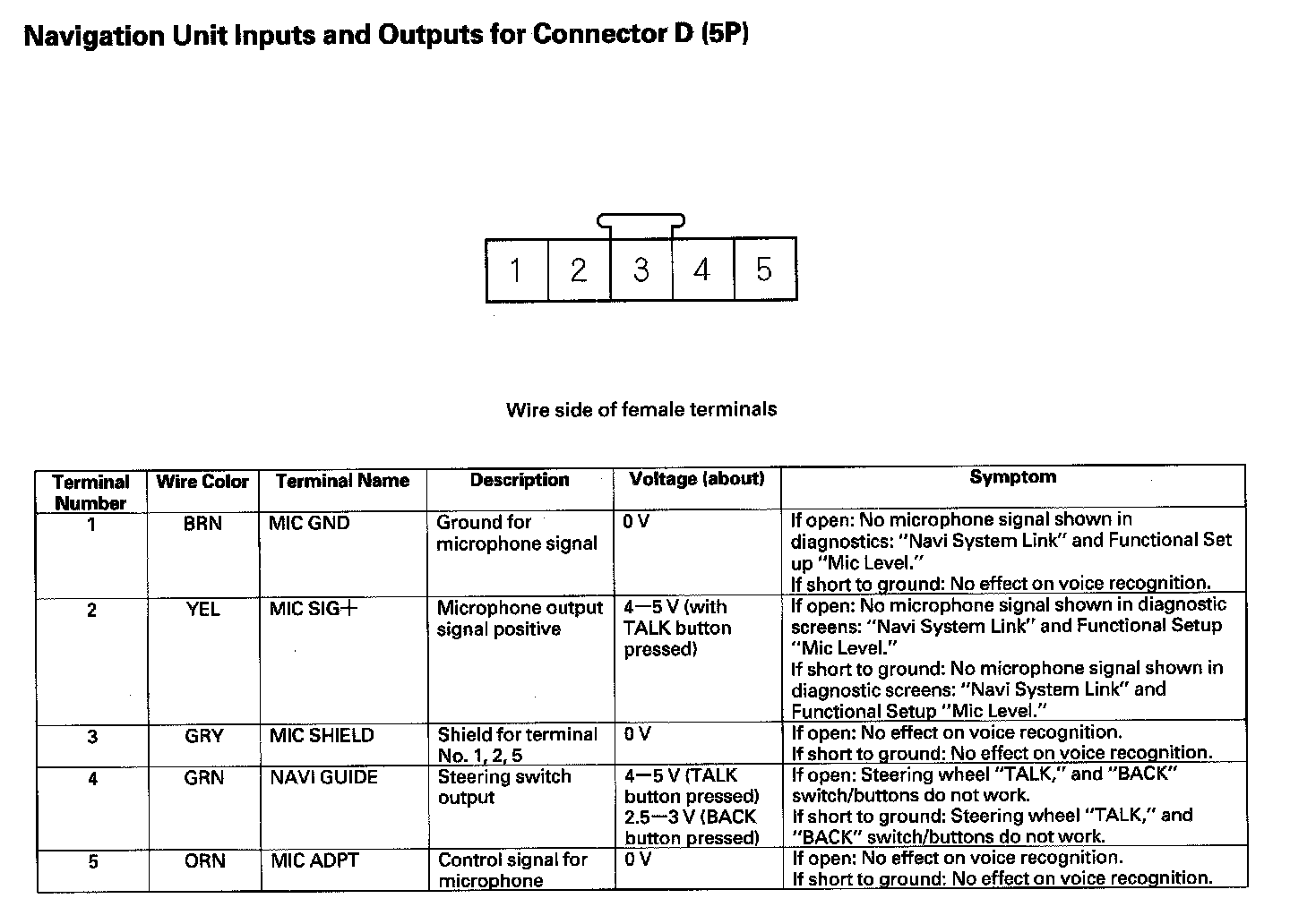

Navigation Unit Inputs And Outputs For Connector D (5P):



Navigation Unit Inputs And Outputs For Connector F (5P):



Navigation Unit Inputs And Outputs For Connector H (2P):

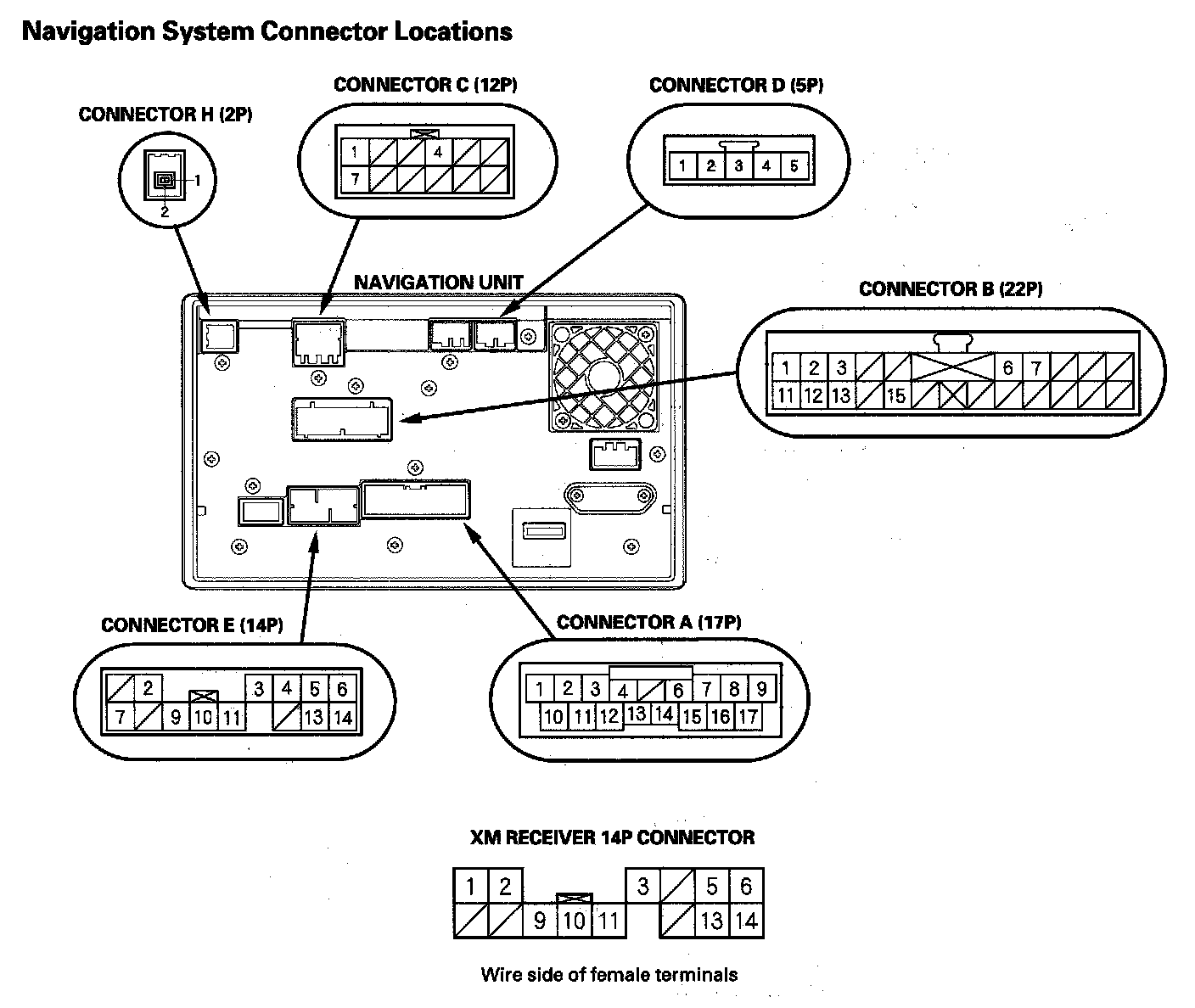

Navigation System Connector Locations:
