Pinout Values and Diagnostic Parameters

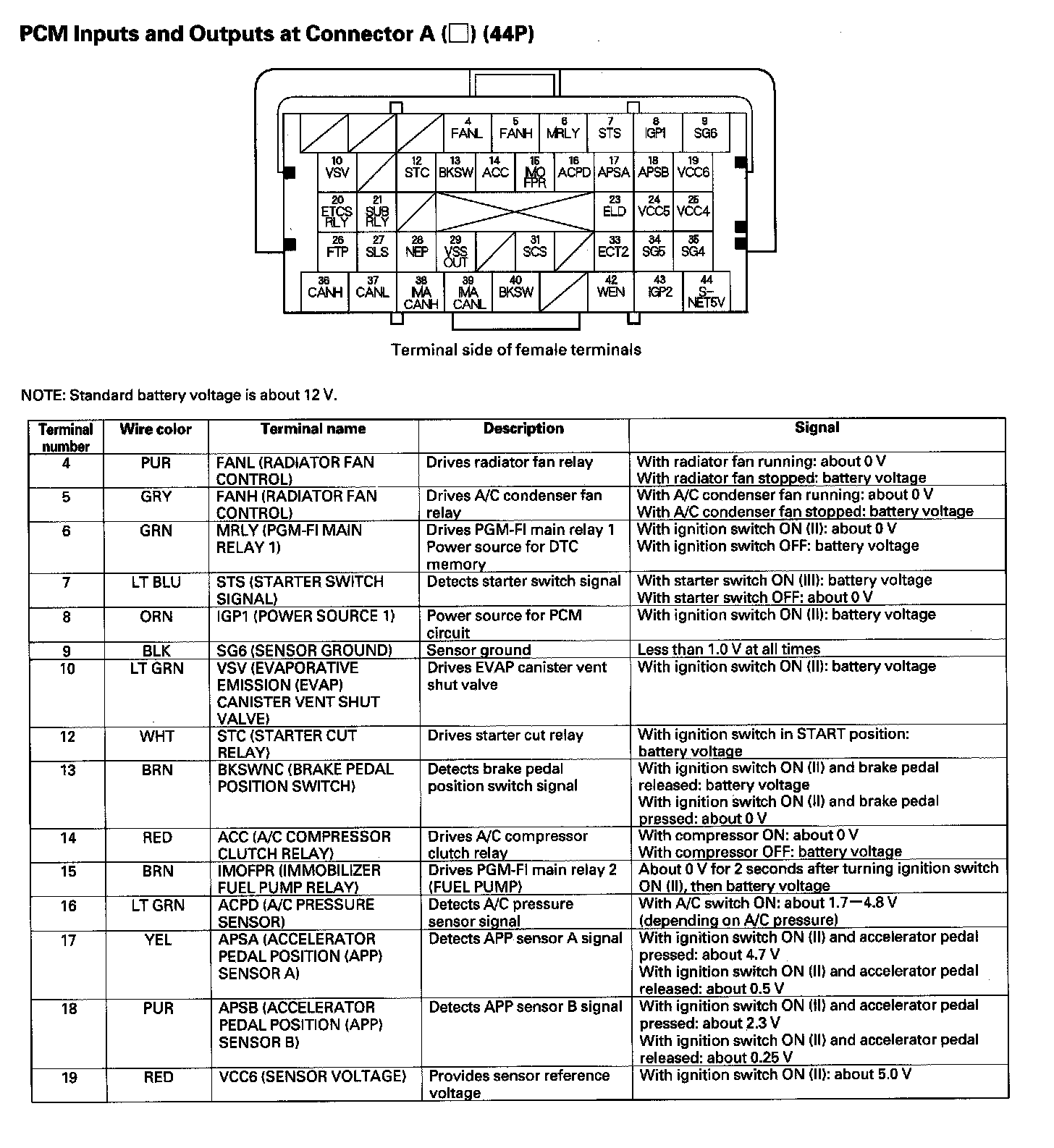

PCM Inputs And Outputs At Connector A (Square) (44P) Part 1:

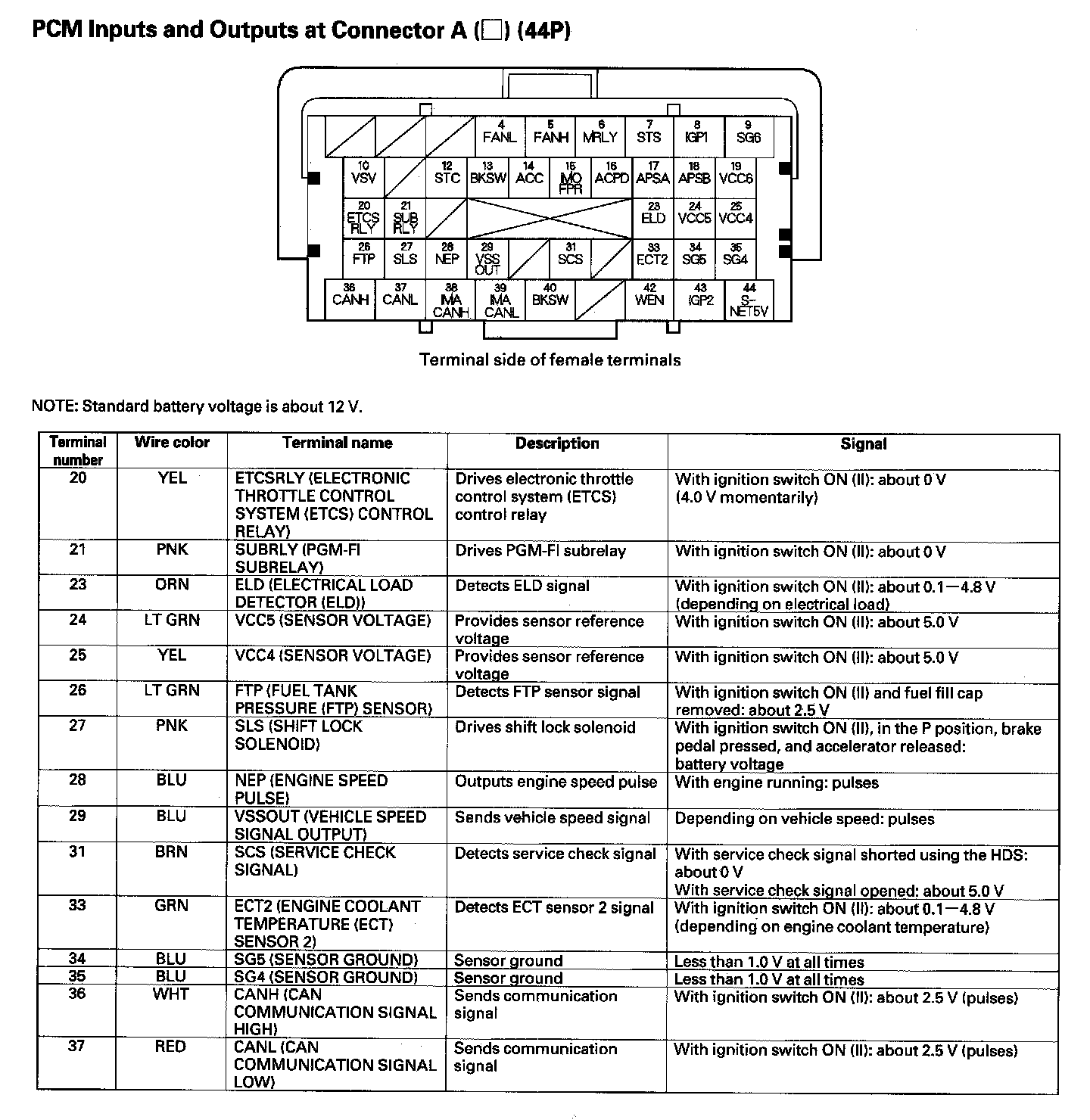

PCM Inputs And Outputs At Connector A (Square) (44P) Part 2:

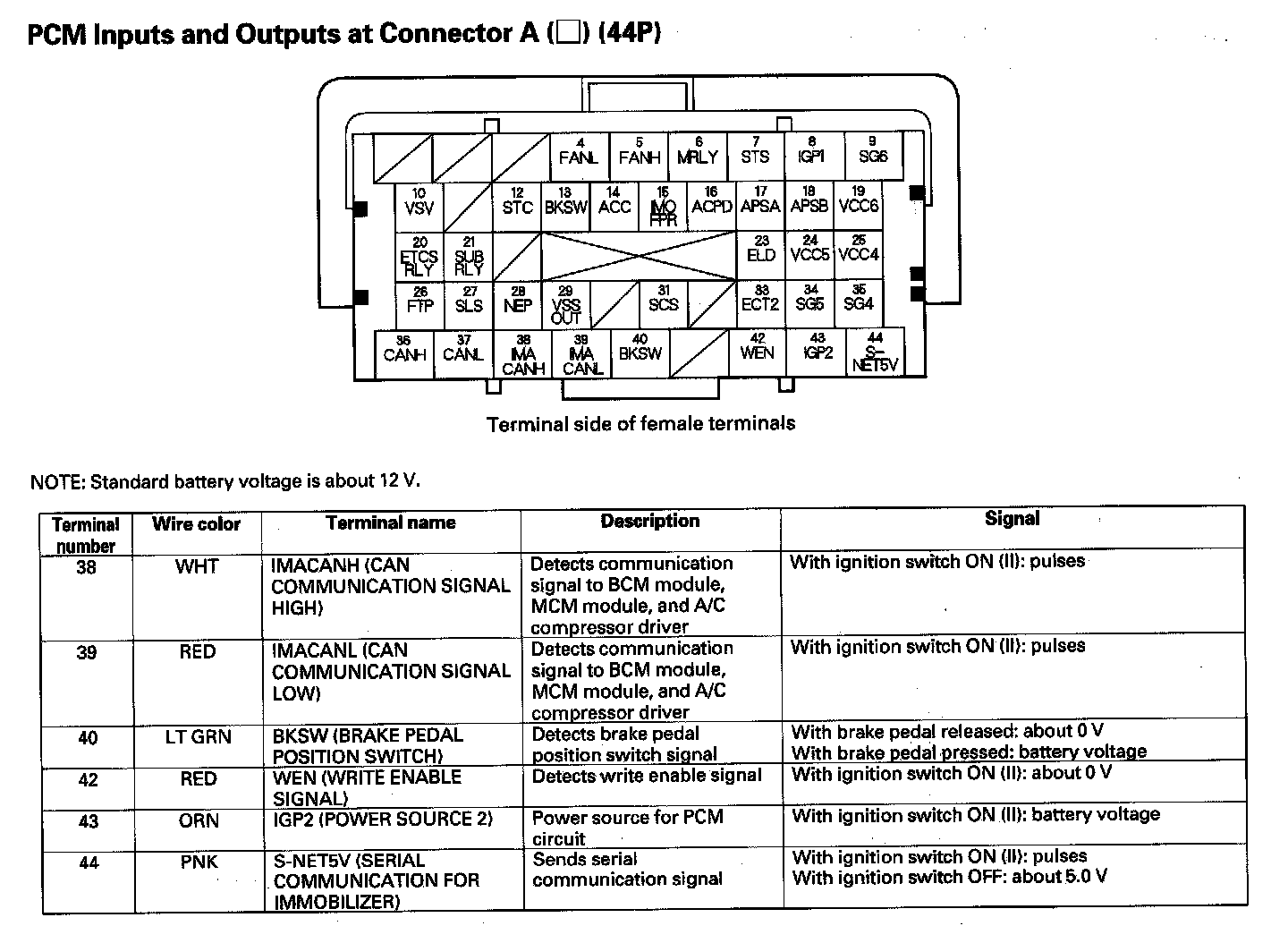

PCM Inputs And Outputs At Connector A (Square) (44P) Part 3:



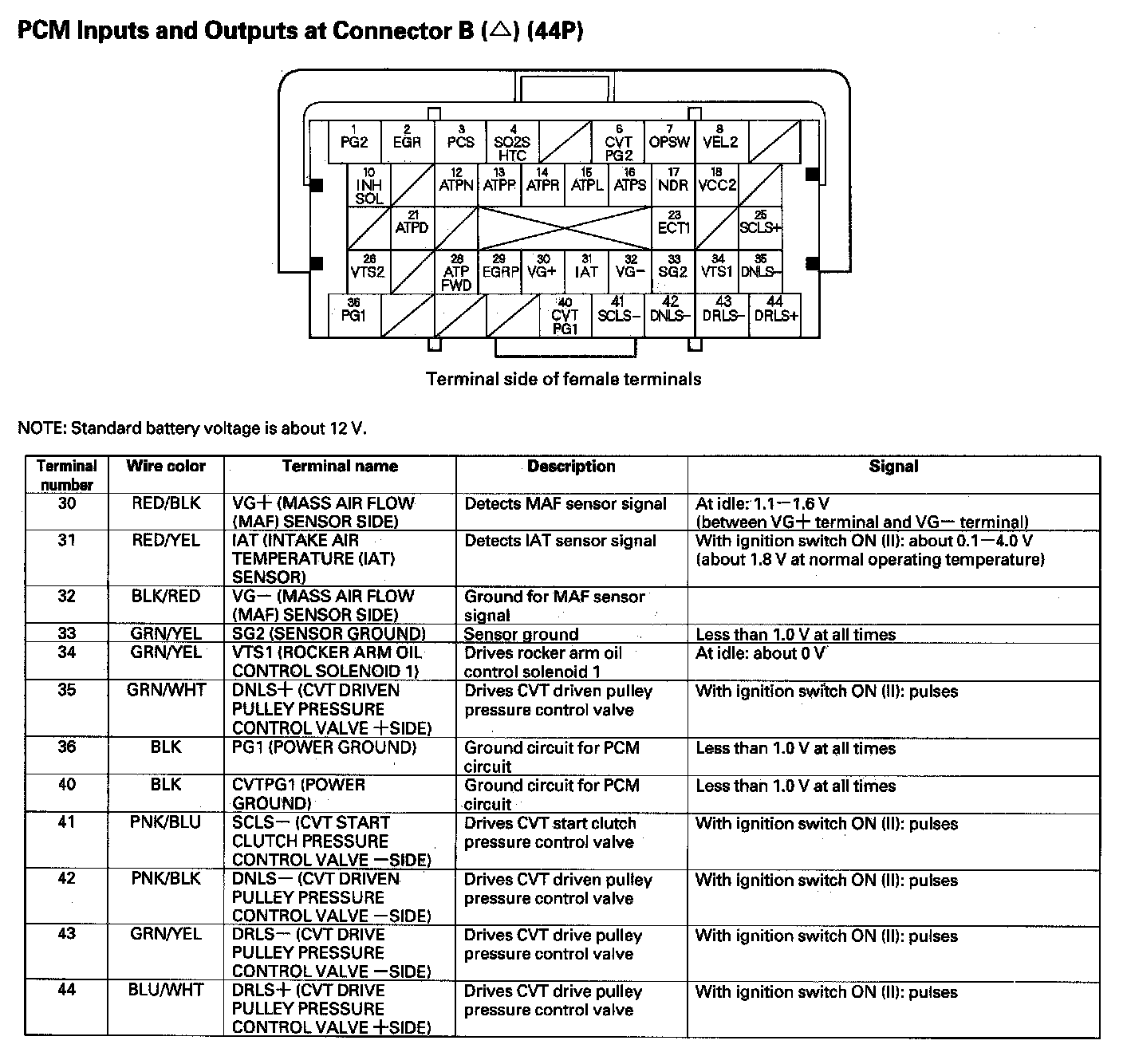

PCM Inputs And Outputs At Connector B (Triangle) (44P) Part 1:

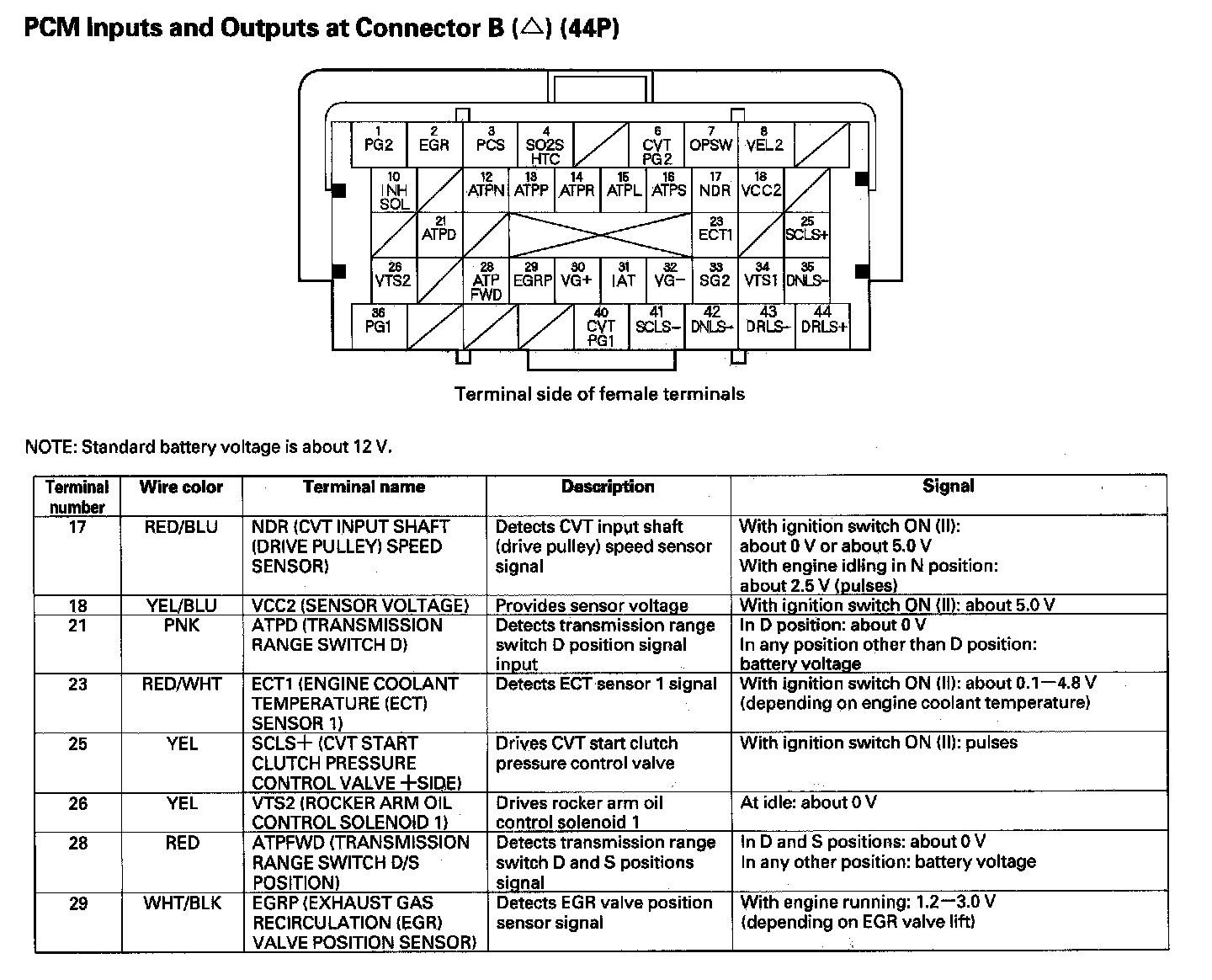

PCM Inputs And Outputs At Connector B (Triangle) (44P) Part 2:



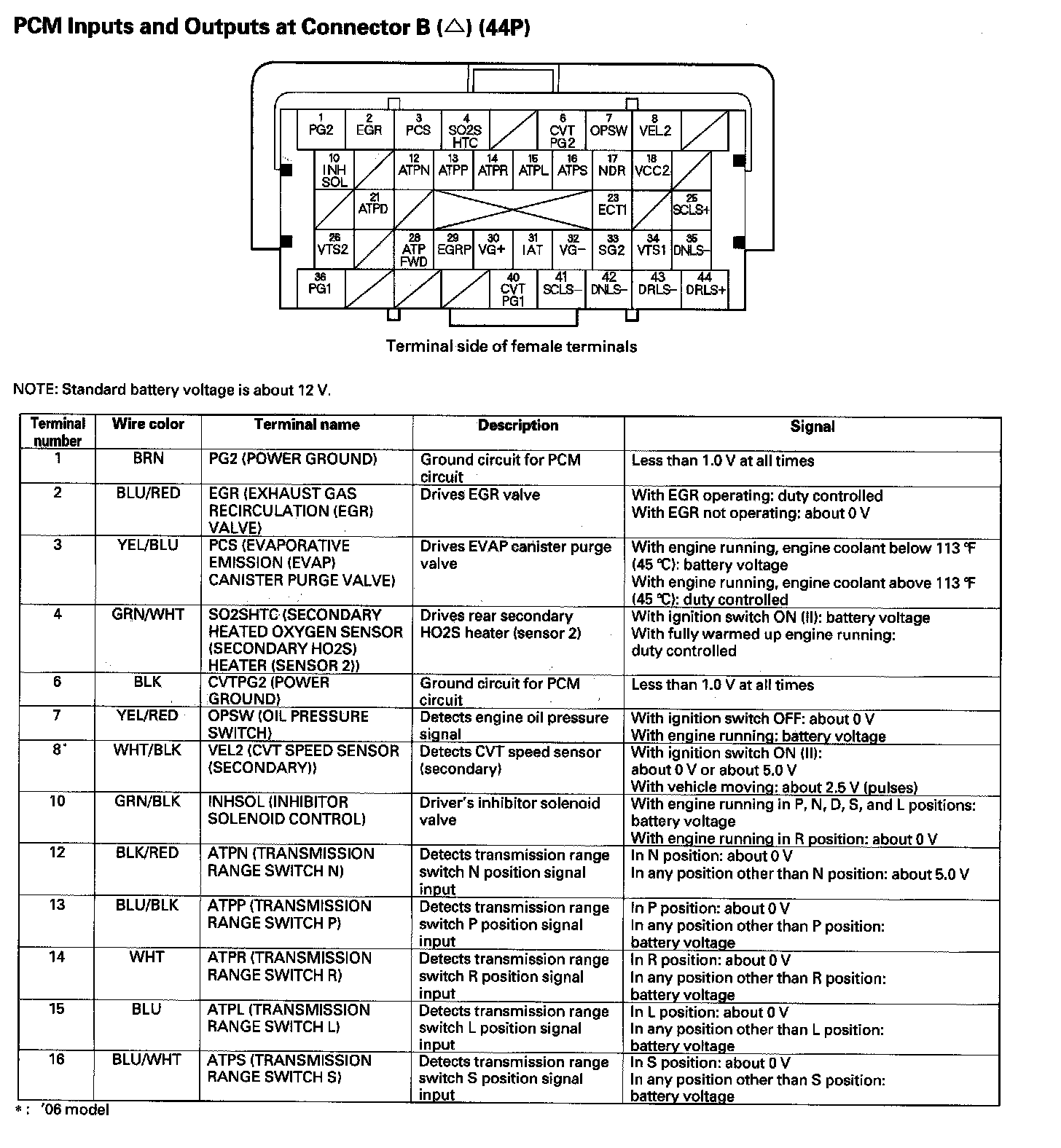

PCM Inputs And Outputs At Connector B (Triangle) (44P) Part 3:

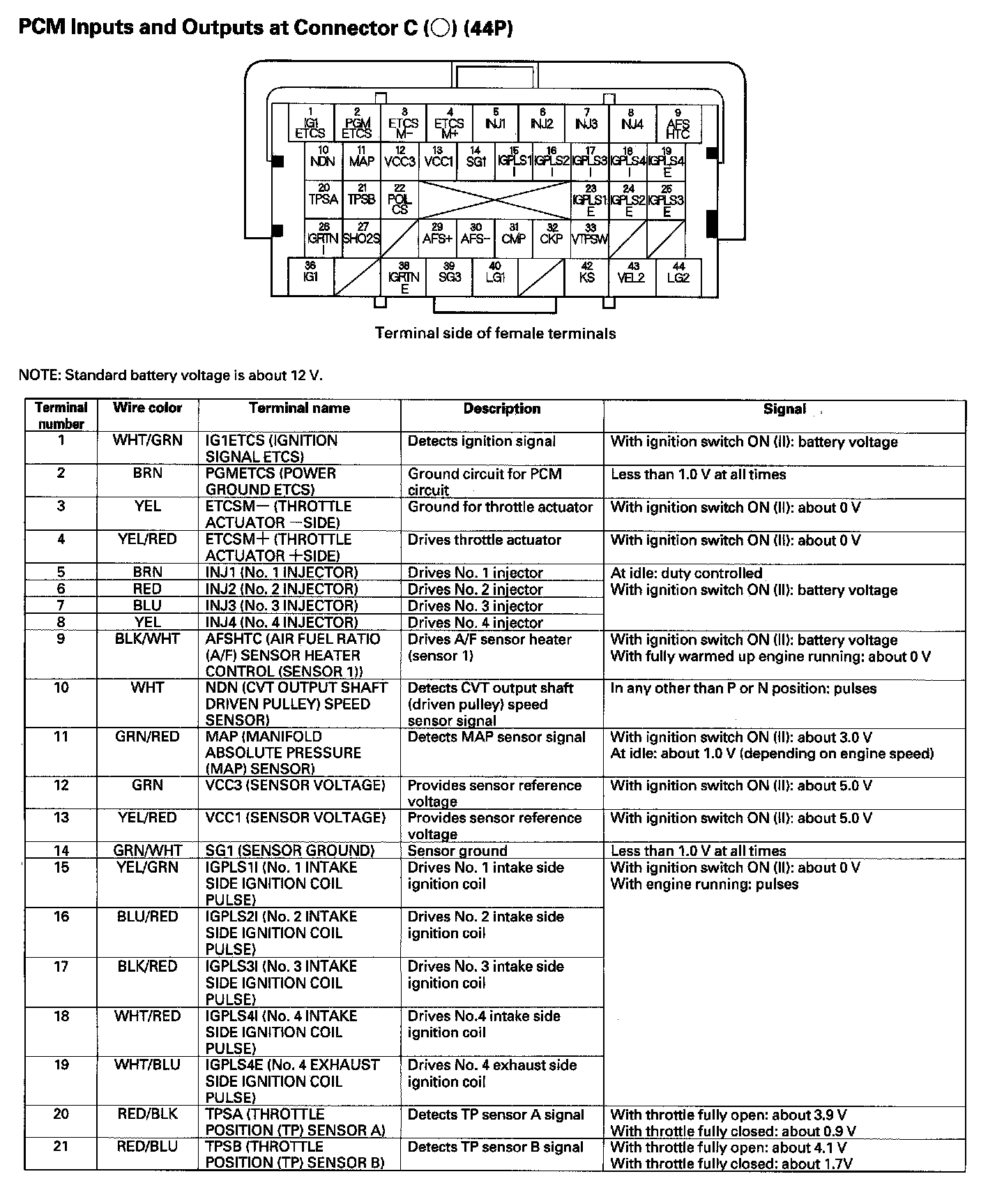

PCM Inputs And Outputs At Connector C (Circle) (44P) Part 1:

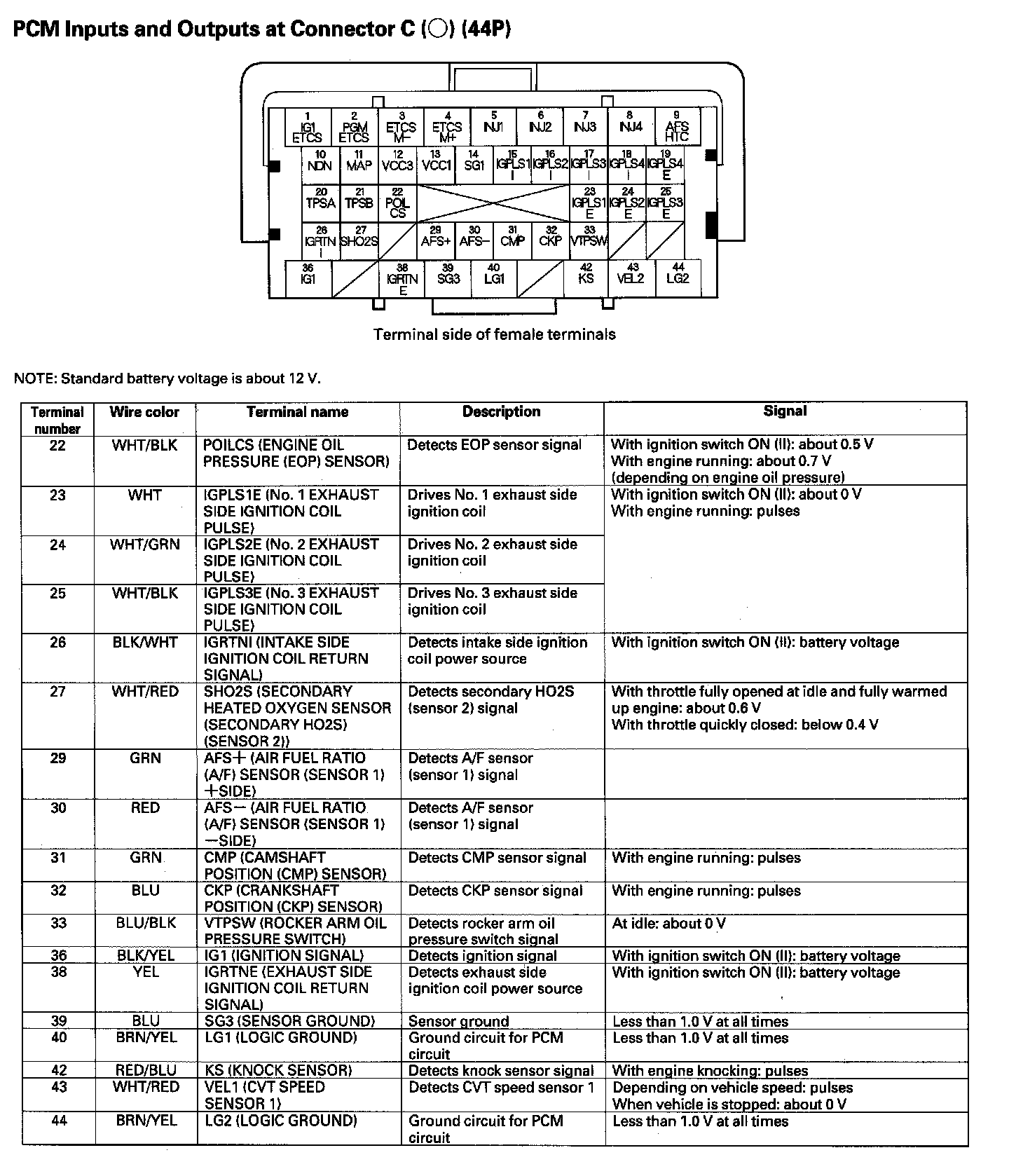

PCM Inputs And Outputs At Connector C (Circle) (44P) Part 2:
