Component Locations

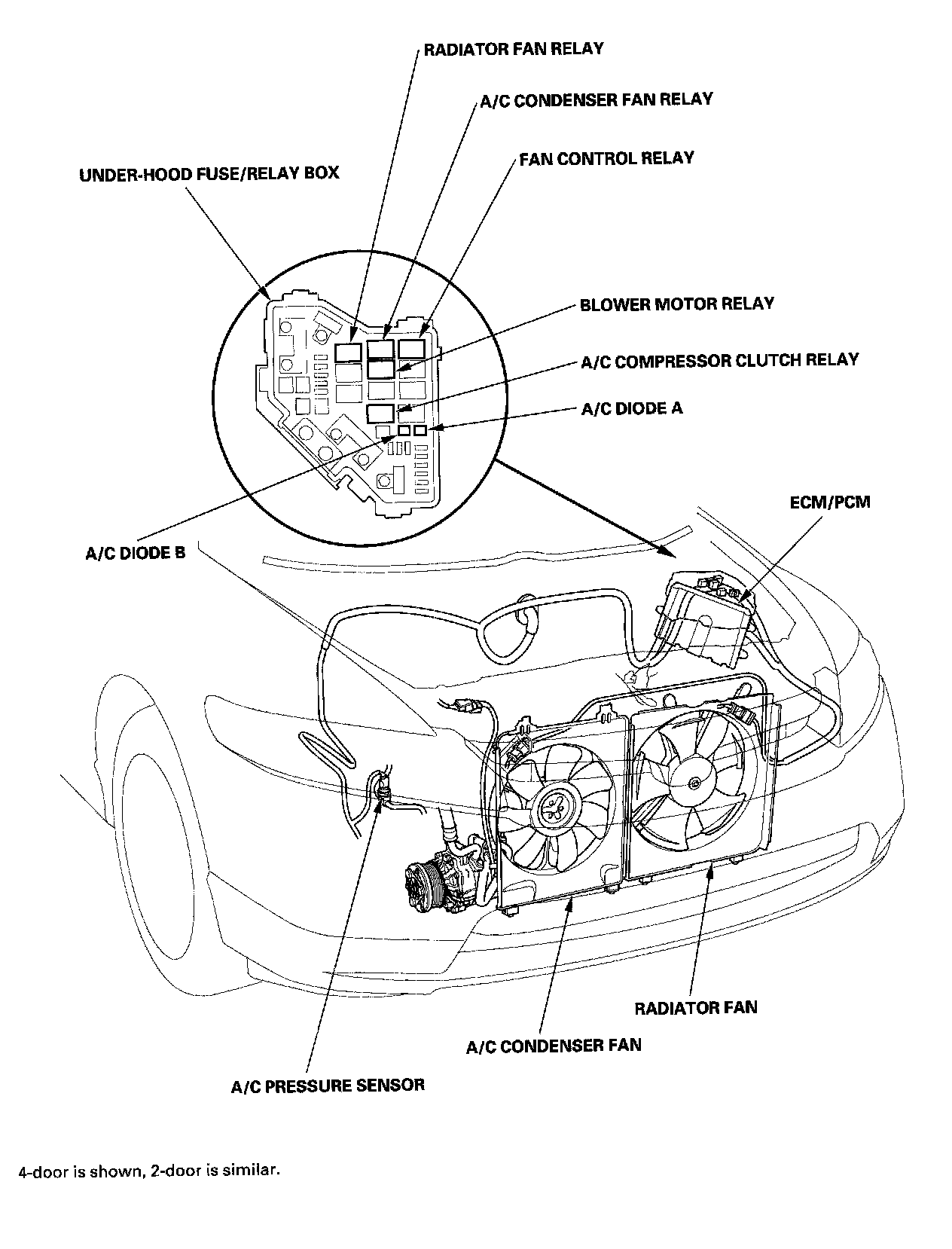

Fan Controls Component Location Index:

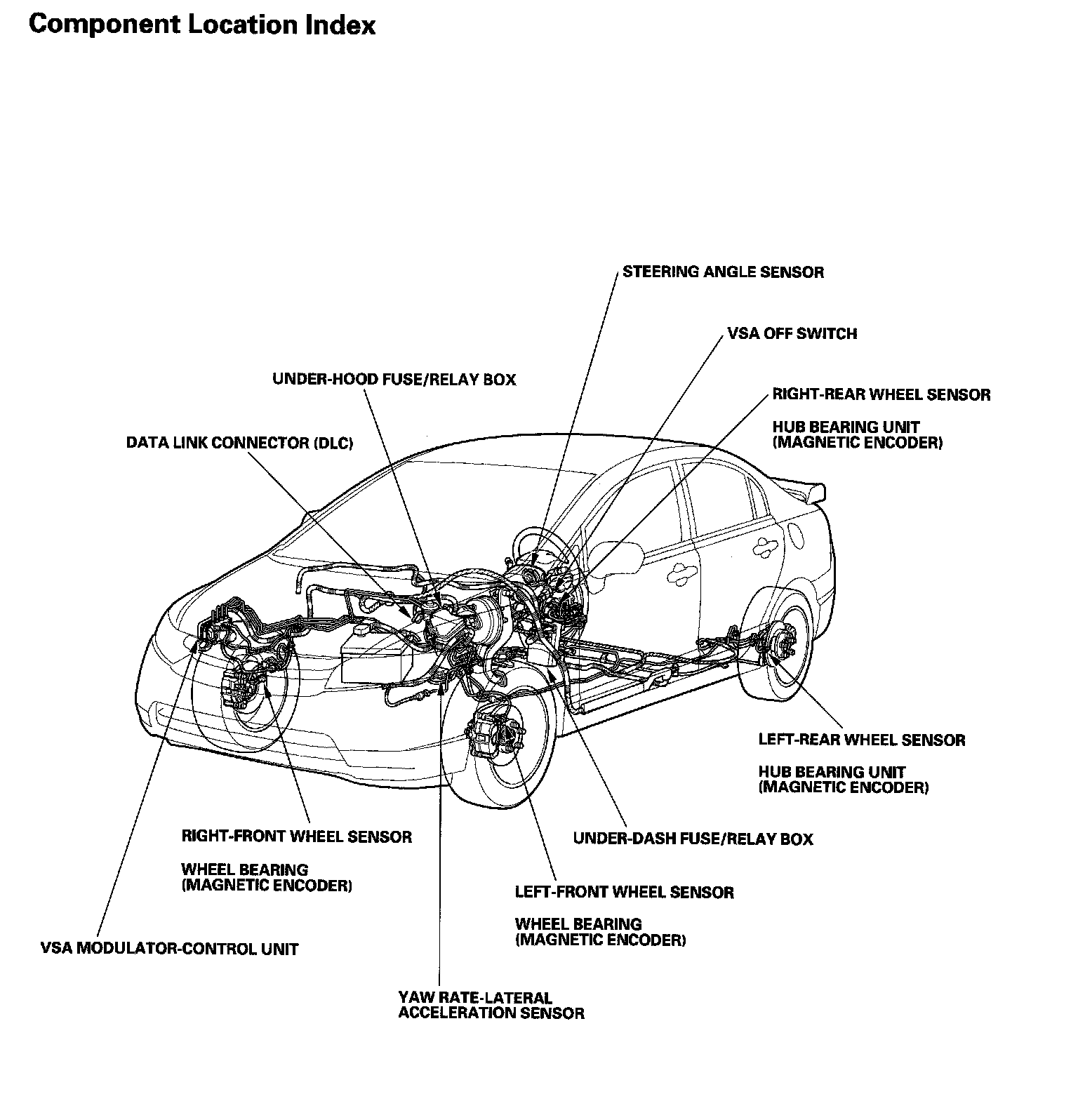

VSA (Vehicle Stability Assist) Component Location Index:

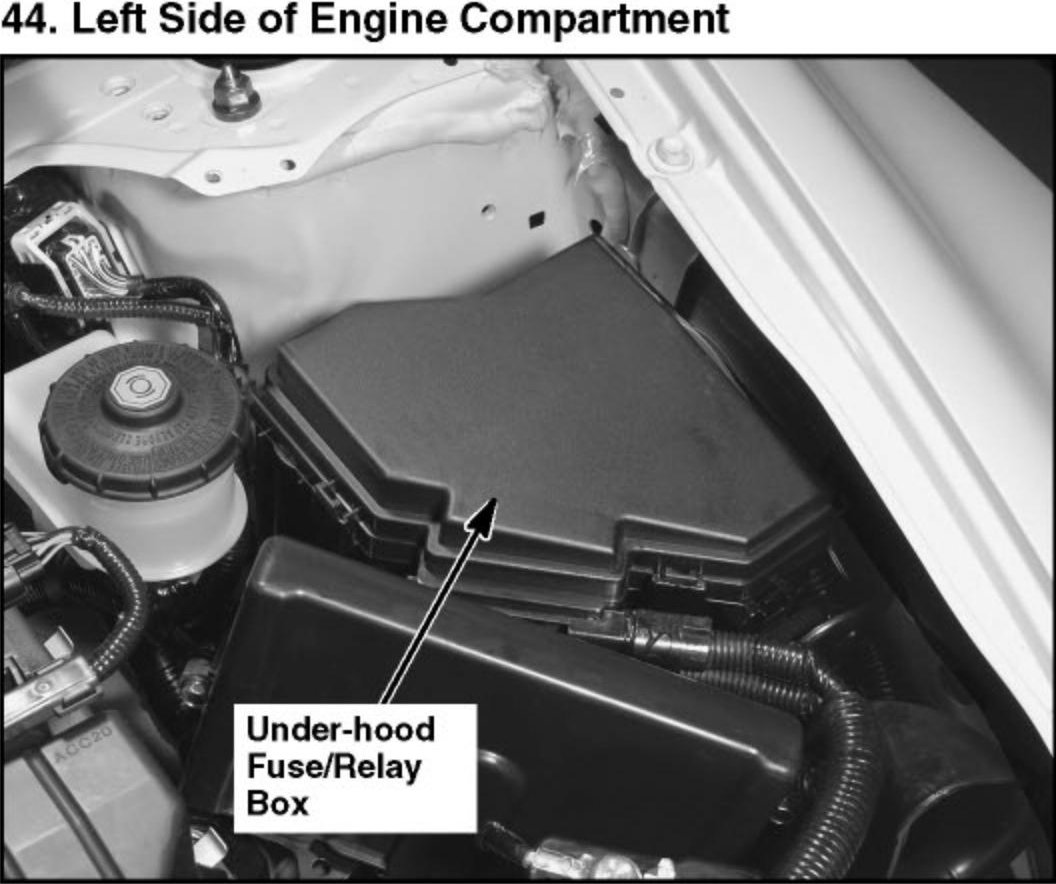

44. Left Side of Engine Compartment:

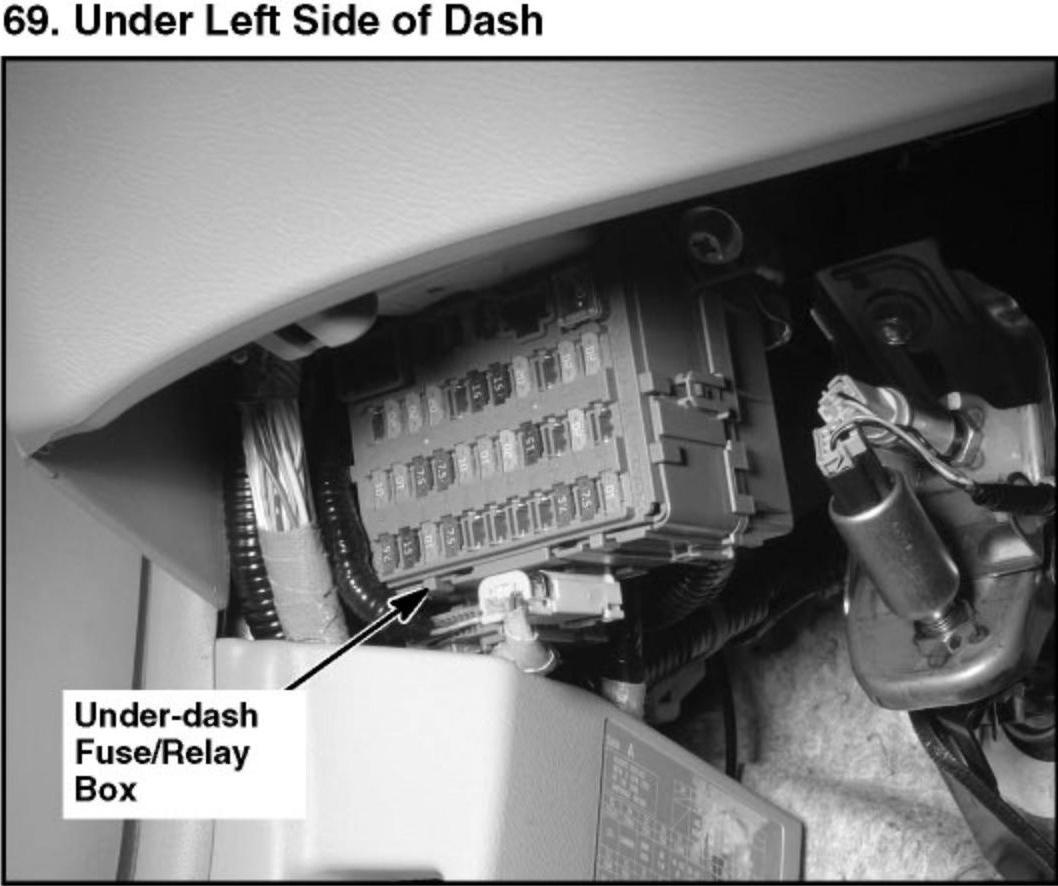

69. Under Left Side of Dash:

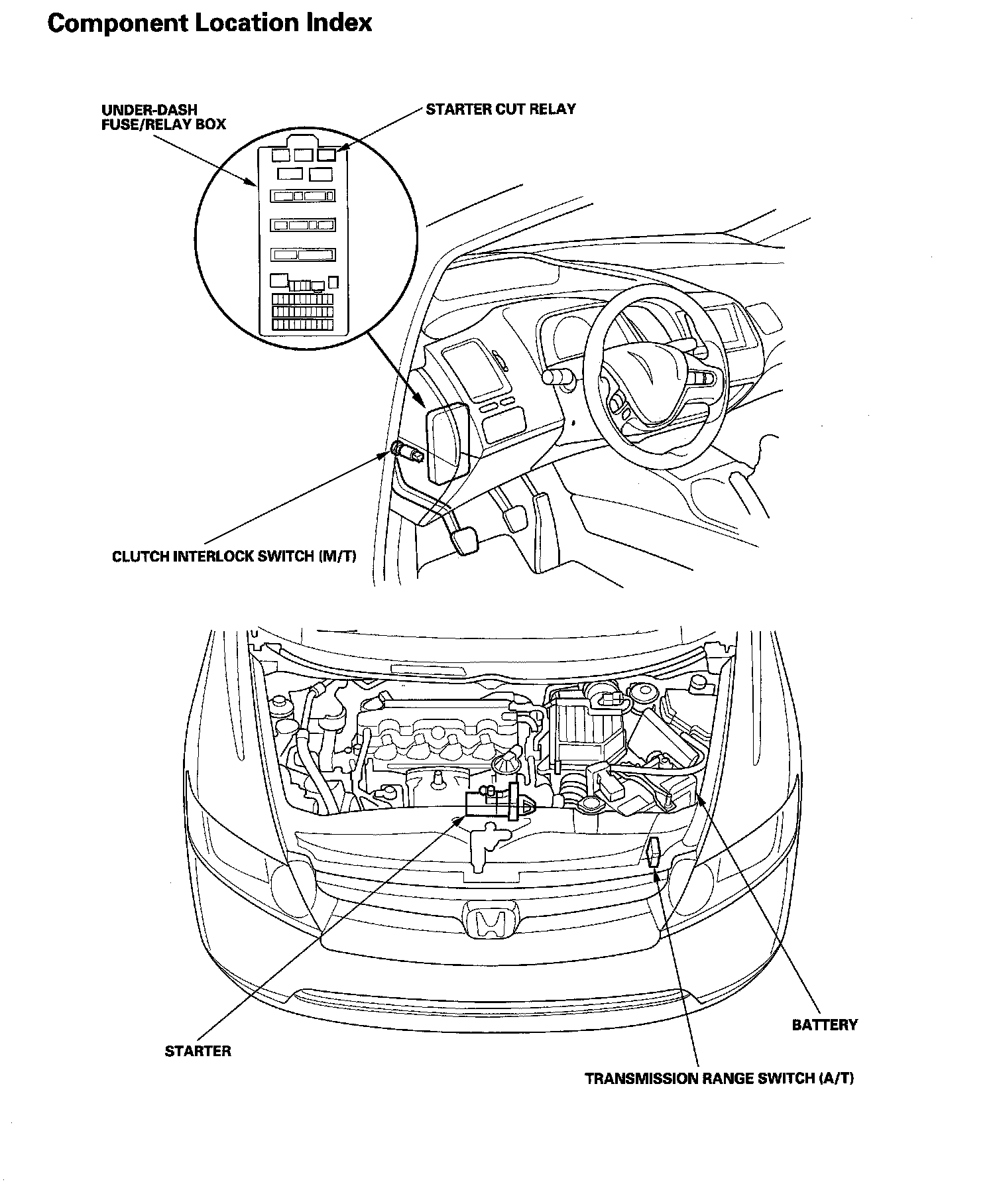

Starting System Component Location Index:

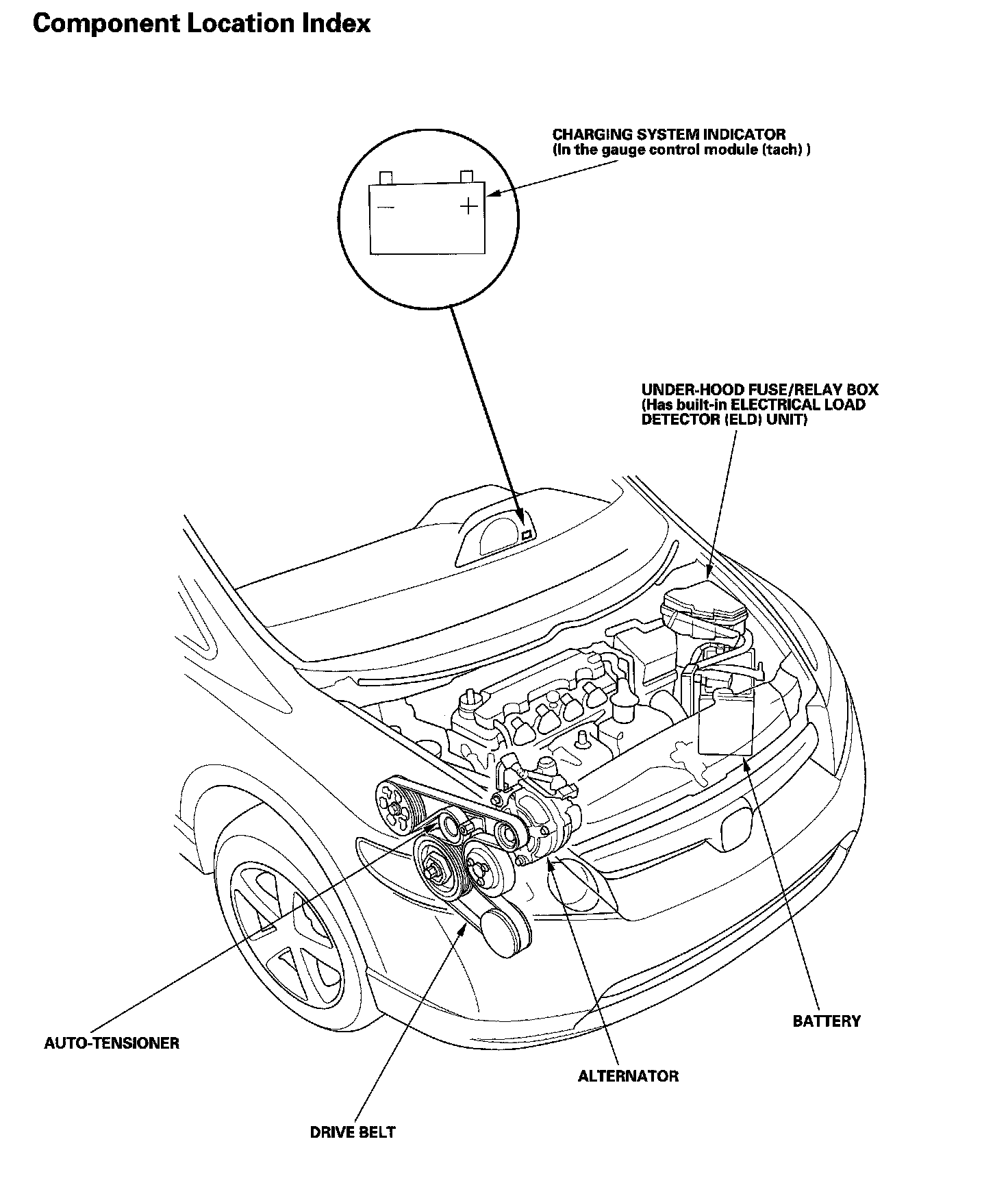

Charging System Component Location Index:

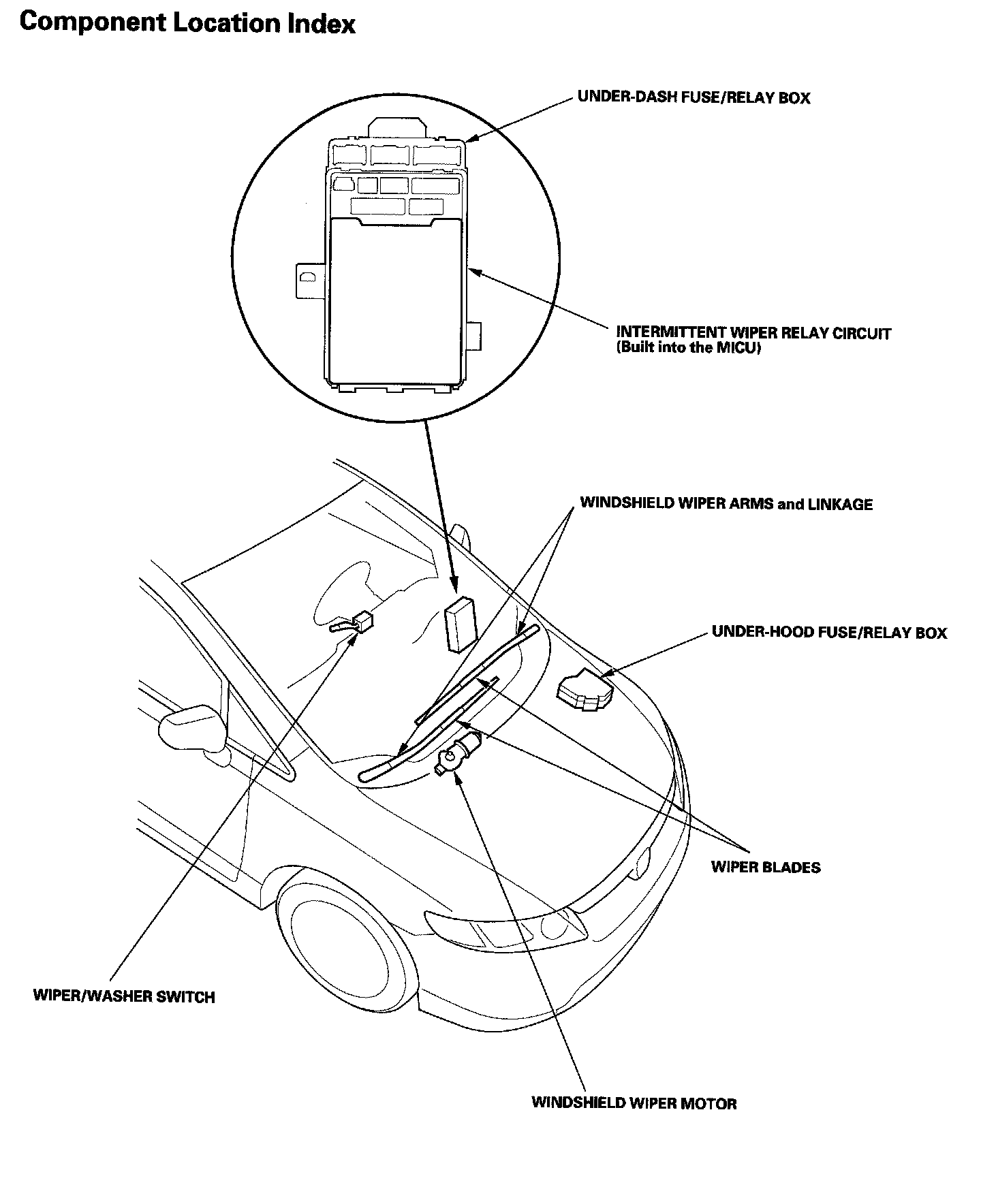

Wipers/Washers Component Location Index:

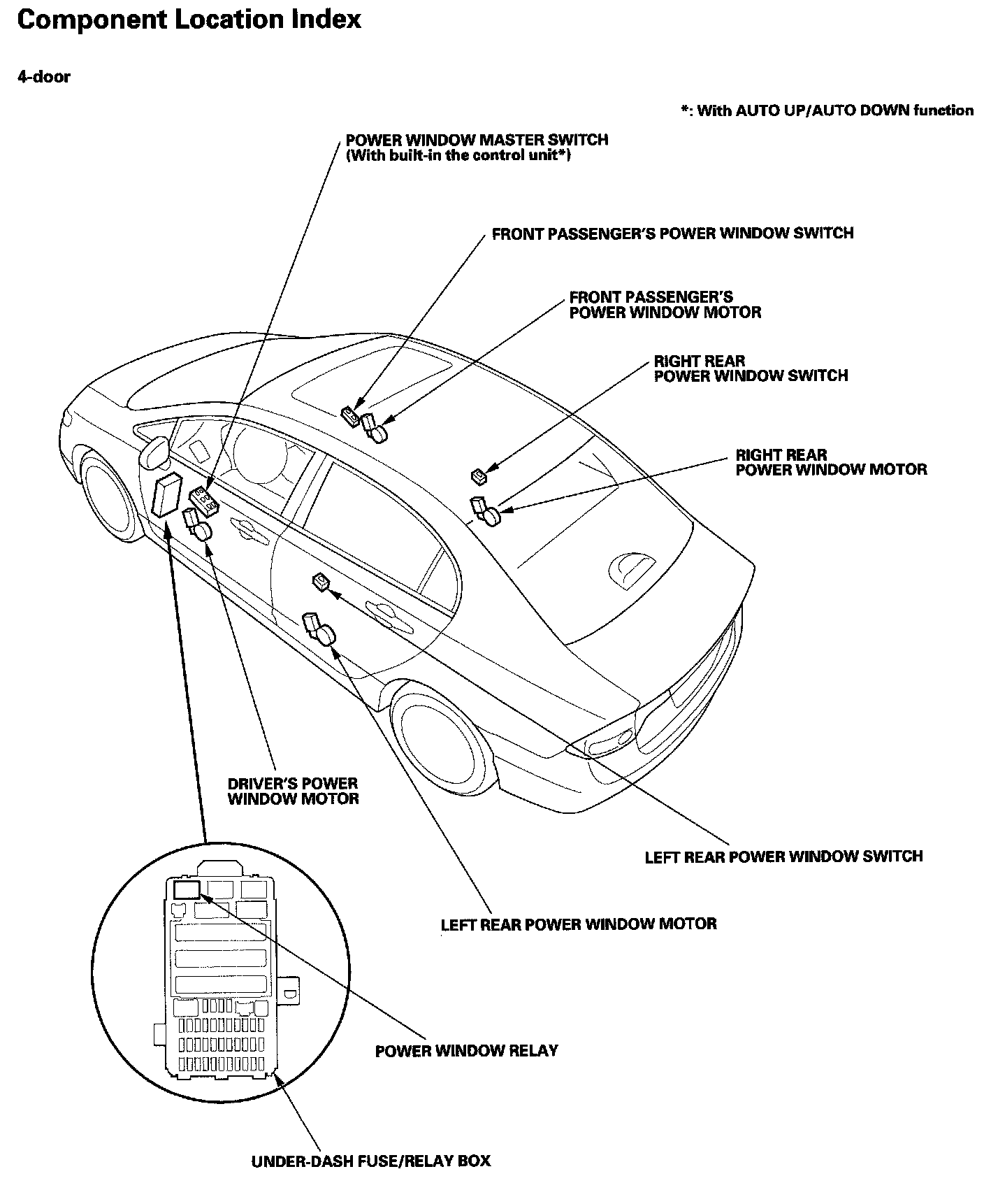

Power Windows Component Location Index:

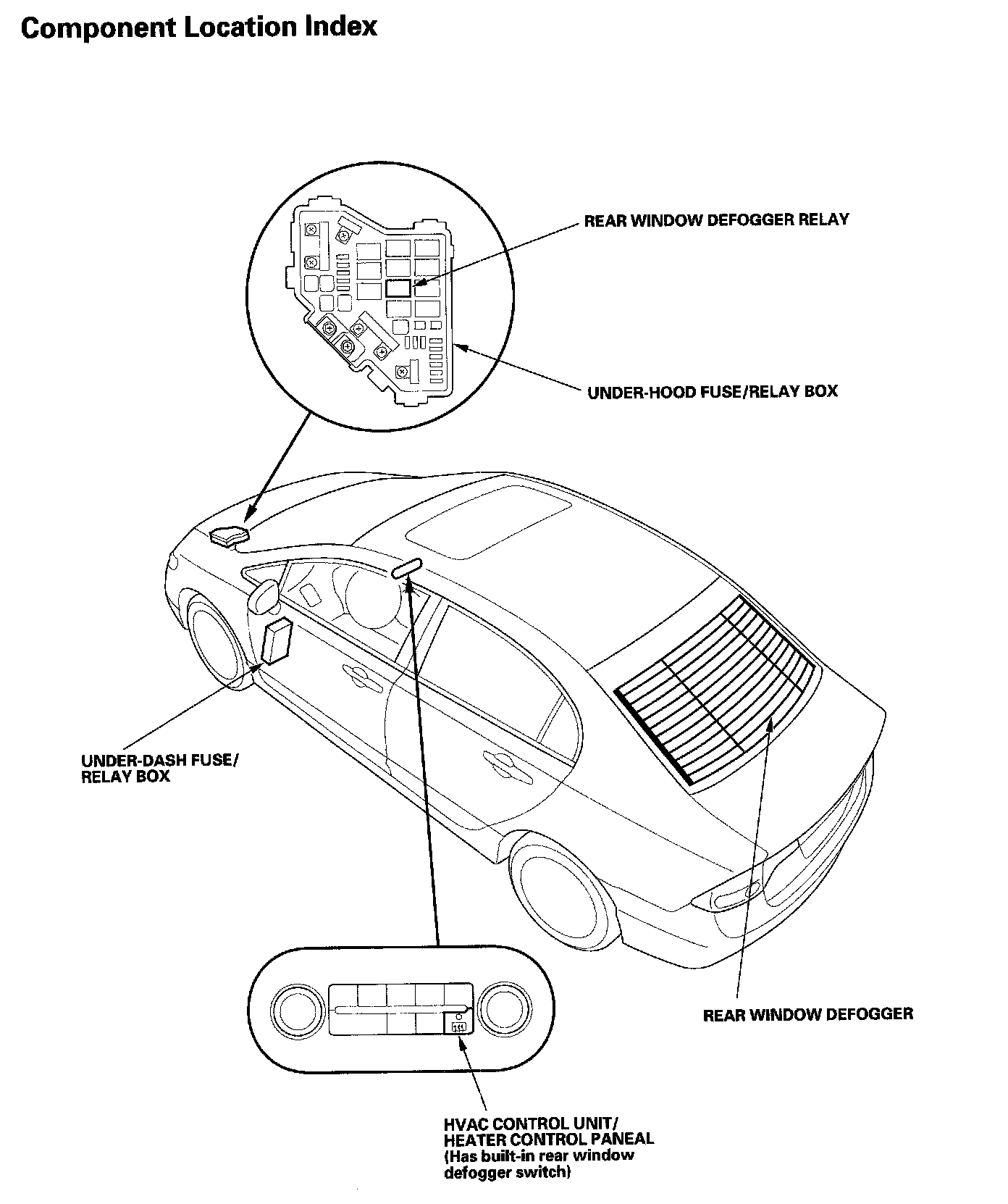

Rear Window Defogger Component Location Index:

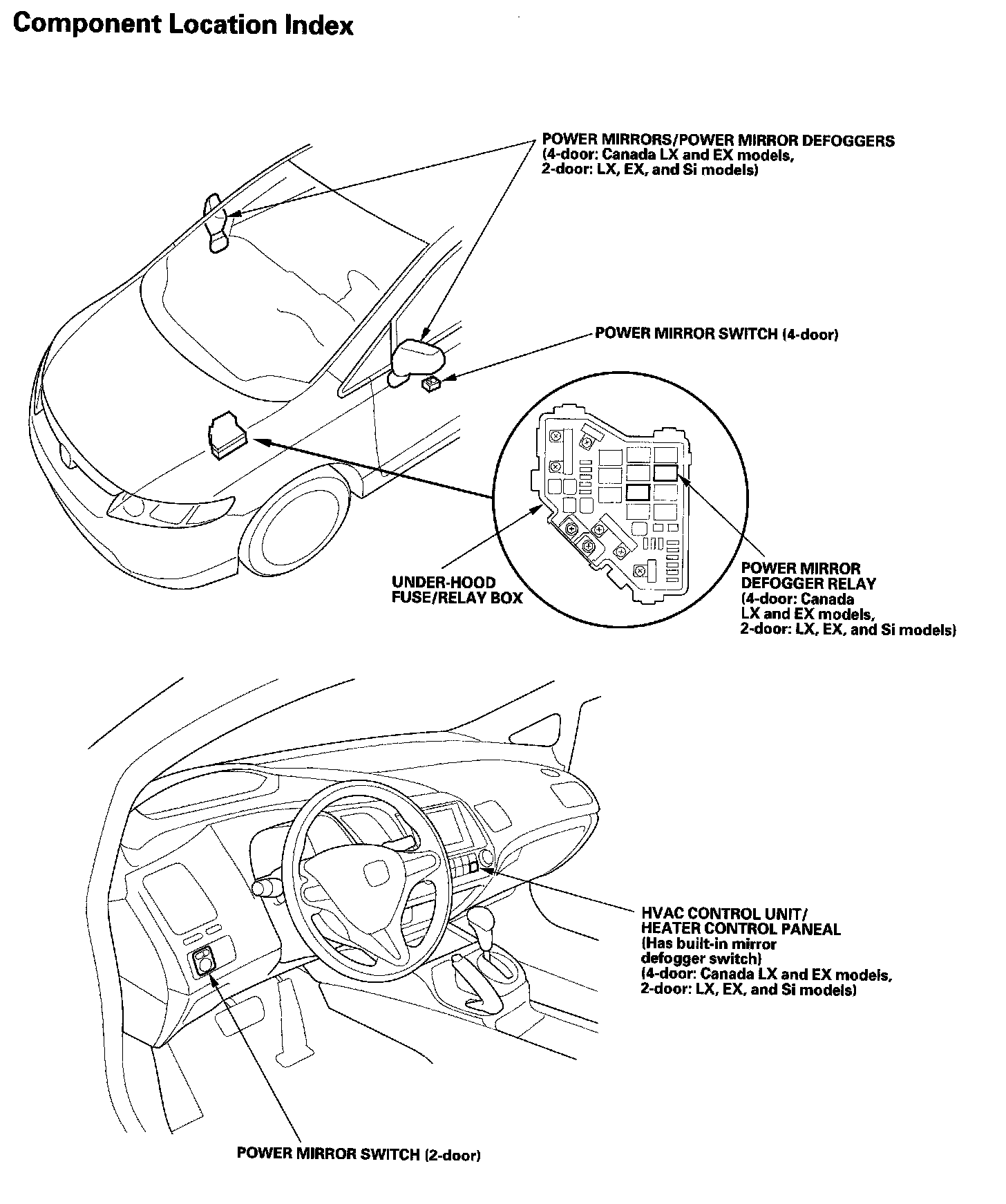

Power Mirrors Component Location Index:

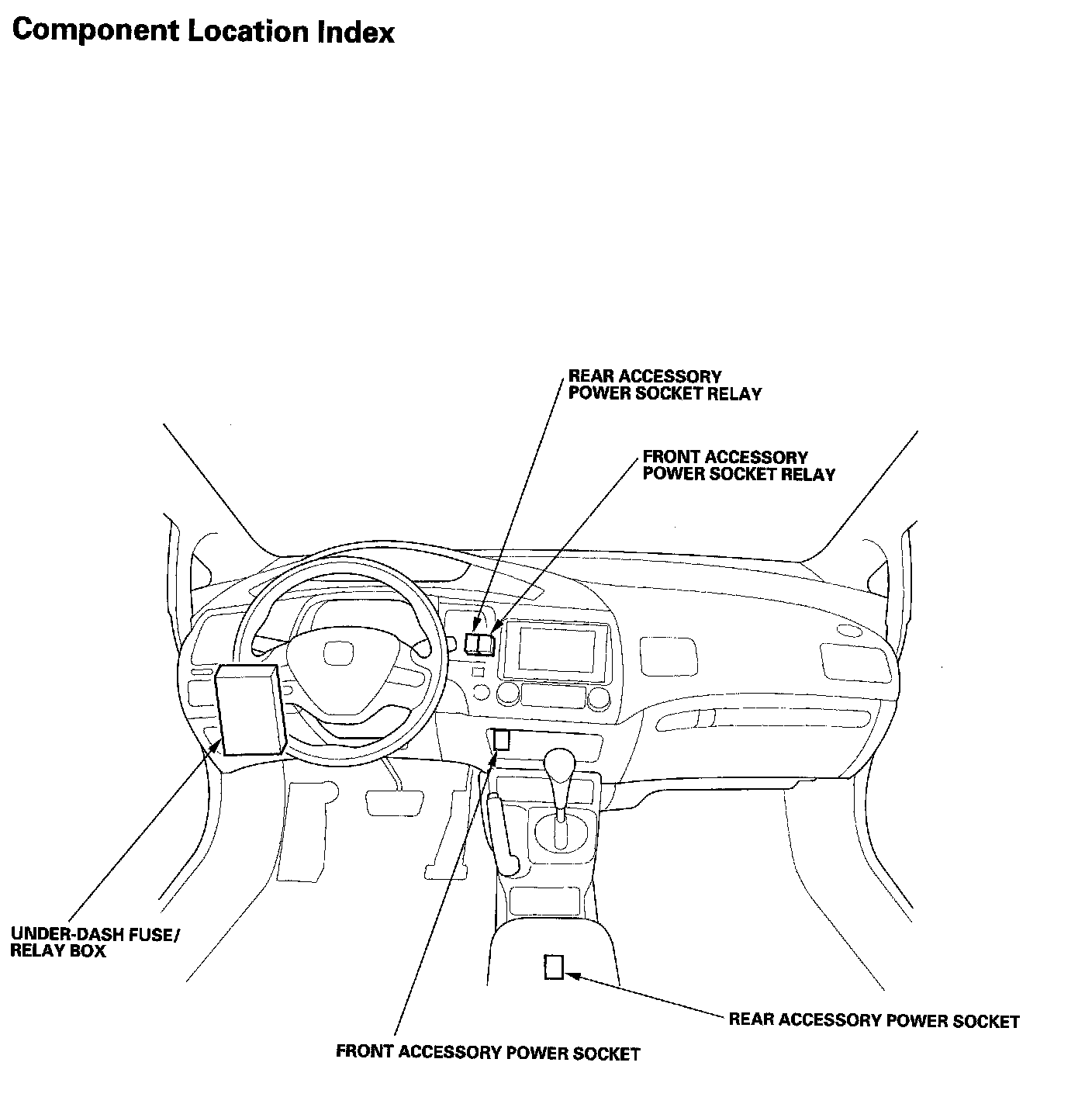

Accessory Power Sockets Component Location Index:

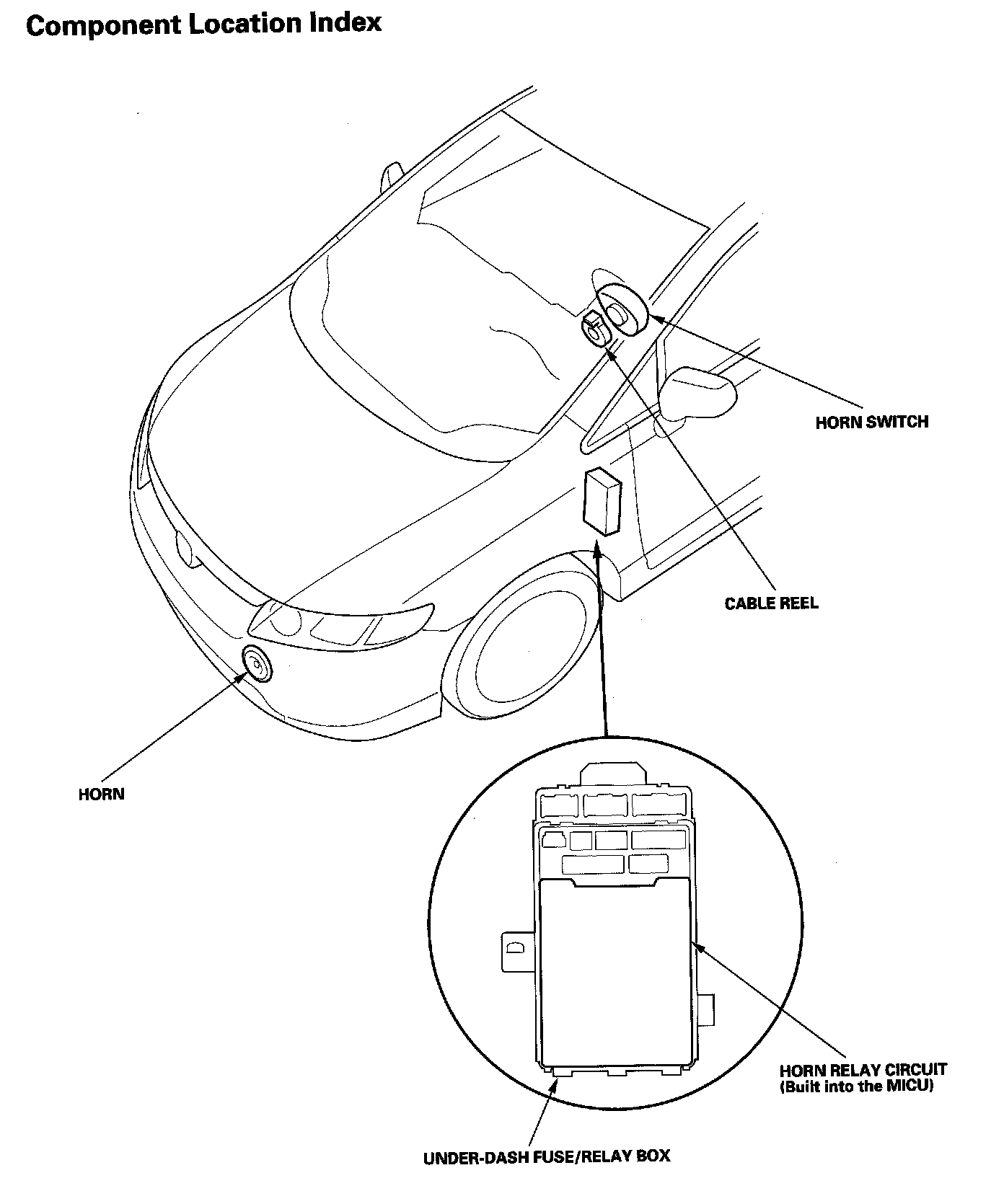

Horns Component Location Index:

Relay And Control Unit Locations Dashboard:

Relay And Control Unit Locations Engine Compartment:

Heating/Air Conditioning Component Location Index:
