Component Location Index

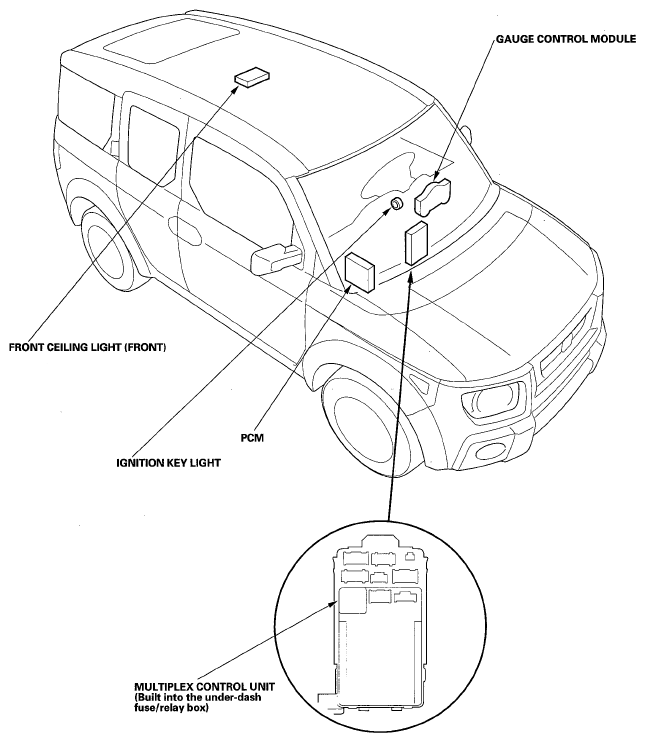

Fig 1: Identifying Multiplex Control System Replacement Components
G05451548Courtesy of AMERICAN HONDA MOTOR CO., INC.
