Pressure Intensifying Mode

VSA NO valve closed, VSA NC valve open, inlet valve open, outlet valve closed, pump motor ON.

The reservoir and master cylinder fluid is pumped out by the pump, through the damping chamber, to the front caliper.

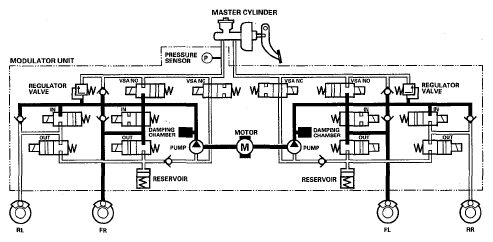

Fig 1: Identifying TCS Control - Pressure Intensifying Mode

Courtesy of AMERICAN HONDA MOTOR CO., INC.
