Home
>>
Honda
>>
2007
>>
Element SC, Standard
>>
Repair and Diagnosis
>>
Accessories & Equipment
>>
Cruise Control Systems
>>
Component Location Index
>>
'09-11 Models
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
'09-11 Models

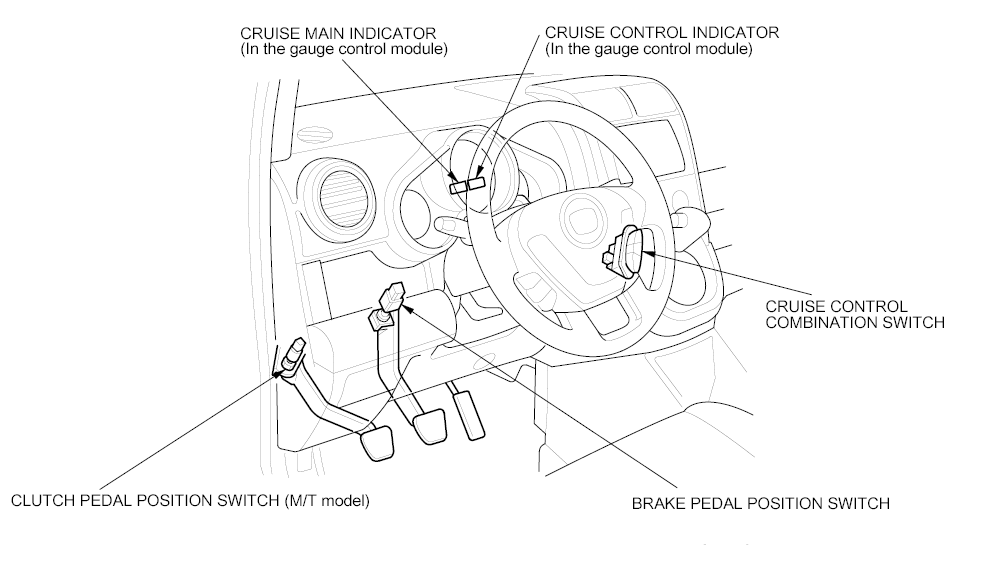

Fig 1: Identifying Cruise Control Replacement Components (1 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

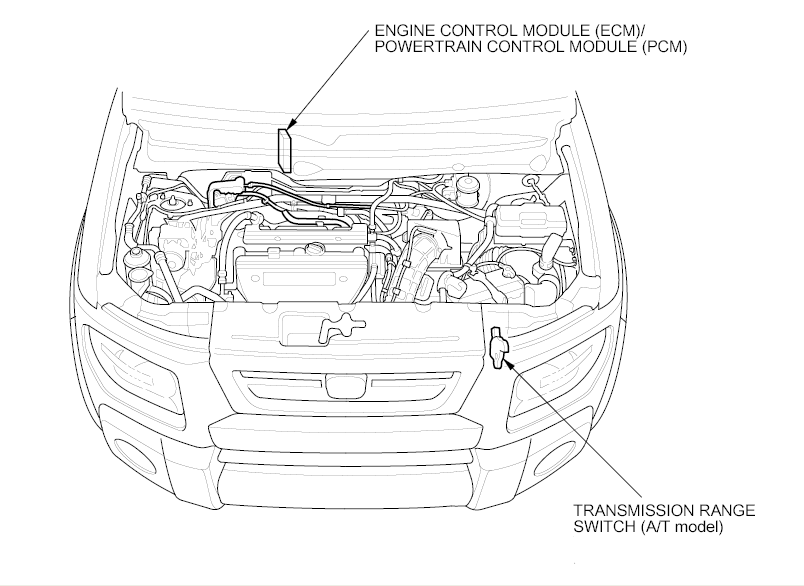

Fig 2: Identifying Cruise Control Replacement Components (2 Of 2)
Courtesy of AMERICAN HONDA MOTOR CO., INC.
