Overview of navigation display

The illumination input from the gauge brightness control with the headlights on provides back lighting for the buttons surrounding the screen.

These screens allow you to troubleshoot the navigation display. Select the item you want to troubleshoot, and follow the diagnostic instructions.

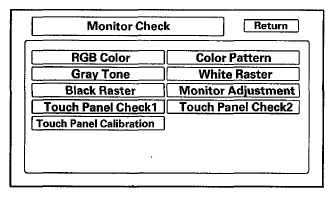

Fig 1: Navigation Screen Display - Monitor Check

Courtesy of AMERICAN HONDA MOTOR CO., INC.
