SC Model

NOTE:
  • Put on gloves to protect your hands.
  • Use the appropriate tool from the KTC trim tool set to avoid damage when prying components.
  • Take care not to scratch the center console and related parts.
  1. Remove the these items:
  2. Gently pull out the driver's console trim (A) to detach the clips (B, C), then remove the trim by releasing the hooks (D).
    Fig 1: Identifying Trim By Releasing Hooks
    G05451019Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the screws, then remove the driver's center console side trim (A) from the center console (B).
    Fig 2: Identifying Center Console Trim & Screws
    G05451020Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Remove the screws (A, B), and pull out the passenger's console trim (C) to detach the clips (D), then remove it.
    Fig 3: Identifying Passenger's Console Trim Clips & Screws
    G05451021Courtesy of AMERICAN HONDA MOTOR CO., INC.
  5. Remove the screws, then remove the center passenger's console side trim (A) from the center console (B).
    Fig 4: Identifying Center Passenger's Console Trim Screws
    G05451022Courtesy of AMERICAN HONDA MOTOR CO., INC.

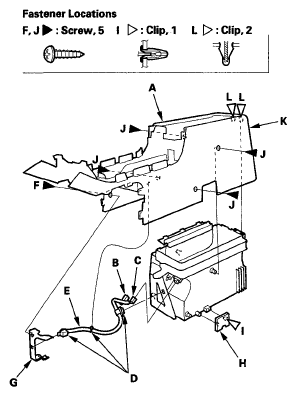

  6. Remove the center console (A).
    1. Disconnect the console accessory power socket connector (B) and auxiliary jack connector (C), and detach the harness clips (D), then remove the console wire harness (E).
    2. Remove the screw (F), and remove the harness bracket (G).
    3. Pull out the maintenance lid (H) to detach the clip (I), and remove it.
    4. Remove the screws (J), then pull out the center console (K) to detach the clips (L), and remove it.
      Fig 5: Identifying Center Console
      G05451023Courtesy of AMERICAN HONDA MOTOR CO., INC.
  7. Remove the screws, and remove the lower hinge bracket (A) and lower hinge (B) from the console box (C).
    Fig 6: Identifying Console Box Lower Hinge Bracket & Screws
    G05451024Courtesy of AMERICAN HONDA MOTOR CO., INC.

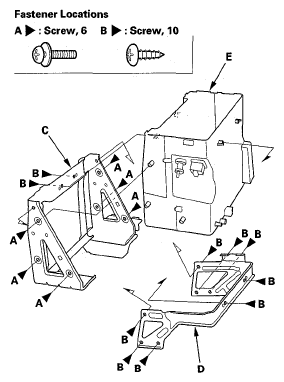

  8. Remove the screws (A, B), and separate the frame brackets (C, D), then remove the center console box (E).
    Fig 7: Identifying Center Console Box Frame Brackets & Screws
    G05451025Courtesy of AMERICAN HONDA MOTOR CO., INC.
  9. Install the center console in the reverse order of removal, and note these items:
    • Check if the clips are damaged or stress-whitened, and if necessary, replace them with new ones.
    • Push the clips and hooks into place securely.
    • Make sure each connector is plugged in properly.
