For Some Models

NOTE: Take care not to tear the seams or damage the seat covers.
  1. Unzip the armrest cover (A), and pull back the armrest cover.

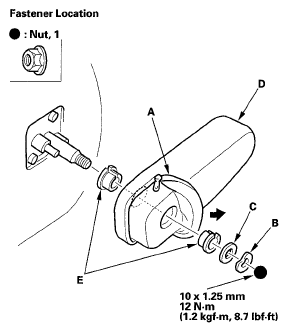

    Fig 1: Armrest Cover With Torque Specifications
    G05451091Courtesy of AMERICAN HONDA MOTOR CO., INC.
  2. Remove the nut, the wave washer (B), and the washer (C), then remove the armrest (D). If necessary, remove the bushings (E) from the armrest.
  3. Remove the bolts, then remove the armrest bracket (A).
    Fig 2: Armrest Bracket Bolts With Torque Specification
    G05451092Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the armrest in the reverse order of removal.
