Exploded View

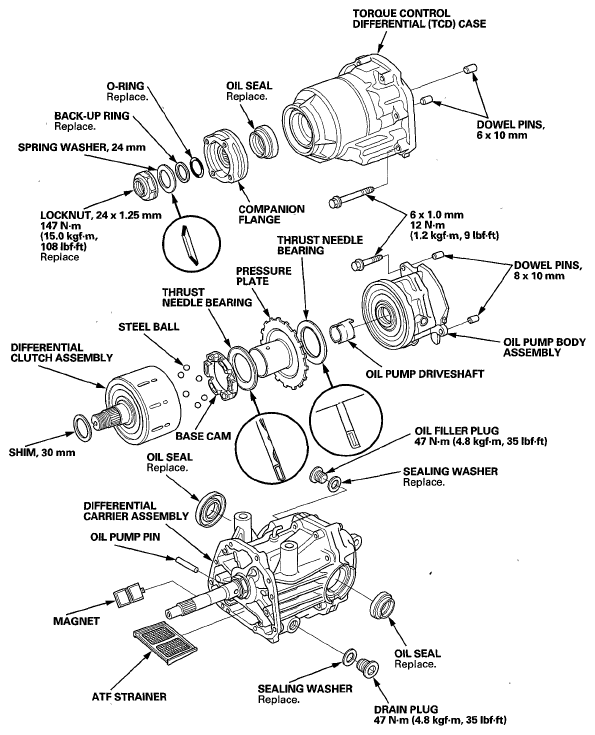

Fig 1: Exploded View Of Rear Differential Reassembly With Torque Specifications

Courtesy of AMERICAN HONDA MOTOR CO., INC.

Special Tools Required

• Holder Handle 07JAB-001020A
• Companion Flange Holder 07RAB-TB401OB

1. Apply Dual Pump Fluid II to the rubber pinion of the ATF strainer (A), then install the ATF strainer, the magnet (B), the 8x10 mm dowel pins (C), and the oil pump pin (D) in the differential carrier assembly.
   Fig 2: Identifying ATF Strainer And Magnet

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
2. Align the grooves (A) of the rear oil pump with the oil pump pins (B), then install the oil pump body assembly (C) on the differential carrier assembly.
   Fig 3: Identifying Oil Pump Pins And Grooves

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
3. Tighten the oil pump body assembly with the three mounting bolts (A), and then install the oil pump driveshaft (B) by aligning the projection (C) of the oil pump driveshaft with the groove of the front oil pump in the oil pump body assembly.
   Fig 4: Oil Pump Driveshaft And Mounting Bolts With Torque Specifications

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
4. Install the thrust needle bearing (D).
5. Install the six steel balls (A), the base cam (B), the thrust needle bearing (C), and the pressure plate (D) on the clutch assembly (E).
   NOTE: Align the tabs (F) of the pressure plate with the grooves (G) of the clutch assembly.
   Fig 5: Identifying Steel Balls, Base Cam And Thrust Needle Bearing

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
6. Make a mark (A) on the outside of the clutch assembly (B) that corresponds to the position of the tab (C) of the pressure plate (D) as shown. Make a mark (E) on the outside of the oil pump assembly (F) that corresponds to the position of the groove (G) in the oil pump driveshaft (H) as shown.
   Fig 6: Identifying Mark On Outside Of Clutch Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
7. Support the pressure plate and the clutch assembly by hand so that they do not misalign. With the marks aligned, install the clutch assembly to the oil pump assembly. Install the 30 mm shim (I).
8. Make sure that the clutch assembly and the pressure plate are correctly installed. If the clutch assembly can be pushed down then go to next step. If not, return to step  5.
   NOTE: If incorrectly installed, the clutch assembly may be damaged when excessive force is applied.
   Fig 7: Installing Clutch Assembly

   Courtesy of AMERICAN HONDA MOTOR CO., INC.
9. Remove the dirt and oil from the sealing surfaces. Apply liquid gasket (P/N 08717-0004, 08718-0001, 08718-0003, or 08718-0009) evenly to the sealing surface. Install the component with in 5 minutes of applying the liquid gasket. Make sure you seal the entire circumference of the bolt holes to prevent fluid leakage.
   NOTE:

   • If you apply liquid gasket P/N 08718-0012, the component must be installed within 4 minutes.
   • If too much time has passed after applying the liquid gasket, remove the old liquid gasket and residue, then reapply the new liquid gasket.
   • Allow it to cure at least 30 minutes after assembly before filling the differential with fluid.
     Fig 8: Identifying Clutch Housing Sealant Area

     Courtesy of AMERICAN HONDA MOTOR CO., INC.
10. Install the 6x10 mm dowel pins (A) and the torque control differential (TCD) case (B). Torque the eight mounting bolts in a crisscross pattern in several steps.
    NOTE: Be careful not to damage the lip of the oil seal (C) when installing the torque control differential (TCD) case on the differential carrier case. If the oil seal is damaged, replace it.
    Fig 9: Dowel Pins And Torque Control Differential (TCD) Case With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
11. Install the companion flange (A) to the shaft clutch guide.
    NOTE: Check if the reference mark (B) exist on the companion flange an the shaft clutch guide; Install the companion flange to the shaft of the clutch guide by alighning the reference mark.
    Fig 10: Identifying Companion Flange, O-Ring, Back-Up Ring And Disc Spring Washer

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
12. Install a new O-ring (C), a new back-up ring (D), the spring washer (E), and a new locknut (F).

    Specified Torque:

    147 N.m (15.0 kgf.m, 108 lbf.ft)

    Fig 11: Companion Flange Holder And Holder Handle With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
13. Stake the locknut tab (A) into the groove in the clutch guide.
    Fig 12: Staking Locknut Tab Into Groove In Clutch Guide

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
14. Install the drain plug (A) and the oil filler plug (B) with new sealing washers (C).
    Fig 13: Drain Plug And Oil Filler Plug With Torque Specifications

    Courtesy of AMERICAN HONDA MOTOR CO., INC.
15. Reinstall rear differential mounting brackets A and B, and the rear differential mounting stiffener (see REAR DIFFERENTIAL MOUNT REPLACEMENT  ).
