Climate Control Switch Bulb Replacement

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the climate control switch (see CLIMATE CONTROL SWITCH REMOVAL/INSTALLATION  ).

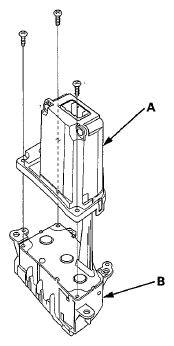

  2. Remove the screws and cover (A) from the driver's climate control switch (B).
    Fig 1: Locating Cover And Driver's Climate Control Switch
    G06424161Courtesy of AMERICAN HONDA MOTOR CO., INC.
  3. Remove the bulb(s) (A) with a flat-tip screwdriver.
    Fig 2: Locating Driver's Climate Control Switch Bulbs
    G06424162Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. Install the bulb(s) in the reverse order of removal. After installation, operate the various functions to see whether it works properly.
