Without Navigation System

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Remove the audio unit (see WITHOUT NAVIGATION SYSTEM ).
Remove the self-tapping screws and the climate control unit (A). If necessary, replace the bulbs (B).

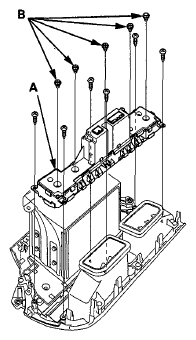

Fig 1: Locating Climate Control Unit And Bulbs
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Install the unit in the reverse order of removal.
Run the self-diagnostic function to confirm that there are no problems in the system (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITHOUT THE HDS ).
