Component Location Index: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

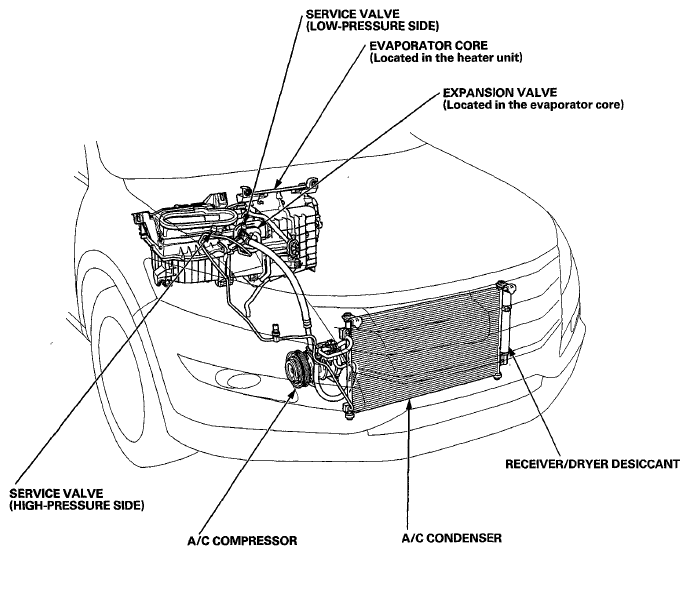

Fig 1: Identifying Climate Control Underhood Component Locations (1 Of 2)
G06423991Courtesy of AMERICAN HONDA MOTOR CO., INC.

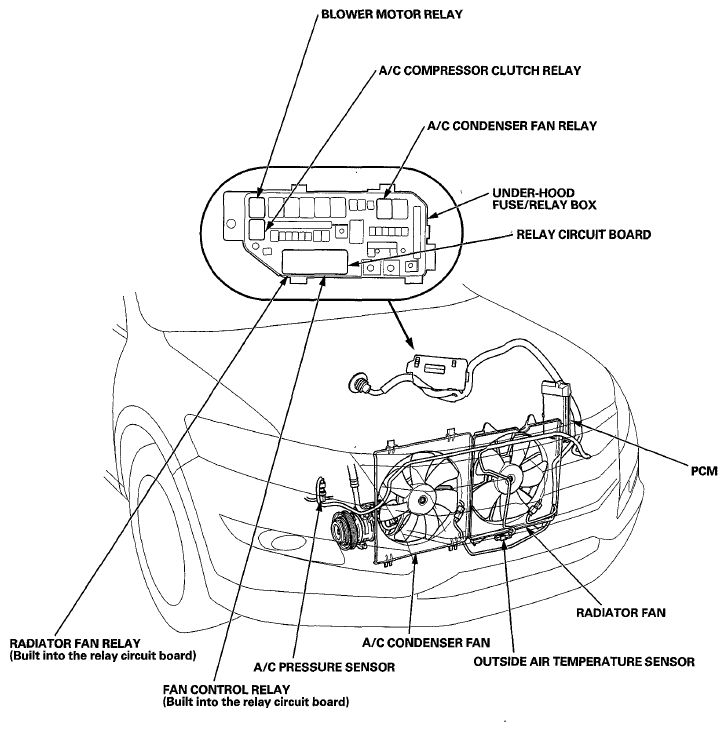

Fig 2: Identifying Climate Control Underhood Component Locations (2 Of 2)
G06423992Courtesy of AMERICAN HONDA MOTOR CO., INC.
