Humidity Sensor Test

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Before testing the sensor, check for climate control DTCs (see HOW TO CHECK FOR DTCS WITH THE HDS  ).
  1. Remove the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
  2. Connect the humidity/in-car temperature sensor 4P connector.
  3. Turn the ignition switch to ON (II). Measure the voltage between the terminals with the (+) probe on terminal No. 2 and the (-) probe on terminal No. 3 with the connector connected.

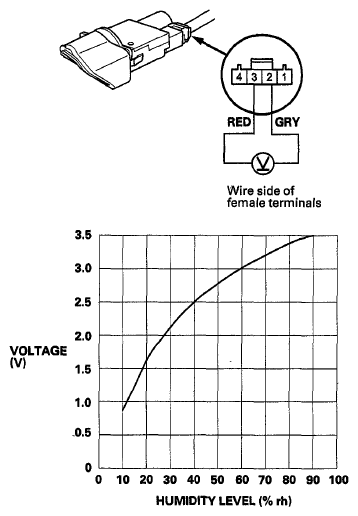

    Fig 1: Measuring Voltage Between Terminals With (+) Probe On Terminal No. 2 And (-) Probe On Terminal No. 3 With Connector Connected
    G06424138Courtesy of AMERICAN HONDA MOTOR CO., INC.
  4. If the voltage is not as specified, replace the humidity/in-car temperature sensor (see HUMIDITY/IN-CAR TEMPERATURE SENSOR REPLACEMENT  ).
