Navigation Communication Line Circuit Troubleshooting

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

Operate the climate control system in several modes.
Is the climate control system OK?

YES -Go to step 2.

NO -Do the Self-Diagnostic Function with the HDS (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITH THE HDS ) or the climate control unit (see HOW TO USE THE SELF-DIAGNOSTIC FUNCTION WITHOUT THE HDS ).
Do the System Links in navigation System Diagnostic Mode (see SYSTEM DIAGNOSTIC MODE ).
Is the A/C icon red?

YES -Go to step 3.

NO -Go to step 9.
Turn the ignition switch to LOCK (0).
Disconnect navigation unit connector B (32P).
Disconnect climate control unit connector B (12P).

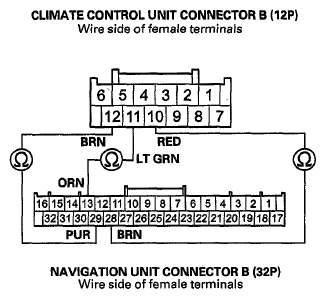

Check for continuity between the following terminals of climate control unit connector B (12P) and navigation unit connector B (32P).
12P: 32P:

No. 10 No. 28

No. 11 No. 13

No. 12 No. 29

Fig 1: Checking For Continuity Between Following Terminals Of Climate Control Unit Connector B (12P) And Navigation Unit Connector B (32P)
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Go to step 7.

NO -Repair an open in the wire(s) between the climate control unit and the navigation unit.
Check for continuity between body ground and climate control unit connector B (12P) terminals No. 10, No. 11, and No. 12 individually.

Fig 2: Checking For Continuity Between Body Ground And Climate Control Unit Connector B (12P) Terminals No. 10, No. 11, And No. 12 Individually
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is there continuity?

YES -Repair a short to body ground in the wire(s) between the climate control unit and the navigation unit.

NO -Go to step 8.
Reconnect climate control unit connector B (12P).
Connect navigation unit connector B (32P) terminals No. 13, and No. 29 with a jumper wire.

Fig 3: Connecting Navigation Unit Connector B (32P) Terminals No. 13, And No. 29 With Jumper Wire
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Press and hold both the AUTO button and the ON/OFF button, then turn the ignition switch to ON (II).
Check the mode indicator displaying in the audio-HVAC subdisplay unit.

Fig 4: Checking Mode Indicator Displaying In Audio-HVAC Subdisplay Unit
Courtesy of AMERICAN HONDA MOTOR CO., INC.

Is the HEAT/VENT indicator solid with the remaining icons blinking?

YES -Do the Unit Check in the navigation System Diagnostic Mode (see UNIT CHECK (QUICK CHECK) ).

NO -Substitute a known-good climate control unit, and recheck. If the symptom goes away, replace the original climate control unit (see CLIMATE CONTROL UNIT REMOVAL/INSTALLATION ).
