Humidity/In-Car Temperature Sensor Quality: Notes

WARNING: This page does not describe the selected car, but rather 6 other vehicles, including the 2015 Honda Crosstour, 2014 Honda Crosstour, 2013 Honda Crosstour, 2012 Honda Crosstour, and 2011 Honda Accord Crosstour. However, it is still accessible from the selected car via links, so may be relevant.

The capacitance of the humidity sensor changes by the adsorption and the evaporation of moisture. The resistance change of the humidity sensor changes the output voltage.

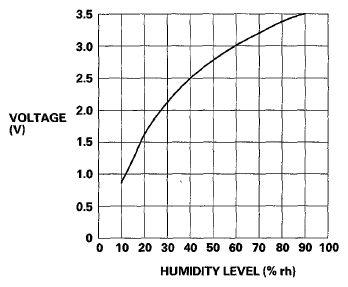

Fig 1: Humidity/In-Car Temperature Sensor Quality Graph
G06424005Courtesy of AMERICAN HONDA MOTOR CO., INC.
