Exploded View

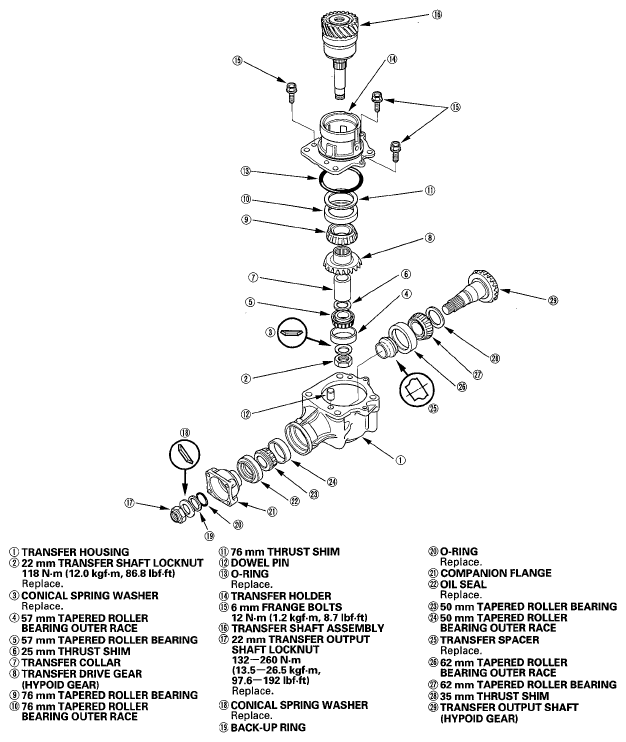

Fig 1: Exploded View Of Transfer Assembly With Torque Specifications
Courtesy of AMERICAN HONDA MOTOR CO., INC.
Courtesy of AMERICAN HONDA MOTOR CO., INC.
