Security Control Unit Input Test
- Remove the driver's dashboard under cover (see DRIVER'S DASHBOARD UNDERCOVER REMOVAL/INSTALLATION ).

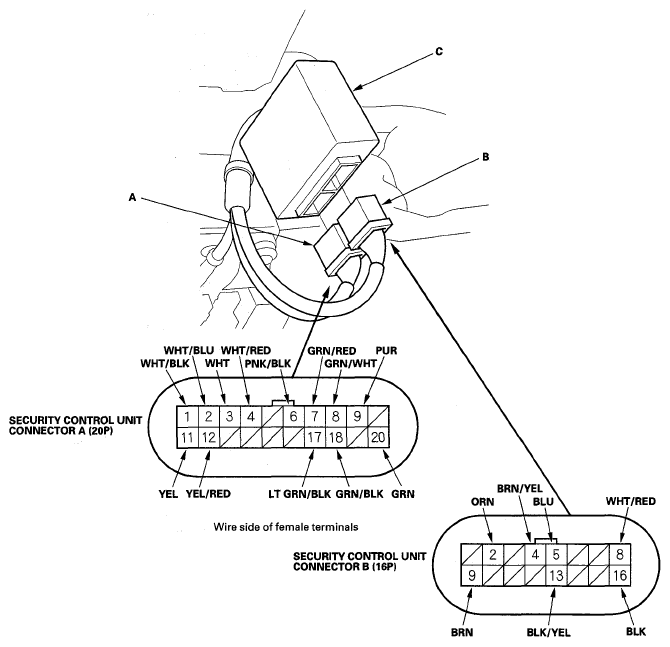

- Disconnect security control unit connector A (20P) and connector B (16P) from the control unit (C).
- Inspect all connector and socket terminals to be sure they are all making good contact.
- If the terminals are bent, loose or corroded, repair them as necessary, and recheck the system.
- If the terminals look OK, go to step 4.
- With the connectors still disconnected, make these input tests at the appropriate connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, go to step 5.
SECURITY CONTROL UNIT INPUTCavity Wire Test condition Test: Desired result Possible cause if result is not obtained B13 BLK/YEL Under all conditions Attach to ground: The security indicator should come on - Blown No. 8 (10 A) fuse in the under-hood fuse/relay box
- Faulty gauge control module
- An open in the wire
B9 BRN Under all conditions Check for continuity to ground: There should be continuity. - Poor ground (G401)
- Faulty audio unit
- An open in the wire
A6 PNK/BLK Under all conditions Check for continuity between the A6 terminal and gauge control module connector B (14P) No. 4 terminal (connectors disconnected): There should be continuity. An open in the wire A17 LT GRN/ BLK Under all conditions Check for continuity between the A17 terminal and gauge control module connector B (14P) No. 5 terminal (connectors disconnected): There should be continuity. An open in the wire B2 ORN Under all conditions Attach to ground: Horn should sound - Blown No. 16 (15 A) fuse in the under-hood fuse/relay box.
- Faulty horn relay
- Faulty horn
- Faulty under-hood fuse/relay box
- An open in the wire
B4 BRN/YEL Under all conditions Attach to ground: Headlights should come on - Faulty headlight relay
- Faulty under-hood fuse/relay box
- An open in the wire
B5 BLU Under all conditions Attach to ground: The parking lights and dash lights should come on - Blown No. 22 (10 A) fuse in the under-dash fuse/relay box
- Faulty taillight relay
- An open in the wire
- Reconnect the connectors to the security control unit, and perform these input tests at the appropriate connectors.
- If any test indicates a problem, find and correct the cause, then recheck the system.
- If all the input tests prove OK, the security control unit internal circuit must be faulty.
SECURITY CONTROL UNIT INPUT
| Cavity | Wire | Test condition | Test: Desired result | Possible cause if result is not obtained |
|---|---|---|---|---|
| B8 | WHT/RED | Under all conditions | Measure the voltage to ground: There should be battery voltage |
|
| A11 | YEL | Ignition switch ON (II) | Measure the voltage to ground: There should be battery voltage |
|
| B16 | BLK | Under all conditions | Measure the voltage to ground: There should be less than 0.5 V |
|
| A20 | GRN | Driver's door open | Measure the voltage to ground: There should be less than 1 V |
|
| Driver's door closed | Measure the voltage to ground: There should be 5 V or more. |
|
||
| A9 | PUR | Front passenger's door open (rear doors must be closed) | Measure the voltage to ground: There should be less than 1 V |
|
| Front passenger's door closed (rear doors must be closed) | Measure the voltage to ground: There should be 5 V or more |
|
||
| Left (right) rear door open (all other doors must be closed) | Measure the voltage to ground: There should be less than 1 V |
|
||
| Left (right) rear door closed (all other doors must be closed) | Measure the voltage to ground: There should be 5 V or more |
|
||
| A8 | GRN/WHT | Ignition key is in the ignition switch | Measure the voltage to ground: There should be less than 1 V |
|
| Ignition key switch is out of the ignition switch | Measure the voltage to ground: There should be 5 V or more. |
|
||
| A18 | GRN/BLK | Hood open | Measure the voltage to ground: There should be less than 1 V. |
|
| Hood closed | Measure the voltage to ground: There should be 5 V or more. |
|
||
| A7 | GRN/RED | Tailgate open | Measure the voltage to ground: There should be less than 1 V. |
|
| Tailgate closed | Measure the voltage to ground: There should be 5 V or more. |
|
||
| A1 | WHT/BLK | Driver's door lock knob unlocked | Measure the voltage to ground: There should be less than 1 V. |
|
| Driver's door lock knob locked | Measure the voltage to ground: There should be 5 V or more. |
|
||
| A12 | YEL/RED | Front passenger's door lock knob unlocked | Measure the voltage to ground: There should be less than 1 V. |
|
| A2 | WHT/BLU | Left rear door lock knob unlocked (right rear door and tailgate lock knobs must be in the locked position) | Measure the voltage to ground: There should be less than 1 V. |
|
| Right rear door lock knob unlocked (left rear door and tailgate lock knob must be in the locked position) | Measure the voltage to ground: There should be less than 1 V. |
|
||
| Tailgate lock knob unlocked (left and right rear door lock knobs must be in the locked position) | Measure the voltage to ground: There should be less than 1 V. |
|
||
| Left rear door, right rear door, and tailgate lock knobs in the locked position | Measure the voltage to ground: There should be 5 V or more. |
|
||
| A3 | WHT | Driver's door key cylinder unlocked | Measure the voltage to ground: There should be less than 1 V. |
|
| Driver's door key cylinder in neutral | Measure the voltage to ground: There should be 5 V or more. |
|
||
| A4 | WHT/RED | Driver's door key cylinder locked | Measure the voltage to ground: There should be less than 1 V. |
|
| Driver's door key cylinder in neutral | Measure the voltage to ground: There should be 5 V or more. |
|
